13. DMACII
13.8
Execution Time
DMACII execution time is calculated by the following equations (single-speed mode):
Multiple transfers: t [bus clock] = 21+ (11 + b + c) × k
Other than multiple transfers: t [bus clock] = 6 + (26 + a + b + c + d) × m + (4 + e) × n
a: If IMM = 0 (source is immediate data), a = 0; if IMM = 1 (source is data in memory location), a = -1.
b: If UPDS = 1 (source address is incremented), b = 0; if UPDS = 0 (source address is fixed), b = 1.
c: If UPDD = 1 (destination address is incremented), c = 0; if UPDD = 0 (destination address is fixed), c = 1.
d: If OPER = 0 (calculation function is not selected), d = 0;
if OPER = 1 (calculation function is selected) and UPDS = 0 (source is immediate data or fixed address in
memory location), d = 7;
if OPER = 1 (calculation function is selected) and UPDS = 1 (source is incremented address in memory
location), d = 8.
e: If CHAIN = 0 (chain transfer is not selected), e = 0; if CHAIN = 1 (chain transfer is selected), e = 4.
m: If BRST = 0 (single transfer), m = 1; if BRST = 1 (burst transfer), m = a value set in COUNT.
n: If COUNT = 1, n = 0; if COUNT = 2 or more, n = 1.
k: The number of transfers set in bits CNT2 to CNT0 in MOD.
The above equations are approximations. The execution time varies depending on CPU state, bus wait states, and
DMACII index allocation.
The first instruction of the end-of-transfer interrupt routine is executed in the eighth bus clock after the DMACII
transfer is completed.

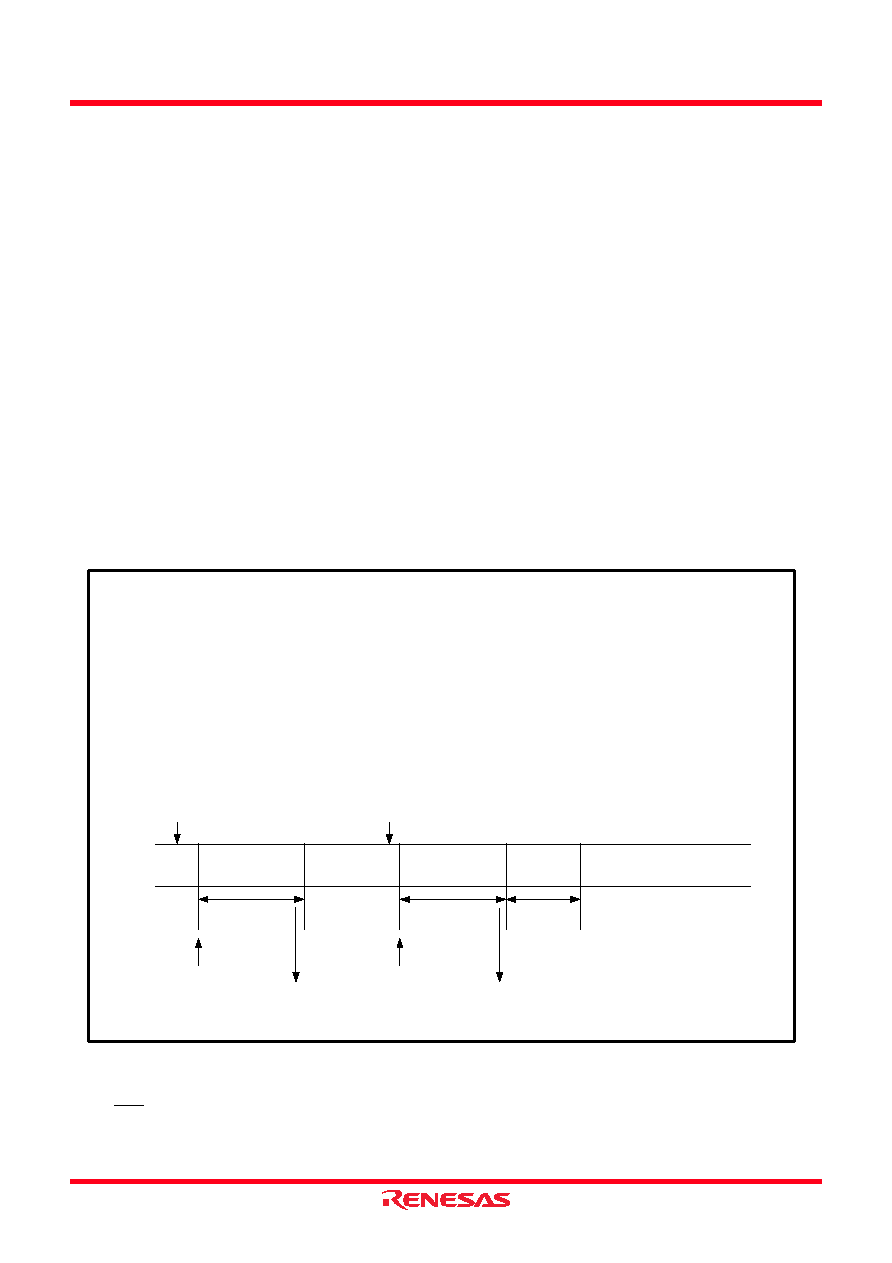

Figure 13.5
Transfer Time
When a DMACII transfer request is generated simultaneously with another request having a higher priority (e.g.,
NMI or watchdog timer), the interrupt with higher priority is acknowledged first, and the pending DMACII transfer
starts after the interrupt sequence of the higher priority interrupt has been completed.
Conditions of the example below:
-single-speed mode
-memory-to-memory transfer (a = -1)
-incremented source address (b = 0)
-fixed destination address (c = 1)
-no calculation function (d = 0)
-no chain transfer (e = 0)
-single transfer (m = 1)
-the end-of-transfer interrupt (transfer counter = 2) occurs
Transfer counter = 2
Transfer counter is decremented.
Transfer counter = 1
7 clocks
DMACII transfer
requested
Program
First DMACII transfer
t = 6 + 26 x 1 + 4 x 1 = 36 bus clocks
Second DMACII transfer t = 6 + 26 x 1 + 4 x 0 = 32 bus clocks
DMACII transfer
requested
First
DMACII transfer
End-of-transfer interrupt
routine executed
32 clocks
Program
Transfer counter = 1
Transfer counter is decremented.
Transfer counter = 0
Second
DMACII transfer
36 clocks
