156
EPSON
S1C88848 TECHNICAL MANUAL
APPENDIX A S5U1C88000P1&S5U1C88816P2 MANUAL (Peripheral Circuit Board for S1C88848)
APPENDIX A S5U1C88000P1&S5U1C88816P2 MANUAL
(Peripheral Circuit Board for S1C88848)
This manual describes how to use the Peripheral Circuit Board for S1C88848 (S5U1C88000P1&S5U1C88816P2).
This circuit board is used to provide emulation functions when it is installed in the ICE (S5U1C88000H5),
a debugging tool for the 8-bit Single Chip Microcomputer S1C88 Family.
The explanation assumes that the S1C88848 circuit data has been downloaded into the S1C88 Family
Peripheral Circuit Board (S5U1C88000P1).
Refer to the "S5U1C88000P Manual" for how to download circuit data into the S1C88 Family Peripheral
Circuit Board (S5U1C88000P1) and common specifications of the board. For details on ICE functions and
how to operate the debugger, refer to the separately prepared manuals.
A.1 Names and Functions of Each Part
The following explains the names and functions of each part of the S5U1C88000P1&S5U1C88816P2.
I/O #2 connector
I/O #1 connector
SW1
LCDVCC
(on the back)
(1)
(2)
(22)
I/O #3 connector
(22)
RESET
MONITOR
L
S5U1C88000P1
S1C88 Family Peripheral circuit board
EPSON
I/O #1
H
OSC3
L
H
OSC1
VSVD
VLCD
LED
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
(3) (4) (5) (6) (7) (8) (9)
(22)
(21)
(10~20)
(22)
Main board (S5U1C88000P1)
Add-on board (S5U1C88816P2)

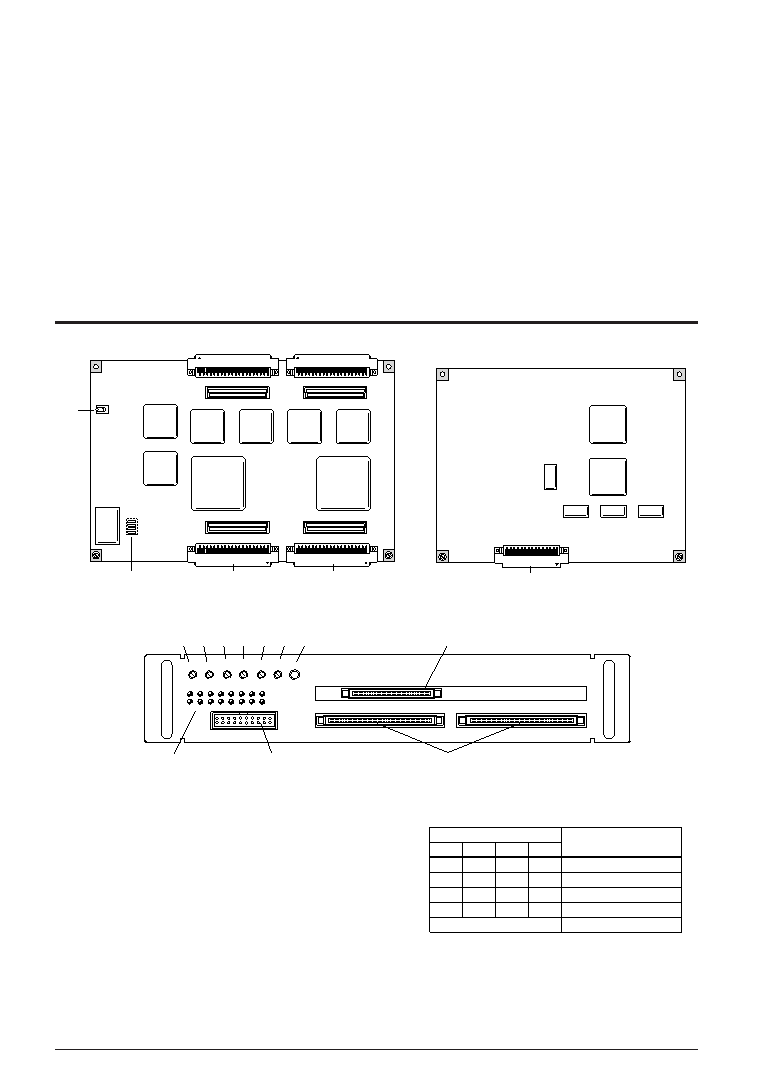

Fig. A.1.1 Board layout
Fig. A.1.2 Panel layout (S5U1C88000P1)
(1) SW1
When downloading circuit data, set this switch to the
"3" position. Otherwise, set to position "1".
(2) LCDVCC (on the back of the S5U1C88000P1 board)
The internal power voltage (VC5) for the LCD driver
can be varied using the DIP switch as shown in
Table A.1.1. Be aware that the VC5 voltage level on
this board is different from that of the actual IC.
(3) VLCD control
Unused.
(4) VSVD control
This control is used for varying the power supply
voltage to confirm the supply voltage detection
(SVD) function. (Refer to Section A.2.2, "Differences
from Actual IC".)
Table A.1.1 Setting LCDVCC
LCDVCC
Other combinations
Setting
VC5 = 6 V
VC5 = 5.75 V
VC5 = 5.5 V
VC5 = 5 V
Not allowed
1
2
3
4
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
The voltage value assumes that the LCD
contrast adjustment register LC0–LC3 is
0FH. There is a need to allow for a
maximum ±6% of error due to the
characteristics of the parts used on this
board.
