S1C62920 TECHNICAL MANUAL
EPSON
69
CHAPTER 7: ELECTRICAL CHARACTERISTICS
(2) Resistance-Oscillation frequency
CR oscillation frequency of the R/F converter disperses in each sampling. Therefore, the initial setting
value of the measurement counter should be decided after considering the fluctuation margin of the CR
oscillation frequency by the reference resistance and sensor resistance to be used for the measurement.
Figures 7.7.2 and 7.7.3 show the resistance-oscillation frequency curves.
Note: The following curves are characteristic when the oscillating capacitor is 2,200 pF.
Typical oscillation frequency is characteristic when VDD = 3.0 V and Ta = 25°C.
Resistance [
]
Oscillation
frequency
[kHz]
1k
0.1
1.0
10
100
10k
100k
1M
10M
TYP
MIN
MAX
VDD = 2.2 to 5.5 V
VSS = 0 V
Ta = -40 to 85°C
Oscillating capacitor: 2,200 pF

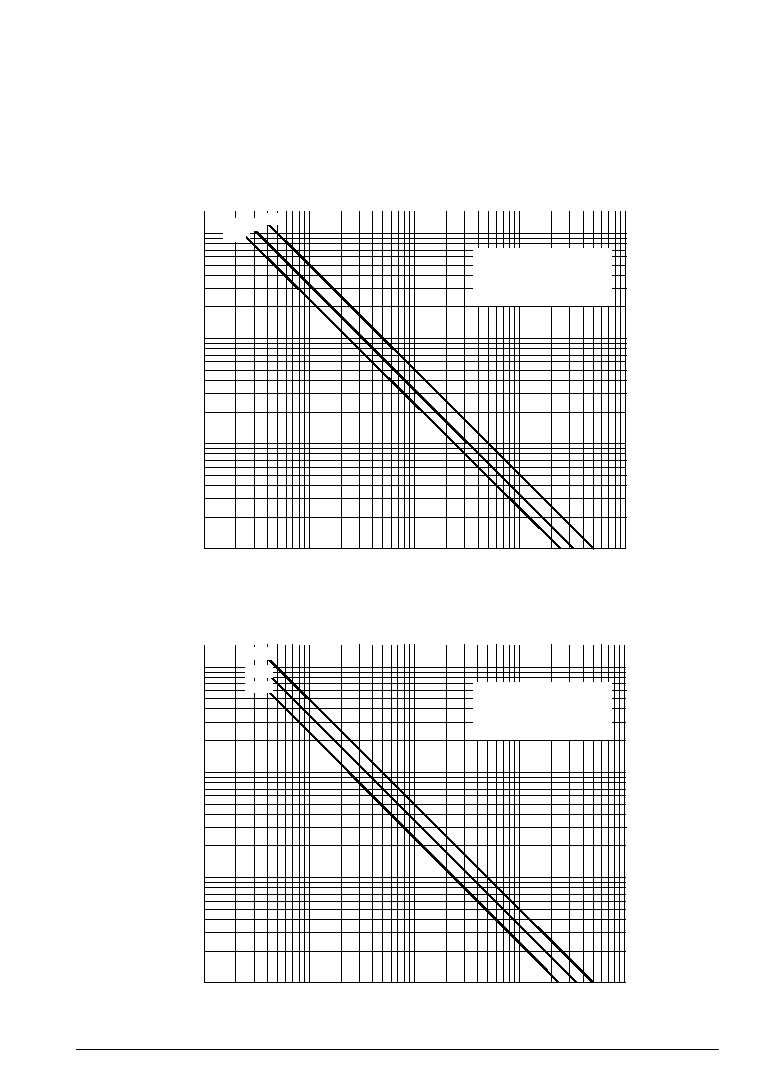

Fig. 7.7.2 Resistance-oscillation frequency curve (REF)
Fig. 7.7.3 Resistance-oscillation frequency curve (SEN0, SEN1, SEN2)
Resistance [
]
Oscillation
frequency
[kHz]
1k
0.1
1.0
10
100
10k
100k
1M
10M
MAX
TYP
MIN
VDD = 2.2 to 5.5 V
VSS = 0 V
Ta = -40 to 85°C
Oscillating capacitor: 2,200 pF
