MC68HC55 Technical Data
Technical Data
MC68HC55
38
Mechanical Data and Ordering Information
Section 6. Mechanical Data and Ordering Information
6.1 Pin Assignments
The MC68HC55 is available in the 16-pin small outline integrated circuit
(SOIC) package.

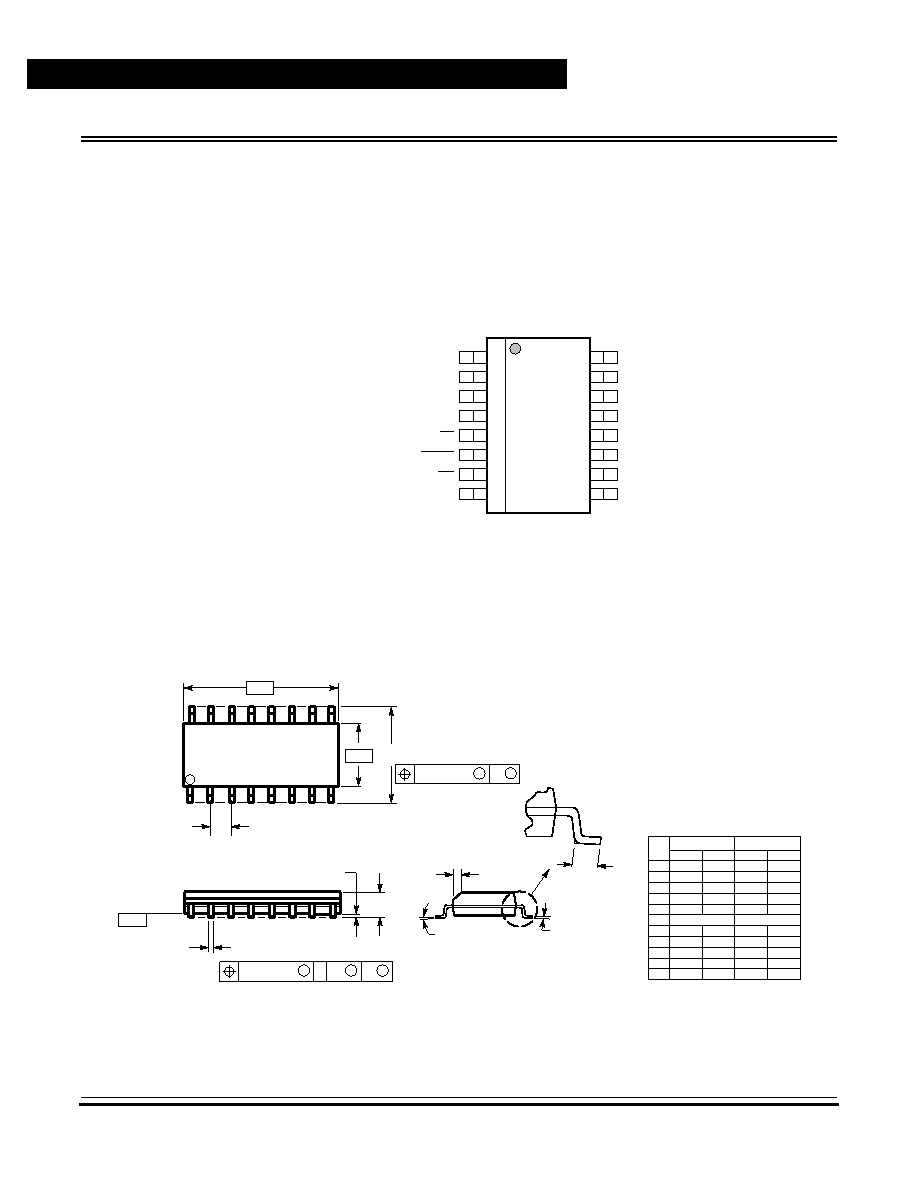

Figure 6-1. MC68HC55CD Pin Assignments
6.2 Mechanical Data
Figure 6-2. 16-pin SOIC Package Dimensions
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VDD
DSI0F
DSI0S
DSI0R
N/C
DSI1F
DSI1S
DSI1R
SCLK
CLK
DI
DO
CS
RESET
GND
16-lead narrow body SOIC, package #751B-05 issue J
INT
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETER.
3. DIMENSIONS A AND B DO NOT INCLUDE
MOLD PROTRUSION.
4. MAXIMUM MOLD PROTRUSION 0.15 (0.006)
PER SIDE.
5. DIMENSION D DOES NOT INCLUDE DAMBAR
PROTRUSION. ALLOWABLE DAMBAR
PROTRUSION SHALL BE 0.127 (0.005) TOTAL
IN EXCESS OF THE D DIMENSION AT
MAXIMUM MATERIAL CONDITION.
18
16
9
SEATING
PLANE
F
J
M
R X 45
G
8 PL
P
±B±
±A±
M
0.25 (0.010)
B S
±T±
D
K
C
16 PL
S
B
M
0.25 (0.010)
A S
T
DIM
MIN
MAX
MIN
MAX
INCHES
MILLIMETERS
A
9.80
10.00
0.386
0.393
B
3.80
4.00
0.150
0.157
C
1.35
1.75
0.054
0.068
D
0.35
0.49
0.014
0.019
F
0.40
1.25
0.016
0.049
G
1.27 BSC
0.050 BSC
J
0.19
0.25
0.008
0.009
K
0.10
0.25
0.004
0.009
M
0
7
0
7
P
5.80
6.20
0.229
0.244
R
0.25
0.50
0.010
0.019
