TA1310N
2001-06-25
72

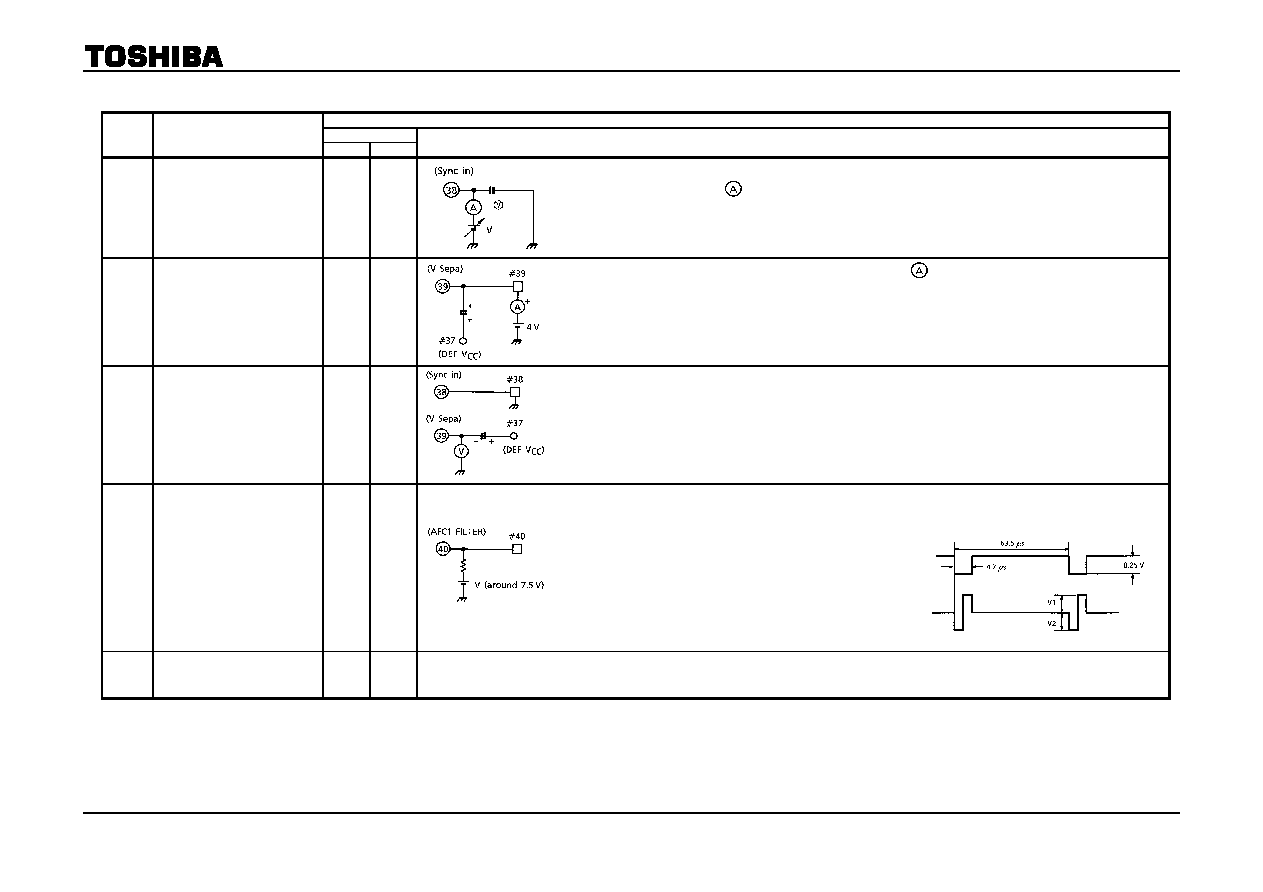

Deflection stage
TEST CONDITIONS (DEF VCC = 9 V, Ta = 25 ± 3°C, BUS DATA = POWER-ON RESET)
SW MODE
NOTE
ITEM
SW34
SW38
MEASUREMENT METHOD
D1
Sync separation Input
Sensitivity Current
OFF
B
When the number of H periods in the #33 (VD out) waveform changes from 297 to 225, increase the voltage from
3 V and measure the value at
in the diagram.
D2
V separation Filter Pin
Source Current
OFF
B
When the subaddress (0D) D1 is set to (1), measure the value at
in the diagram.
D3
V Separation Level
OFF
B
When #38 (Sync in) is connected to GND, measure the #39 (VSEP FILTER) voltage.
D4
H AFC Phase Detection
Current
H AFC Phase
Detection Current Ratio
OFF
A
Set the voltage to around 7.5 V, equivalent to when #40 (AFC1 FILTER) has no load. When a signal as shown in
the diagram below is input to #38 (Sync in) from TG7, calculate V1 and V2 using the #40 waveform.
IDET = V1 ÷ 1 k (A)
IDET = (V1 / V2 1) × 100 (%)
D5
Phase Detection Stop
Period
OFF
A
Input a composite video signal to #38 and measure the V mask period of the #40 (AFC1 FILTER) waveform.
