參數資料
型號： TA1317ANG
元件分類： 偏轉
英文描述： HORIZ/VERT DEFLECTION IC, PDIP24
封裝： 0.300 INCH, 1.78 MM PITCH, PLASTIC, SDIP-24
文件頁數： 1/59頁
文件大?。?/td> 1033K
代理商： TA1317ANG

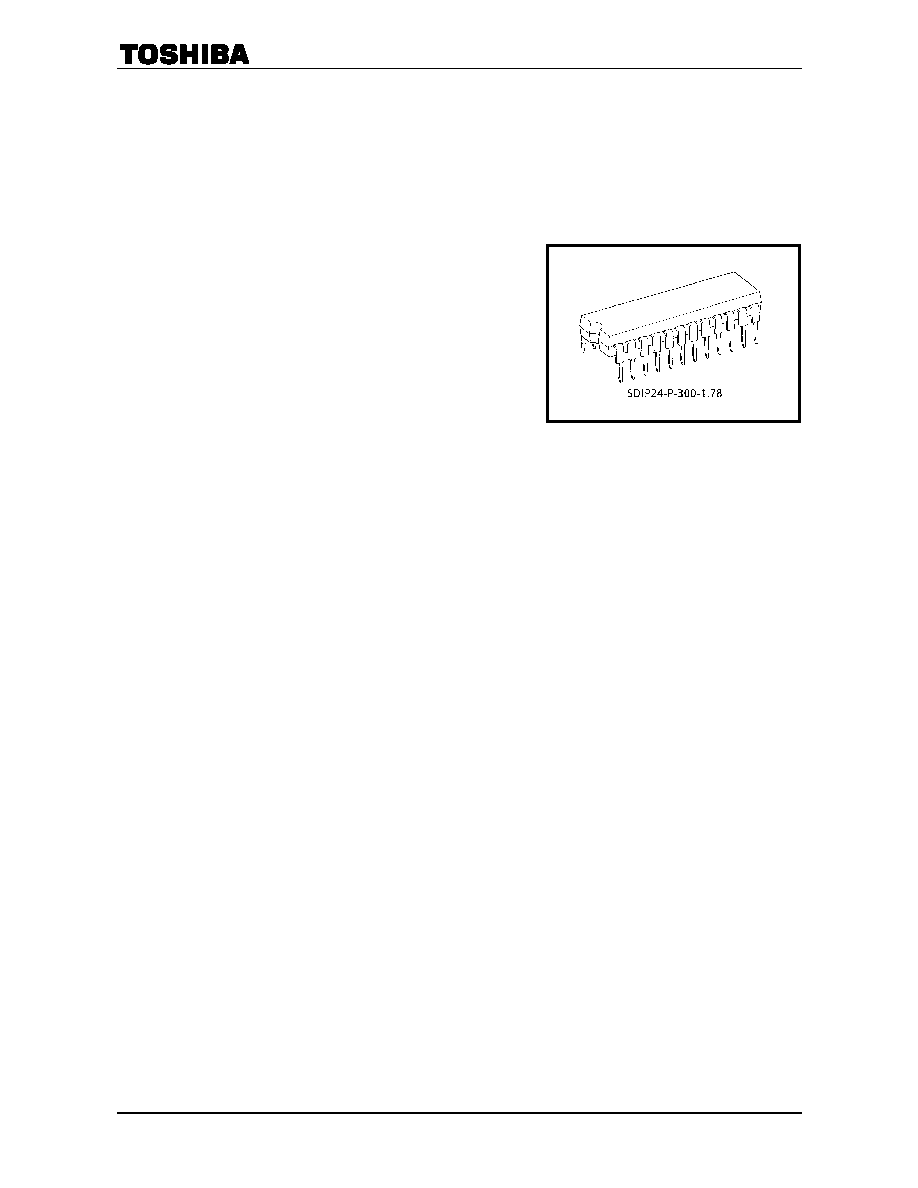

TA1317ANG
2005-08-18
1
TOSHIBA Bipolar Linear Integrated Circuit
Silicon Monolithic
TA1317ANG
Deflection Processor IC for TV
TA1317ANG is a deflection processor IC for a large and wide
picture tube.
TA1317ANG incorporates an EW, a vertical distortion
correction circuit and a dynamic focus correction circuit. It can
control various functions via I2C BUS line.
Features
Vertical drive (AC/DC-coupling)
Picture height adjustment
Vertical shift adjustment
Vertical symmetry correction
Vertical linearity correction
Vertical S correction
Vertical integral correction
Vertical/Horizontal EHT compensation
EW drive (parabola/PWM output)
Picture width
EW trapezium correction
EW parabola correction
EW corner correction (top only/bottom only/top & bottom)
EW S correction
Center curve correction (SAW/PAR)
Parabola output for horizontal and vertical dynamic focus (H/V output independently)
Horizontal and vertical dynamic focus phase adjustment
Horizontal and vertical dynamic focus amplitude adjustment
Horizontal dynamic focus curve characteristic adjustment
V-ramp limiter circuit
Analog blanking output
Weight: 1.22 g (typ.)
