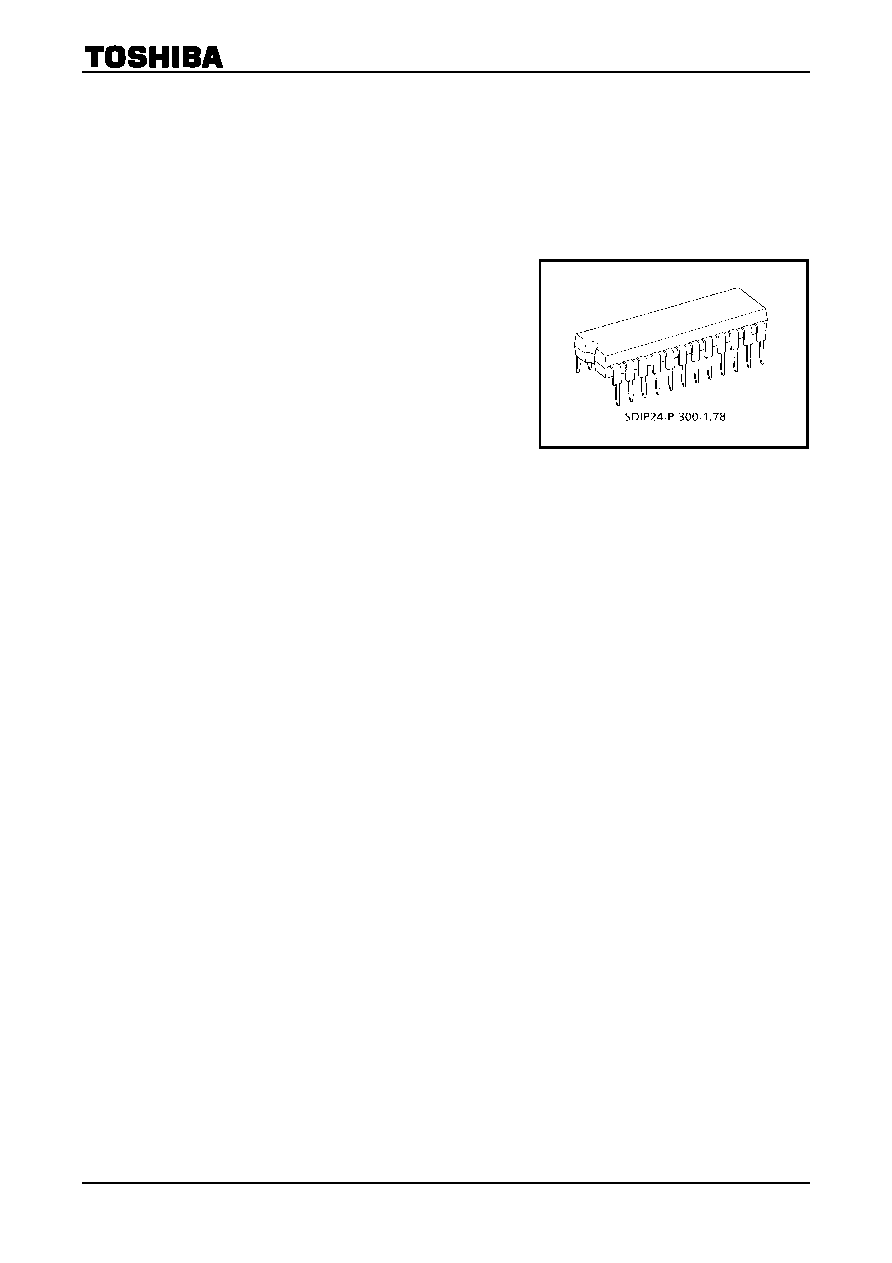

TA1317AN
2002-09-06
1
TOSHIBA Bipolar Linear Integrated Circuit
Silicon Monolithic
TA1317AN
Deflection Processor IC for TV
TA1317AN is a deflection processor IC for a large and wide
picture tube.
TA1317AN incorporates EW, vertical distortion correction
circuit and dynamic focus correction circuit. It can control various
functions via I2C BUS line.
Features
Vertical drive (AC/DC-coupling)
Picture height adjustment
Vertical shift adjustment
Vertical symmetry correction
Vertical linearity correction
Vertical S correction
Vertical integral correction
Vertical/Horizontal EHT compensation
EW drive (parabola/PWM output)
Picture width
EW trapezium correction
EW parabola correction
EW corner correction (top only/bottom only/top&bottom)
EW S correction
Center curve correction (SAW/PAR)
Parabola output for horizontal and vertical dynamic focus (H/V output independently)
Horizontal and vertical dynamic focus phase adjustment
Horizontal and vertical dynamic focus amplitude adjustment
Horizontal dynamic focus curve characteristic adjustment
V-ramp limiter circuit
Analog blanking output
Weight: 1.22 g (typ.)
