參數資料
型號: MB95F136JBWPF-GE1
廠商: Fujitsu Semiconductor America Inc
文件頁數: 59/64頁
文件大?。?/td> 0K
描述: IC MCU 32KB FLASH 28SOP
標準包裝: 1
系列: F²MC MB95130MB
核心處理器: F²MC-8FX
芯體尺寸: 8-位
速度: 16MHz
連通性: LIN,SIO,UART/USART
外圍設備: LVD,POR,PWM,WDT
輸入/輸出數: 19
程序存儲器容量: 32KB(32K x 8)
程序存儲器類型: 閃存
RAM 容量: 1K x 8
電壓 - 電源 (Vcc/Vdd): 2.4 V ~ 5.5 V
數據轉換器: A/D 8x8/10b
振蕩器型: 外部
工作溫度: -40°C ~ 105°C
封裝/外殼: 28-SOP
包裝: 管件
其它名稱: 865-1075
MB95130MB Series
62

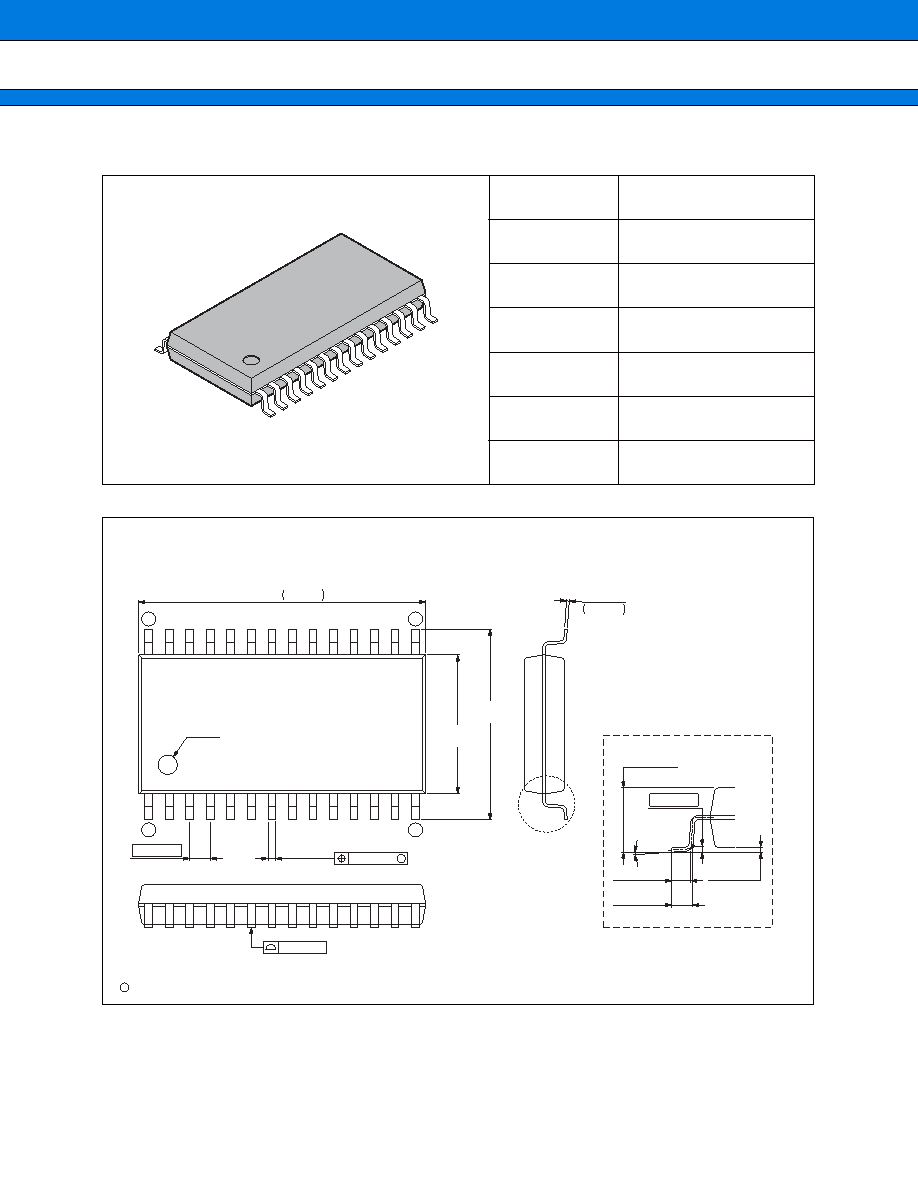

■ PACKAGE DIMENSION
Please confirm the latest Package dimension by following URL.
http://edevice.fujitsu.com/fj/DATASHEET/ef-ovpklv.html
(Continued)
28-pin plastic SOP
Lead pitch
1.27 mm
Package width
×
package length
8.6
× 17.75 mm
Lead shape
Gullwing
Sealing method
Plastic mold
Mounting height
2.80 mm MAX
Weight
0.82 g
Code
(Reference)
P-SOP28-8.6
×17.75-1.27
28-pin plastic SOP
(FPT-28P-M17)
C
2002 FUJITSU LIMITED F28048S-c-3-4
.699 –.008
+.010
–0.20
+0.25
17.75
1
1.27(.050)
8.60±0.20
(.339±.008)
11.80±0.30
(.465±.012)
M
0.13(.005)
14
15
28
0.10(.004)
0.47±0.08
(.019±.003)
INDEX
"A"
–0.04
+0.03
0.17
.007
+.001
–.002
0~8
0.25(.010)
Details of "A" part
(Mounting height)
2.65±0.15
(.104±.006)
0.20±0.15
(.008±.006)
(Stand off)
0.80±0.20
(.031±.008)
0.88±0.15
(.035±.006)
*1
*2
Dimensions in mm (inches).
Note: The values in parentheses are reference values.
Note 1) *1 : These dimensions include resin protrusion.
Note 2) *2 : These dimensions do not include resin protrusion.
Note 3)Pins width and pins thickness include plating thickness.
Note 4) Pins width do not include tie bar cutting remainder.
