參數資料
型號： ATTINY2313A-SUR
廠商： Atmel
文件頁數： 172/172頁
文件大?。?/td> 0K
描述： MCU AVR 2KB FLASH 20MHZ 20SOIC
產品培訓模塊： tinyAVR Introduction
標準包裝： 1,000
系列： AVR® ATtiny
核心處理器： AVR
芯體尺寸： 8-位
速度： 20MHz
連通性： I²C，SPI，UART/USART
外圍設備： 欠壓檢測/復位，POR，PWM，WDT
輸入/輸出數： 18
程序存儲器容量： 2KB（1K x 16）
程序存儲器類型： 閃存
EEPROM 大?。?/td> 128 x 8
RAM 容量： 128 x 8
電壓 - 電源 (Vcc/Vdd)： 1.8 V ~ 5.5 V
振蕩器型： 內部
工作溫度： -40°C ~ 85°C
封裝/外殼： 20-SOIC（0.295"，7.50mm 寬）
包裝： 帶卷 (TR)
其它名稱： ATTINY2313A-SUR-ND
99
8246B–AVR–09/11
ATtiny2313A/4313

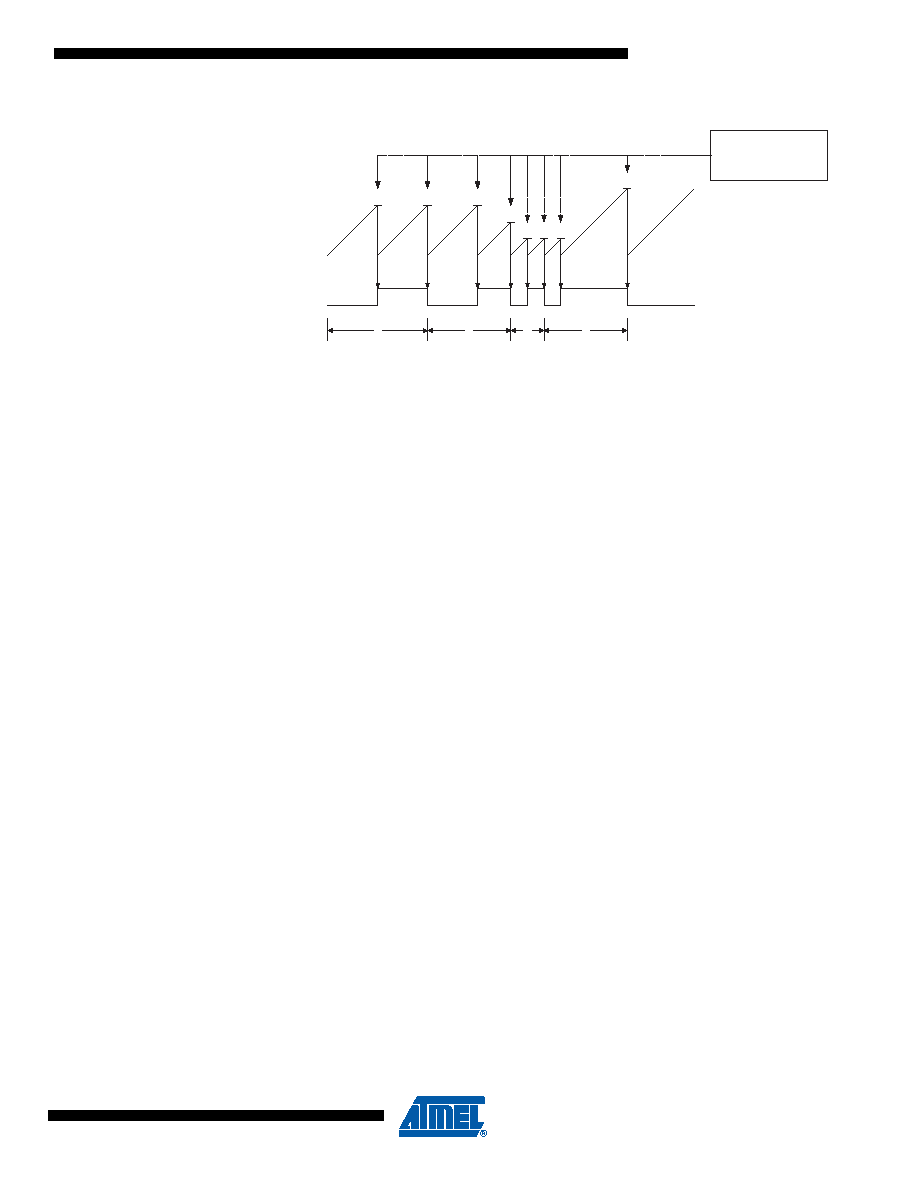

Figure 12-6. CTC Mode, Timing Diagram
An interrupt can be generated at each time the counter value reaches the TOP value by either
using the OCF1A or ICF1 flag according to the register used to define the TOP value. If the inter-
rupt is enabled, the interrupt handler routine can be used for updating the TOP value. However,
changing the TOP to a value close to BOTTOM when the counter is running with none or a low
prescaler value must be done with care since the CTC mode does not have the double buffering
feature. If the new value written to OCR1A or ICR1 is lower than the current value of TCNT1, the
counter will miss the compare match. The counter will then have to count to its maximum value
(0xFFFF) and wrap around starting at 0x0000 before the compare match can occur. In many
cases this feature is not desirable. An alternative will then be to use the fast PWM mode using
OCR1A for defining TOP (WGM13:0 = 15) since the OCR1A then will be double buffered.
For generating a waveform output in CTC mode, the OCFA output can be set to toggle its logical
level on each compare match by setting the Compare Output mode bits to toggle mode
(COM1A1:0 = 1). The OCF1A value will not be visible on the port pin unless the data direction
for the pin is set to output (DDR_OCF1A = 1). The waveform generated will have a maximum
frequency of f
OC1A = fclk_I/O/2 when OCR1A is set to zero (0x0000). The waveform frequency is
defined by the following equation:
The N variable represents the prescaler factor (1, 8, 64, 256, or 1024).
As for the Normal mode of operation, the TOV1 flag is set in the same timer clock cycle that the
counter counts from MAX to 0x0000.
12.8.3
Fast PWM Mode
The fast Pulse Width Modulation or fast PWM mode (WGM13:0 = 5, 6, 7, 14, or 15) provides a
high frequency PWM waveform generation option. The fast PWM differs from the other PWM
options by its single-slope operation. The counter counts from BOTTOM to TOP then restarts
from BOTTOM. In non-inverting Compare Output mode, the Output Compare (OC1x) is set on
the compare match between TCNT1 and OCR1x, and cleared at TOP. In inverting Compare
Output mode output is cleared on compare match and set at TOP. Due to the single-slope oper-
ation, the operating frequency of the fast PWM mode can be twice as high as the phase correct
and phase and frequency correct PWM modes that use dual-slope operation. This high fre-
quency makes the fast PWM mode well suited for power regulation, rectification, and DAC
applications. High frequency allows physically small sized external components (coils, capaci-
tors), hence reduces total system cost.
TCNTn
OCnA
(Toggle)
OCnA Interrupt Flag Set
or ICFn Interrupt Flag Set
(Interrupt on TOP)
1
4
Period
2
3
(COMnA1:0 = 1)
f
OCnA
f
clk_I/O
2 N
1
OCRnA
+
()
---------------------------------------------------
=
