Data Sheet E0344N10 (Ver. 1.0)
30
μ
PD45128163
12.2 Precharge Termination
12.2.1 Precharge Termination in READ Cycle
During a read cycle, the burst read operation is terminated by a precharge command.
When the precharge command is issued, the burst read operation is terminated and precharge starts.
The same bank can be activated again after t
RP
from the precharge command.
To issue a precharge command, t
RAS
must be satisfied.
When /CAS latency is 2, the read data will remain valid until one clock after the precharge command.

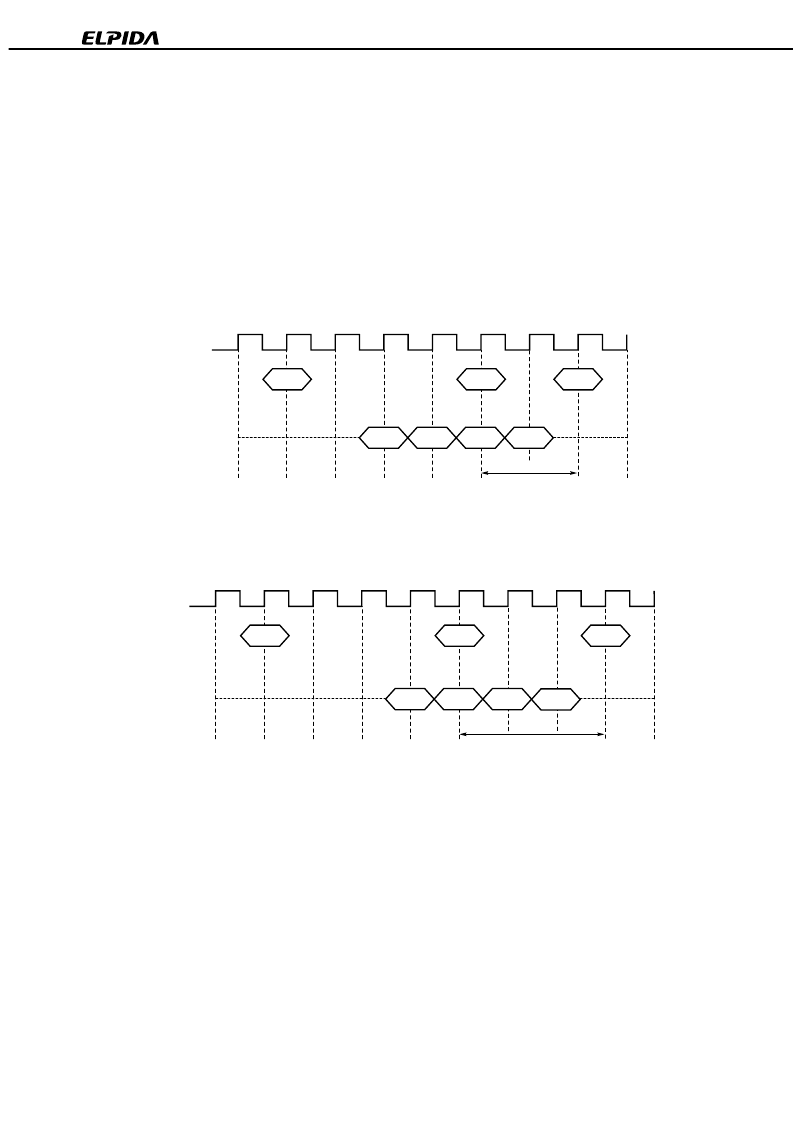

READ
CLK
T0
T2
T1
T3
T4
T5
T6
T7
Burst length = X, /CAS latency = 2
Q1
DQ
Command
Q2
Q3
Q4
ACT
t
RP
PRE
Hi-Z
(t
RAS
must be satisfied)
When /CAS latency is 3, the read data will remain valid until two clocks after the precharge command.
READ
CLK
T0
T2
T1
T3
T4
T5
T6
T7
Burst length = X, /CAS latency = 3
DQ
Command
Q1
Q2
Q3
ACT
t
RP
PRE
Hi-Z
T8
Q4
(t
RAS
must be satisfied)
