Microprocessor Interface
Data reads can be direct, indirect or FIFO-like depending on
the data that is being read. The status register is read
directly at direct (external) address 3, ADD(2:0) = 3.
Readback of internal registers and memories is indirect. The
16-bit indirect (internal) address of the desired read source
is first written to direct (external) address 3, ADD(2:0) = 3, to
select the data. The data can then be read at direct
(external) addresses ADD(2:0) = 0 and 1 (bits 15:0 at
address 0 and 31:16 at address 1). The data types available
via the indirect read are listed in the Tables of Indirect Read
Address (IRA) Registers. (Note that the
μ
PHold bit
contained in the target register at Indirect Write Address
(IWA) = *00Ah must be set to suspend the filter compute
engine before the coefficient RAM and instruction bit fields
can be written to or read from.)
The ISL5216 output data from the four channels is available
through the microprocessor interface as well as from the
serial data outputs. A FIFO-like interface is used to read the
output data through the microprocessor interface. When new
output data is available, it is loaded into a FIFO in a user
programmed order (for details on the programming order see
Global Write Address (GWA) = F820h - F83Fh). It can then
be read, 16 bits at a time, at direct address 2, ADD(2:0) = 2.
At the end of each read, the FIFO counter is advanced to the
next location. This allows a DMA controller to read all of the
data with successive reads to a single direct address. No
writes or other interaction is required. The FIFO counter is
reset and reloaded by each interrupt signal, see GWA
F802h. New data in the FIFO is also indicated in the status
register located at direct address ADD(2:0) = 3 if a polled
mode is preferred. The eight data types available, for each of
the four channels, via this interface are: I(23:8), I(7:0)+8
Zeroes, Q(23:8), Q(7:0)+8 Zeroes, Mag(23:8), Mag(7:0)+8
Zeroes, Phase (15:0), and AGC (15:0). The upper bits of I,
i.e., I(23:8), and Q, i.e., Q(23:8), are not rounded to 16 bits.
This interface can read the data from all the channels that
are synchronized. However, because a common FIFO is
used and the FIFO is reset and reloaded by each interrupt, it
cannot be used for asynchronous channels.

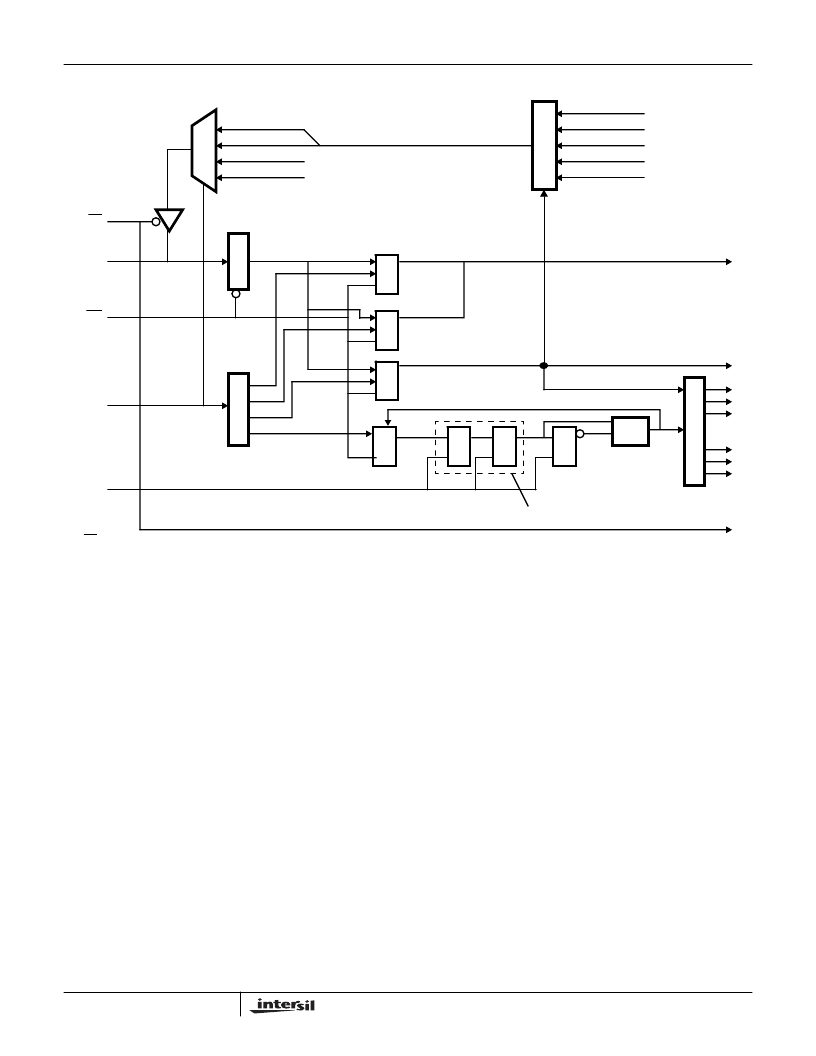

The direct address map for the microprocessor interface is
shown in the Table of Microprocessor Direct Read/Write
Addresses and the procedures for reading and writing to this
interface are provided below. The bit field details for each
indirect read and write address is provided in the Table of
Indirect Read Address (IRA) Registers, Tables of Indirect
Write Address (IWA) Registers and Tables of Global Write
Address (GWA) Registers in the following sections.
M
3
R
E
G
>
R
E
G
>
F
F
>
F
F
>
F
F
>
F
F
>
R
E
G
>
AND
M
U
X
E
S
D
E
C
O
D
E
RD
P(15:0)
WR
A(2:0)
CLK
= 0
= 1
= 2 or 3
= 2
en
en
en
15:0
31:0
31:16
15:0
31:16
31:0
INTERNAL READ DATA BUS
INTERNAL
READ SIGNAL
SYNC’d
WR
TO TARGET
REGISTERS
INTERNAL
ADDRESS BUS
INTERNAL
WRITE DATA BUS
SPECIAL LOW
METASTABILITY
CELL
RST
CE
(GATING NOT SHOWN)
L
A
T
C
H
FROM OUTPUT FIFO
STATUS
G
A
T
I
N
G
ISL5216
