www.ti.com
FEATURES
Quad-Port Power Management With Integrated
Switches and Sense Resistors
High Power PoE up to 25 W at PD Input
Operating from a 53-V Minimum Input Power
Rail
Wide Range Single Supply: 21.5 V up to 57 V
I
CUT
= 615 mA, I
LIM
= 650 mA Nominal
IEEE 802.3af Compatible
Individual Port 15-bit A/D Converters
Auto, Semi-Auto and Power Management
Modes
Controlled Current Ramp Power-Up/Down for
EMI Reduction
Over-Temperature Protection
DC Disconnect Detection, Supports AC
Disconnect
High-Speed 400-kHz I
2
C Interface
Supports Legacy PD Detection
PowerPAD Package
Comprehensive Power Management Software
Available for MPS430 Microcontroller
APPLICATIONS
Medical/Industrial Applications at 24 V
High Power Ethernet Enterprise Switches
SOHO Hubs, Ethernet Hubs
Ethernet High Power Mid-Spans
High Power PSE Injectors
DESCRIPTION
The TPS23841 is a high-power, wide voltage range,
quad-port
sourcing
equipment
TPS23841 can provide up to 570 mA per port over a
wide temperature range (-40
°
C to +125
°
C). Each
port may operate from 21.5 V up to 57 V. The
integrated
output
eliminates
components per port (MOSFET and sense resistor)
and survives 100-V transients. Four individual 15-bit
A/D converters are used to measure signature
resistance, voltage, current and die temperature,
resulting in a simple and robust PSE solution. The
TPS23841 comes with a comprehensive software
solution to meet the most demanding applications
which can serve as a core for all PoE system
designs.

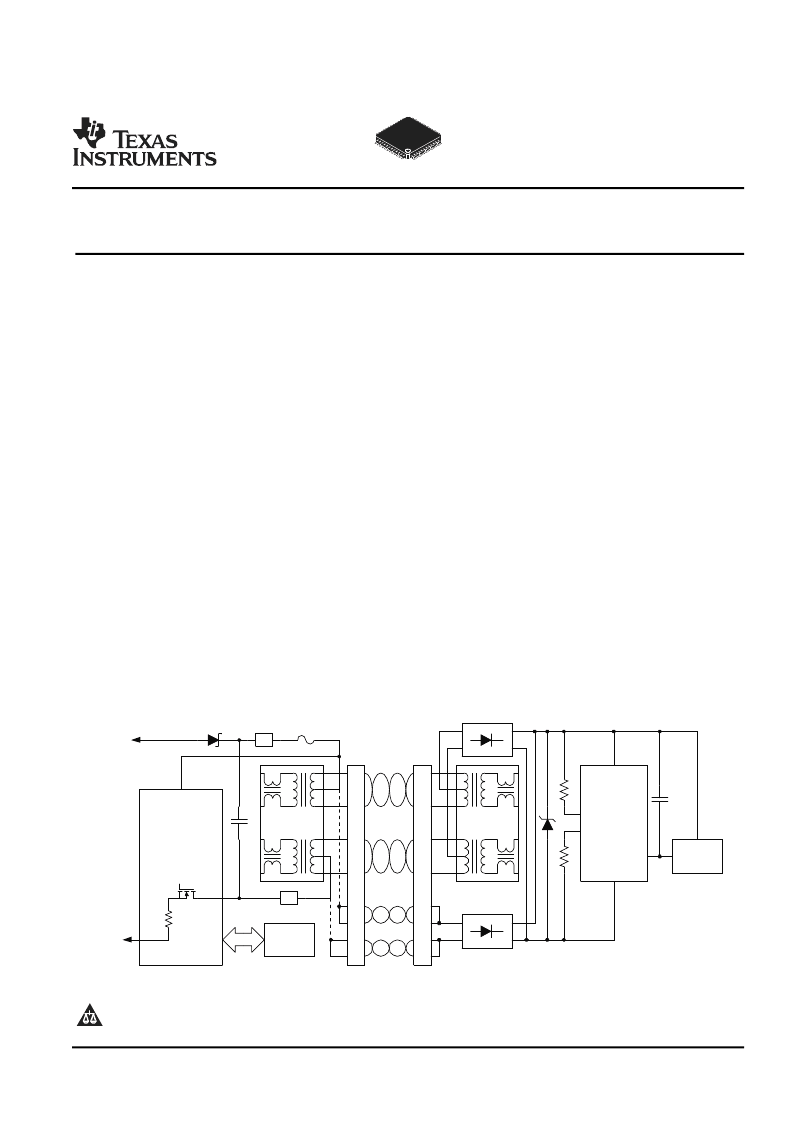

TYPICAL APPLICATION
F1
D1
Z
Z
RETx
Nx
Px
TPS23841
CLASS
DET
VDD
VSS
RTN
TPS2376-H
Optional
MSP430
Micro
DC/DC
Converter
SDA_O
SDA_I
SCL
+55V
V
POE
RTN
High-current
PoEXfmr
High-current
PoEXfmr
3
6
1
2
7
8
RJ45
4
5
3
6
1
2
7
8
RJ45
4
5
TX
RX
TX
RX
Up to 100m
of CAT5A
FB1
FB2
C1
PSE
PD
TPS23841
SLUS745–NOVEMBER 2006
HIGH-POWER, WIDE VOLTAGE RANGE, QUAD-PORT ETHERNET POWER SOURCING
EQUIPMENT MANAGER
manager.
The
two
external
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PowerPAD is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Copyright 2006, Texas Instruments Incorporated
