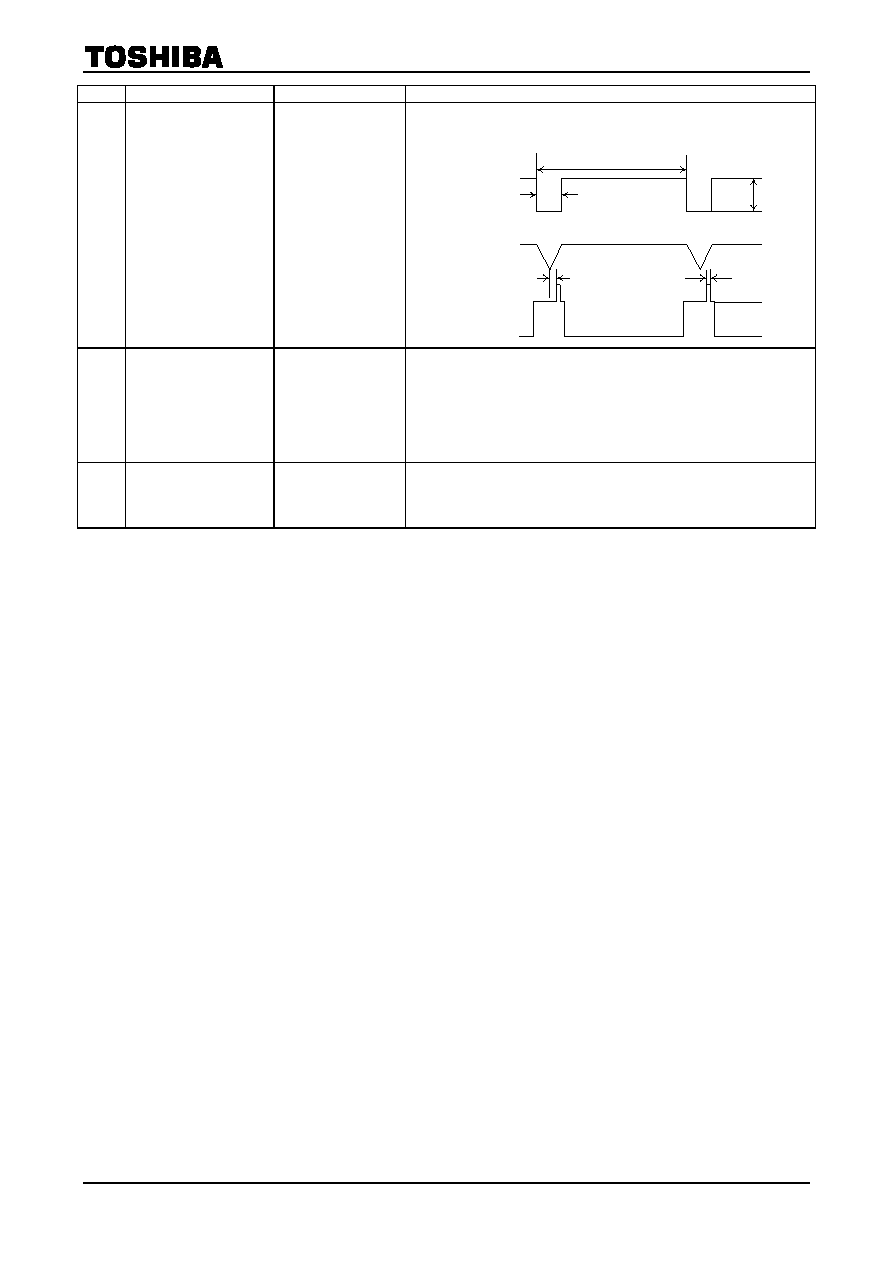

TB1261F/TB1262F
2002-6-30 54 / 66
Note
Items/Symbols
Bus
Bus conditions
conditions
Measurement methods
D16
Gate Pulse Start
Phase
/ PHGP
Gate Pulse Width
/ WGP
All: Preset
(1) Input a composite sync signal into Pin61.
(2) According to the following figure, measure "PHGP" &
"WGP".
Sync in(Pin61)
H AFC(Pin43)
SCP OUT(Pin37)
63.5
s
4.7
s
PH
GP
W
GP
5V
0V
0.25V
D18
Vertical Free-run
Frequency
/ FVAUFR50
/ FVAUFR60
/ FV50FR
/ FV60FR
V-Freq:
0/1/2
Others: Preset
(1) Input a 50Hz composite sync signal into Pin61.
(2) Set V-Freq to 0.
(3) For no input, measure the frequency of V Ramp at Pin46,
that is "FVAUFR50".
(4) Input a 60Hz composite sync signal into Pin61.
(5) Repeat (2)&(3), that is “FVAUFR60”
(6) Set V-Freq. To 1/2, repeat (2), that is "FV50FR" / "FV60FR".
D19
Gate Pulse
V-Masking Period
/ T50GPM
/ T60GPM
All: Preset
(1) Input a 50Hz/60Hz composite sync signal into Pin61.
(2) Measure "T50GPM" / "T60GPM" at Pin37. (cf. Fig.D19)
