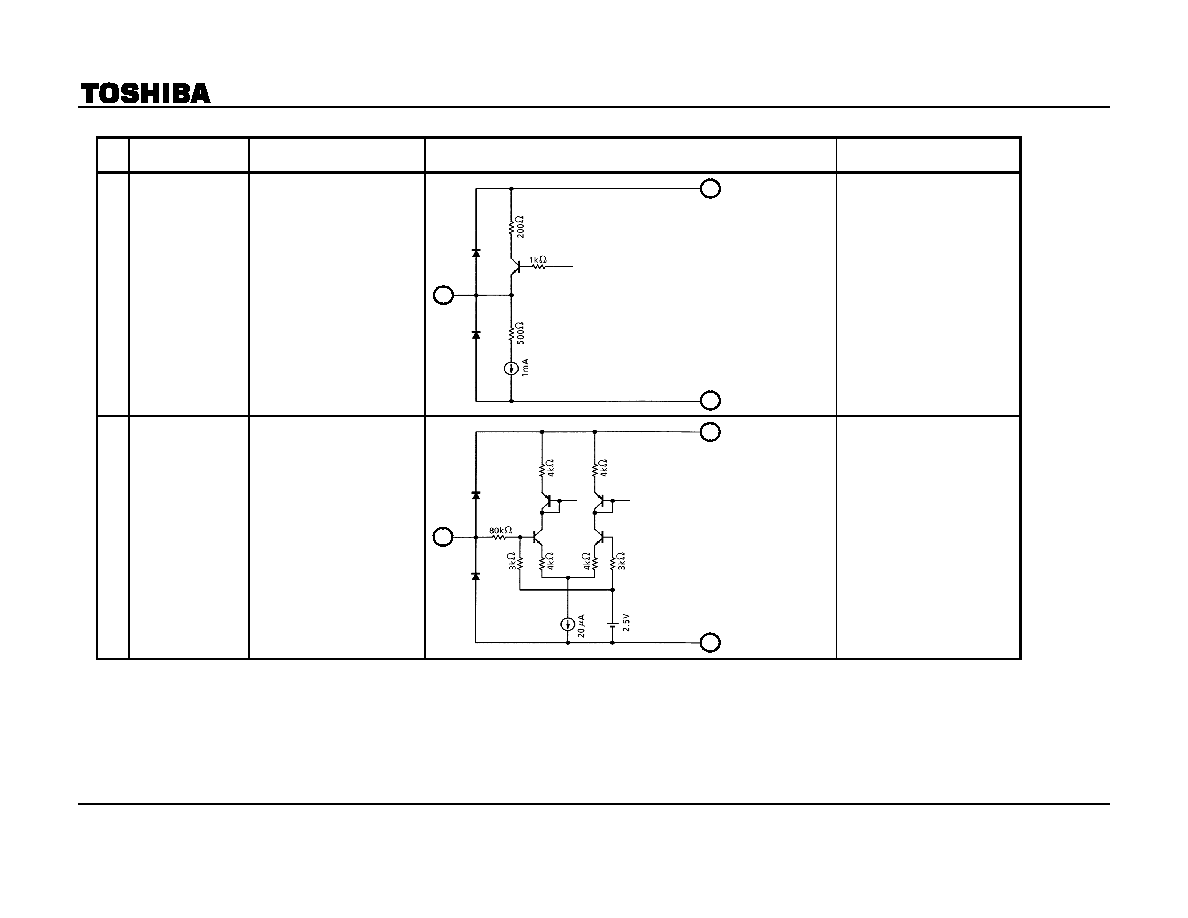

TA1275BFNG
2005-03-14
8
Pin
No.
Pin Name
Function
Interface Circuit
Input/Output Signal
9
R-Y OUT
The output pin for demodulated
R-Y signal. Standard output level
is 0.7 Vp-p with a standard color
bar signal.
R-Y processor has an LPF to
eliminate the carrier components.
9
18
15
―
10
R-Y BLACK
CONTROL
The pin for controlling the black
offset level. Adjusting range is
within ±30 mV. (This pin should
be opened in the case of use
with the TB1309as the TB1309
has an IIC BUS control for
SECAM black alignment.)
10
18
15
―
