TA1275BFNG
2005-03-14
7

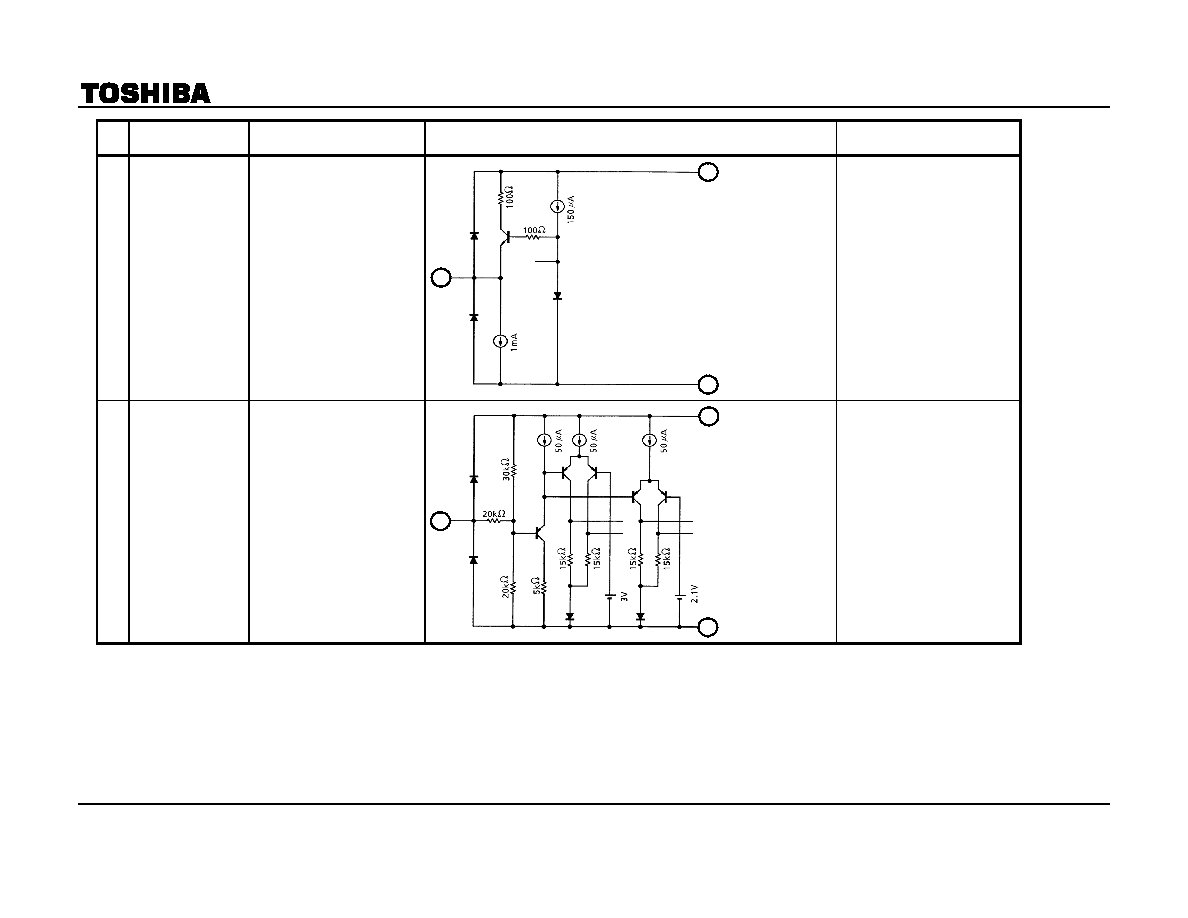

Pin
No.
Pin Name
Function
Interface Circuit
Input/Output Signal
7
Y OUT
BELL MON
The output pin for the Y signal.
The standard output level is 1.0
Vp-p. The 5.5 MHz trap filter and
delay line on the Y signal
processing is controlled by the
switch on Pin 8.
The output signal of the bell filter
can be monitored on this pin by
switching Pin 20 for testing.
7
15
18
―
8
DL MODE SW
The pin for controlling the Y
processing mode.
To VCC
:
5.5 MHz trap
Open
:
5.5 MHz
trap + DL
To GND :
DL
8
18
15
―
