參數資料
型號: ICS8S89834AKILF
廠商: IDT, Integrated Device Technology Inc
文件頁數: 16/17頁
文件大?。?/td> 0K
描述: IC CLOCK MUX 2:4 1GHZ 16-VFQFN
標準包裝: 100
系列: HiPerClockS™
類型: 多路復用器
電路數: 1
比率 - 輸入:輸出: 2:4
差分 - 輸入:輸出: 無/是
輸入: LVCMOS,LVTTL
輸出: ECL,LVPECL
頻率 - 最大: 1GHz
電源電壓: 2.375 V ~ 3.63 V
工作溫度: -40°C ~ 85°C
安裝類型: 表面貼裝
封裝/外殼: 16-VFQFN 裸露焊盤
供應商設備封裝: 16-VFQFPN(3x3)
包裝: 托盤
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
8
2010 Integrated Device Technology, Inc.

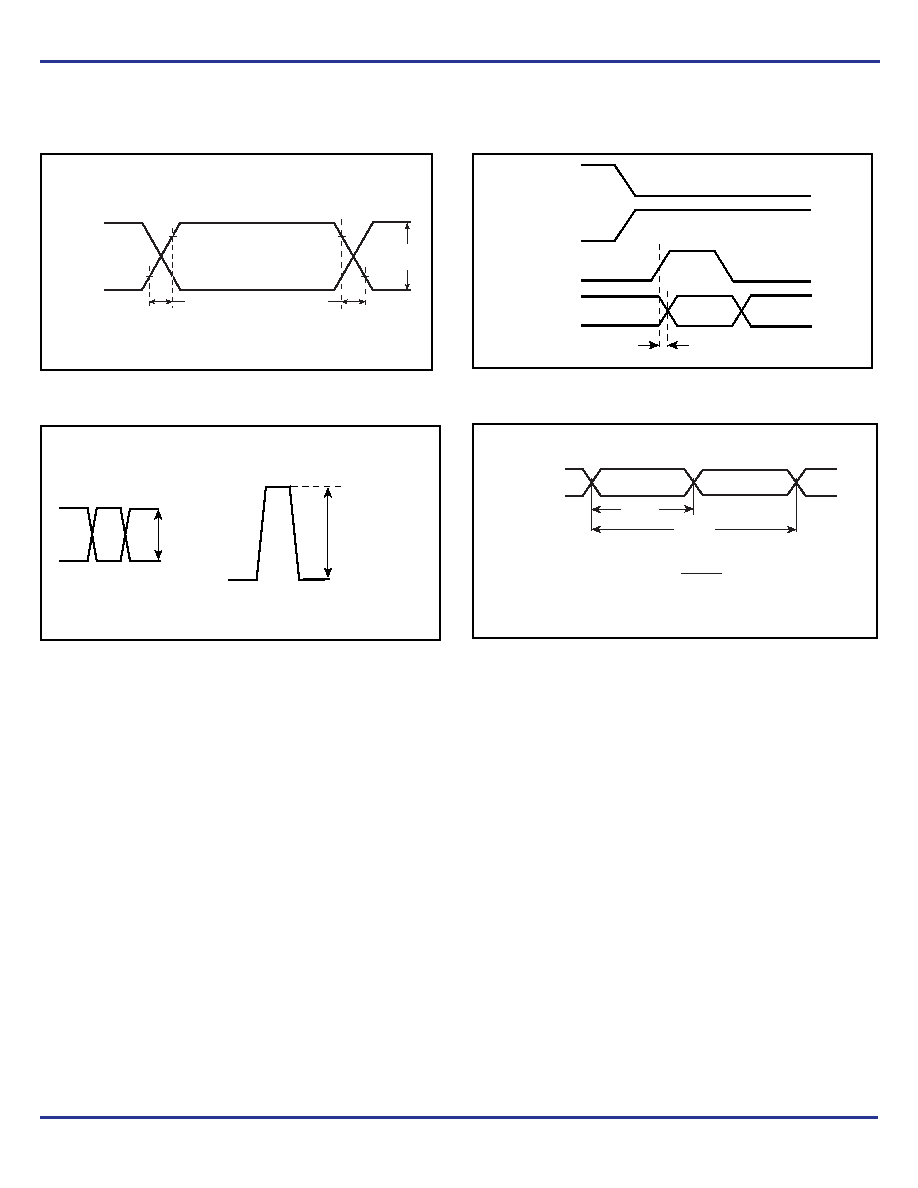

Parameter Measurement Information, continued
Output Rise/Fall Time
Differential Output Voltage Swing
Switch Over
Output Duty Cycle/Pulse Width/Period
Application Information
Recommendations for Unused Input and Output Pins
Inputs:
IN Inputs
For applications not requiring the use of a clock input, it can be left
floating. Though not required, but for additional protection, a 1k
resistor can be tied from the IN input to ground.
LVCMOS Control Pins
All control pins have internal pullups; additional resistance is not
required but can be added for additional protection. A 1k
resistor
can be used.
Outputs:
LVPECL Outputs
All unused LVPECL outputs can be left floating. We recommend that
there is no trace attached. Both sides of the differential output pair
should either be left floating or terminated.
20%
80%
20%
tR
t F
VOUT
nQ0:nQ3
Q0:Q3
V
IN, VOUT
800mV
(typical)
V
DIFF_IN, VDIFF_OUT
1600mV
(typical)
tsw
nQ0:nQ3
Q0:Q3
SEL
IN2
IN1
t
PW
t
PERIOD
t
PW
t
PERIOD
odc =
x 100%
nQ0:nQ3
Q0:Q3
