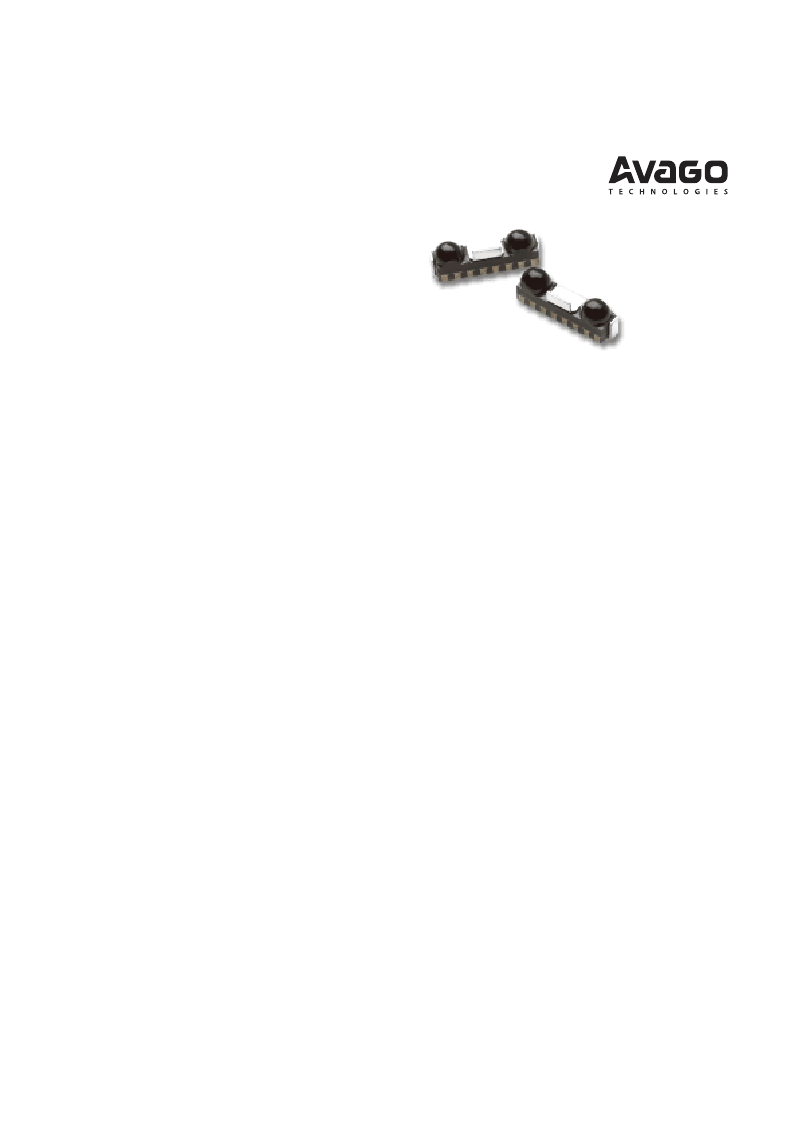

Description
The HSDL-3203 is a miniature low cost infrared trans-
ceiver module that provides the interface between
logic and infrared (IR) signals for through air, serial,
half-duplex IR data link. The module is compliant to
IrDA Physical Layer Specifications version 1.4 Low
Powerfrom 9.6 kbit/s to 115.2 kbit/s with
extended link distance and it is IEC 825-Class 1 eye
safe.
The HSDL-3203 can be shutdown completely to
achieve very low power consumption. In the shutdown
mode, the PIN diode will be inactive and thus produc-
ing very little photocurrent even under very bright
ambient light. Such features are ideal for battery
operated handheld products.
Features
Fully compliant to IrDA 1.4 low power specification
from 9.6 kbit/s to 115.2 kbit/s
Low power operation at extended link distance of 50 cm
Miniature package
— Height: 1.95 mm
— Width: 8.00 mm
— Depth: 3.10 mm
Guaranteed temperature performance, –20 to +70C
— Critical parameters are guaranteed over
temperature and supply voltage
Low power consumption
—Low shutdown current (10 nA typical)
—Complete shutdown of TXD, RXD, and PIN diode
Withstands > 100 mV
p-p
power supply ripple typically
V
CC
supply 2.7 to 3.6 volts
Integrated EMI shield
LED stuck-high protection
Designed to accommodate light loss with cosmetic
windows
IEC 825-Class 1 Eye Safe
Lead-free and RoHS Compliant
Applications
Mobile telecom
— Mobile phones
— Pagers
— Smart phone
Data communication
— PDAs
— Portable printers
Digital imaging
— Digital cameras
— Photo-imaging printers
Electronic wallet, IrFM
HSDL-3203
Small Profile Package IrDAData Compiant
LowPower 115.2 kbt/s InfraredTransceiver
Data Sheet
