www.ti.com
(3/8) AVDD
ToParallelPin
3R
AVDD
GND
3R
2R
(5/8) AVDD

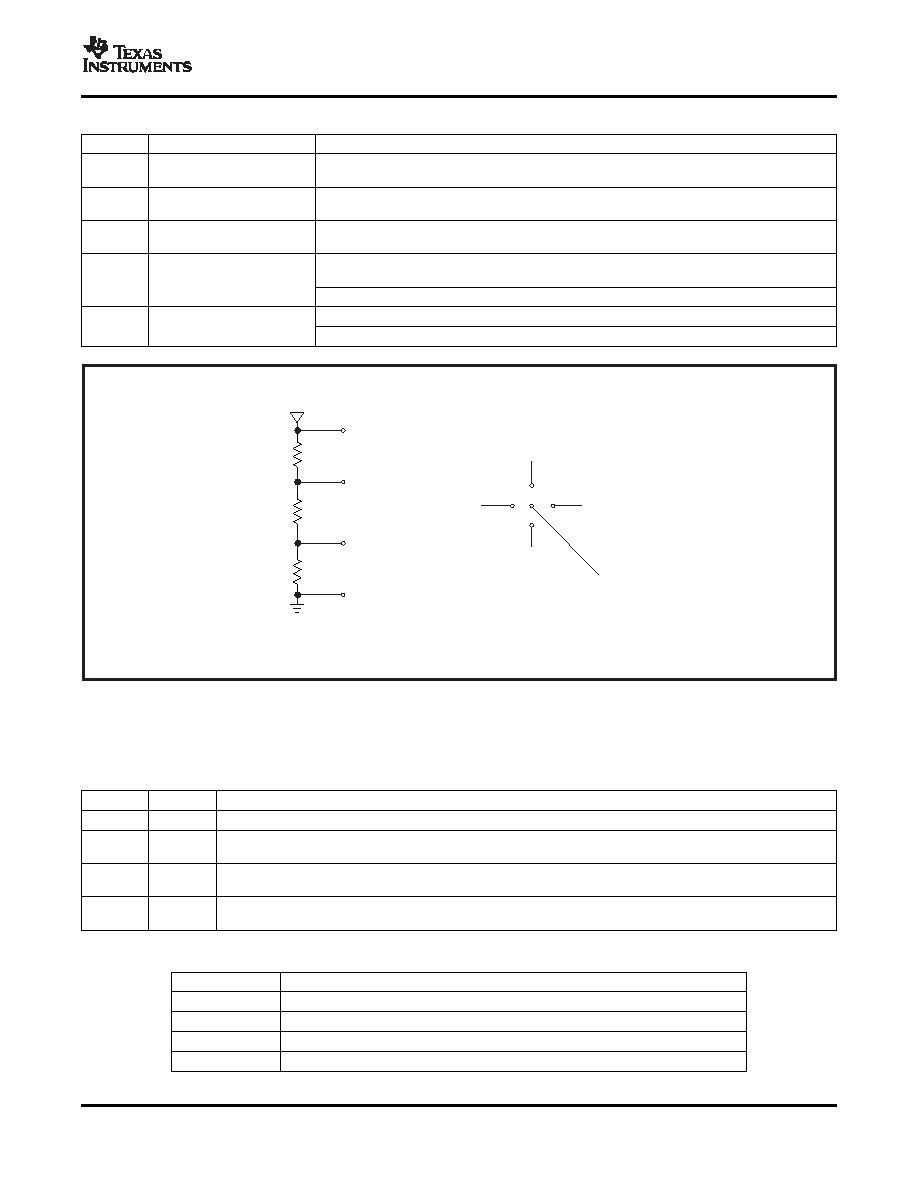

DESCRIPTION OF PARALLEL PINS
SLAS542A – MAY 2007 – REVISED JULY 2007
Table 4. Priority Between Parallel Pins and Serial Registers
PIN
FUNCTIONS SUPPORTED
PRIORITY
CFG1 to
Register bits can control the modes ONLY if the <OVRD> bit is high. If the <OVRD> bit is
As described in
CFG4
LOW, then the control voltage on these parallel pins determines the function as per Tables
D2 bit of register 0x00 controls channel A power down ONLY if PDNA pin is LOW. If PDNA is
PDNA
Channel A power down
high, channel A is powered down.
D3 bit of register 0x00 controls channel B power down ONLY if PDNB pin is LOW. If PDNB is
PDNB
Channel B power down
high, channel B is powered down.
COARSE GAIN setting is controlled by bit D5 of register 0X0D ONLY if the <OVRD> bit is high.
Else, it is in default register setting of 0 dB COARSE GAIN.
SEN
Serial Interface Enable
INTERNAL/ EXTERNAL Reference setting is determined by bit D6 of register 0x00.
D7, D6, D5 bits of register 0x0A control the SYNC and DESKEW output patterns.
SCLK,
Serial Interface Clock and
SDATA
Serial Interface Data pins
Power down is determined by bit D0 of 0x00 register.
Figure 3. Simple Scheme to Configure Parallel Pins
Table 5. SCLK, SDATA Control Pins
SCLK
SDATA
DESCRIPTION
LOW
NORMAL conversion.
SYNC - ADC outputs sync pattern on all channels. This pattern can be used by the receiver to align the
LOW
HIGH
deserialized data to the frame boundary. See Capture Test Patterns for details.
POWER DOWN –Global power down, all channels of the ADC are powered down, including internal references,
HIGH
LOW
PLL and output buffers.
DESKEW - ADC outputs deskew pattern on all channels. This pattern can be used by the receiver to ensure
HIGH
deserializer uses the right clock edge. See Capture Test Patterns for details.
Table 6. SEN Control Pin
SEN
DESCRIPTION
0
External reference and 0 dB coarse gain (Full-scale = 2V pp)
(3/8)LVDD
External reference and 3.5 dB coarse gain (Full-scale = 1.34V pp)
(5/8)LVDD
Internal reference and 3.5 dB coarse gain (Full-scale = 1.34V pp)
LVDD
Internal reference and 0 dB coarse gain (Full-scale = 2V pp)
Copyright 2007, Texas Instruments Incorporated
13
