C1+
SDAT
DS1 DS2 DM5
VIO
NC
GND
GND
NC-G
NC
DM1
DM2
DM3
DM4
IS
ENA
GND
C1-
C2+
C2-
VOUT
VIN
Main Display
C1
1 F
m
C4
4.7 F
C2
1 F
m
C3
1 F
m
Sub Display
SCLK
I2C Interface
1.8V for I/O
Input
Auxiliary Port for Key Pad
or Flash Light
R1
562 k
W
330
W
m
LAYOUT GUIDELINES
There are several points to consider when laying out a PCB for charge pump based solutions. In general, all
capacitors should be as close as possible to the device. This is especially important when placing the flying
capacitors (C2, C3 in
Figure 20
and
Figure 21
). To provide accurate WLED current, the current path with the
current setting resistor must be short to avoid any interference from other switching components. In cases where
DM5 is assigned for torch/flash applications, with a maximum 80-mA WLED current, this current path must be
kept wide to reduce the trace resistance.
TPS60251
SLVS767–APRIL 2007

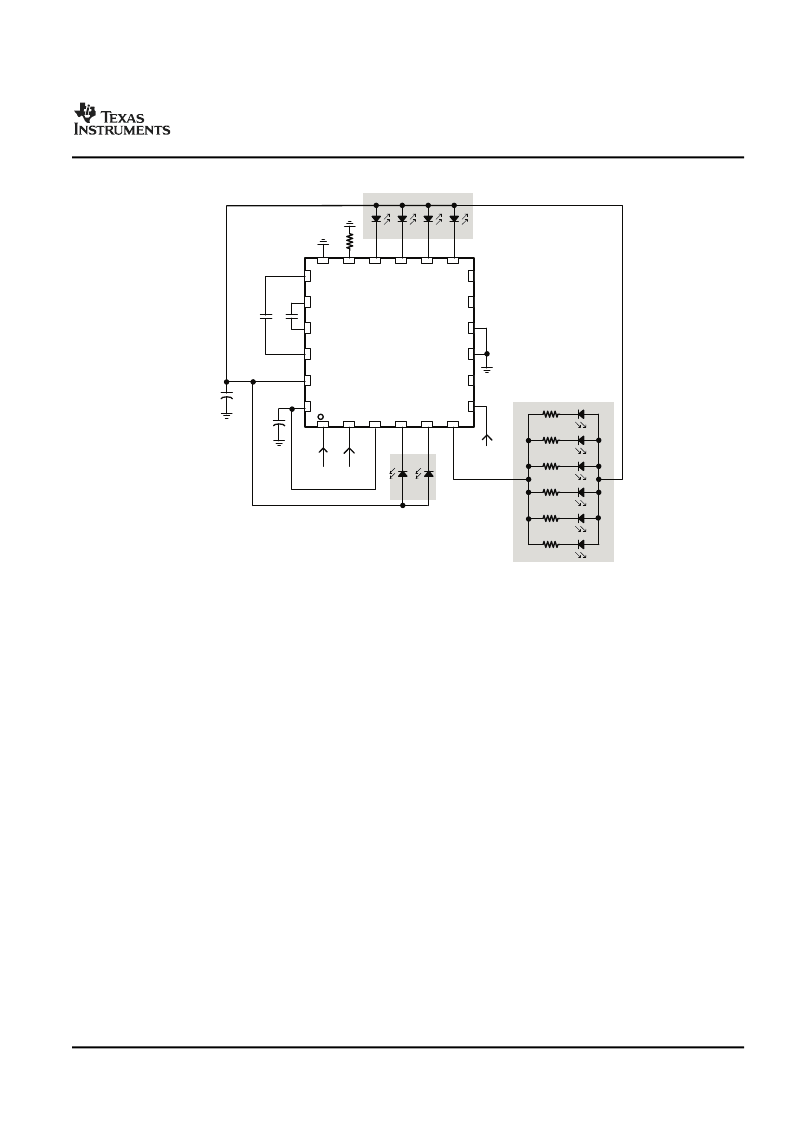

Figure 21. The Typical Application Circuit for Sub, Main, and Keypad Backlight
Figure 21
shows the typical application circuit for sub, main, and keypad backlight. In this application, DM5 is
assigned as the auxiliary input for the keypad lighting application.
19
Submit Documentation Feedback
