TB2926HQ
2006-11-27
7
5.
Prevention of speaker damage (in case of a layer short-circuit of the speaker)
When the DC resistance between the OUT
+ and OUT pins falls below 1 , the output current exceeds 4 A.
At this time, the protection circuit is activated to limit the current draw into the speaker.
This feature prevents the speaker from being damaged, as follows:
< Speaker damaging scenario >
A DC current of over 4 V is applied to the speaker due to an external circuit failure (Note 4).
(Abnormal DC output offset)
↓
The speaker impedance becomes 1
or less due to a layer short.
↓
A current of over 4 A flows into the speaker, damaging the speaker.

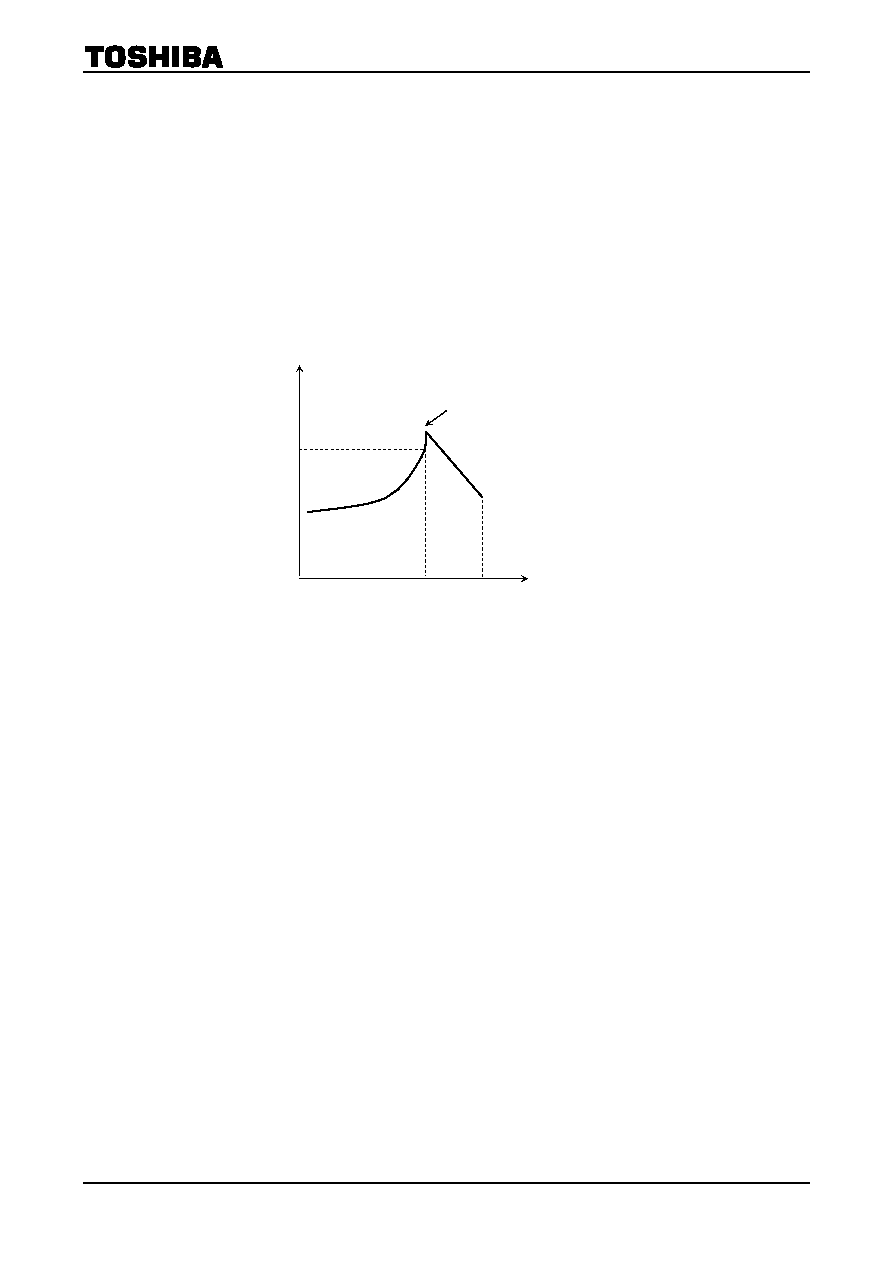

Figure 8
Note 4: An abnormal DC offset voltage is incurred when the input bias to the power IC is lost due to a leakage
current from a coupling capacitor at the input or a short-circuit between the IN and adjacent lines.
Current into the speaker
Speaker Impedance
Less than 4 A
About 1
4
The short-circuit protection is activated
