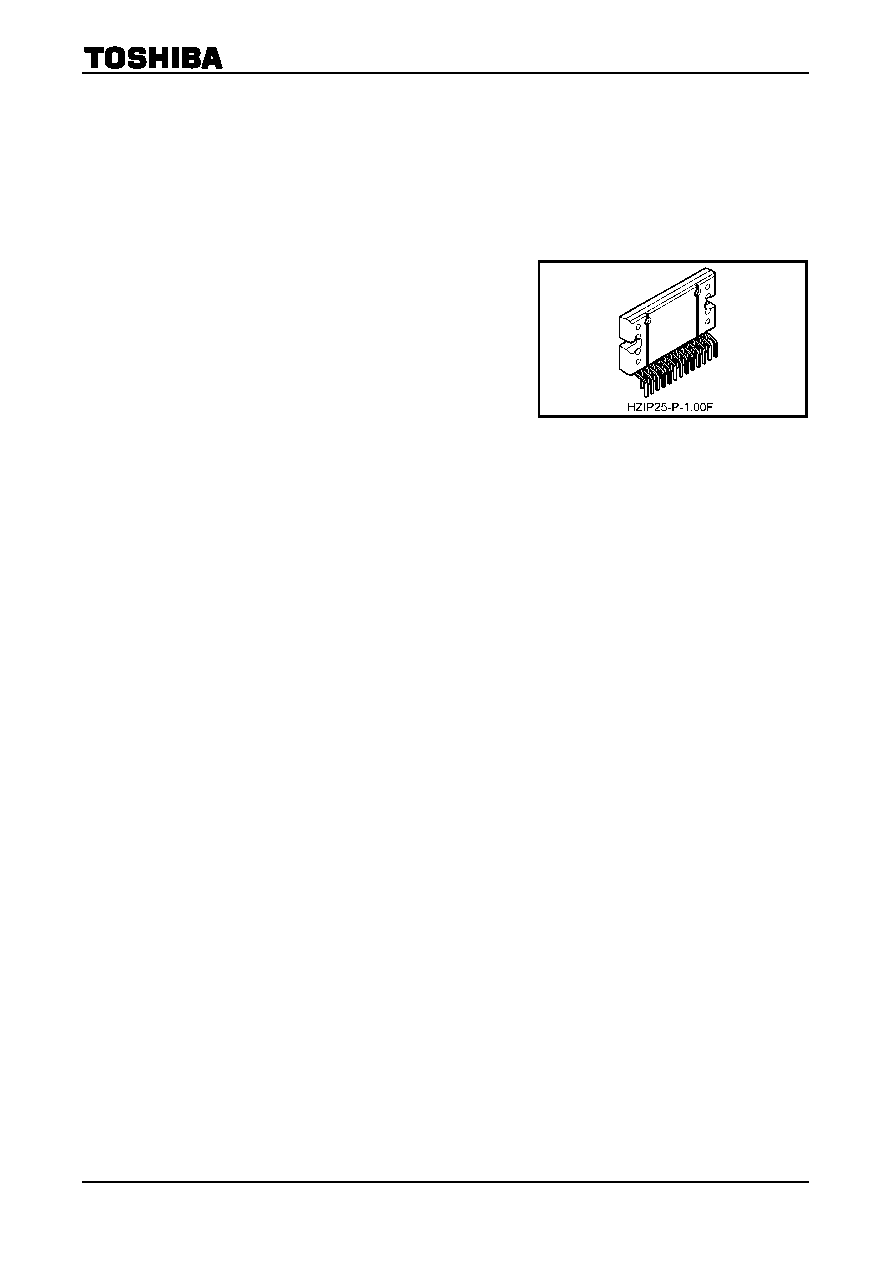

| 封裝： | 1 MM PITCH, PLASTIC, HZIP-25 |
| 文件頁數： | 1/20頁 |
| 文件大?。?/td> | 470K |
| 代理商： | TB2936HQ |
TB2936HQ
2009-02-04
1
TOSHIBA Bi-CMOS Linear Integrated Circuit Silicon Monolithic
TB2936HQ
49 W
× 4-ch BTL Audio Power IC
The TB2936HQ is a four-channel BTL power amplifier for car
audio applications.
This IC has a pure complementary P-ch and N-ch DMOS output
stage, offering maximum output power (POUT MAX) of 49 W.
It includes a standby switch, mute function and various
protection features.
Features
High output power
POUT MAX (1) = 49 W (typ.)
(VCC = 15.2 V, f = 1 kHz, JEITA max, RL = 4 Ω)
POUT MAX (2) = 43W (typ.)
(VCC = 14.4 V, f = 1 kHz, JEITA max, RL = 4 Ω)
POUT (1) = 26 W (typ.)
(VCC = 14.4 V, f = 1 kHz, THD = 10%, RL = 4 Ω)
POUT (2) = 23 W (typ.)
(VCC = 13.2 V, f = 1 kHz, THD = 10%, RL = 4 Ω)
Low THD: 0.015% (typ.) (VCC = 13.2 V, f = 1 kHz, POUT = 5 W, RL = 4 Ω)
Low noise: VNO = 160 μVrms (typ.)
(VCC = 13.2 V, Rg = 0 Ω, BW = 20 Hz to 20 kHz, RL = 4 Ω)
Standby switch (pin 4)
Mute function (pin 22)
Output DC offset detection and clip detection (pin 25)
Various protection features
Thermal overload; overvoltage; output short-circuits to GND, VCC and across the load; speaker current limiting
Operating supply voltage: VCC (opr) = 8.0 to 18 V (RL = 4 Ω)
Note 1: Install the device correctly. Otherwise, the device or system may be degraded, damaged or even destroyed.
Note 2: The protection features are intended to avoid output short-circuits or other abnormal conditions temporarily. It
is not guaranteed that they will prevent the IC from being damaged.
Exposure to conditions beyond the guaranteed operating ranges may not activate the protection features,
resulting in an IC damage due to output short-circuits.
Weight: 7.7 g (typ.)
