NB7L14M
http://onsemi.com
2
V
EE
Q3
Q3
V
CC
V
EE
Q0
Q0
V
CC
Q1
Q1
Q2
Q2
V
TCLK
CLK
CLK
V
TCLK
5
6
7
8
16
15
14
13
12
11
10
9
1
2
3
4
NB7L14M
Exposed Pad (EP)

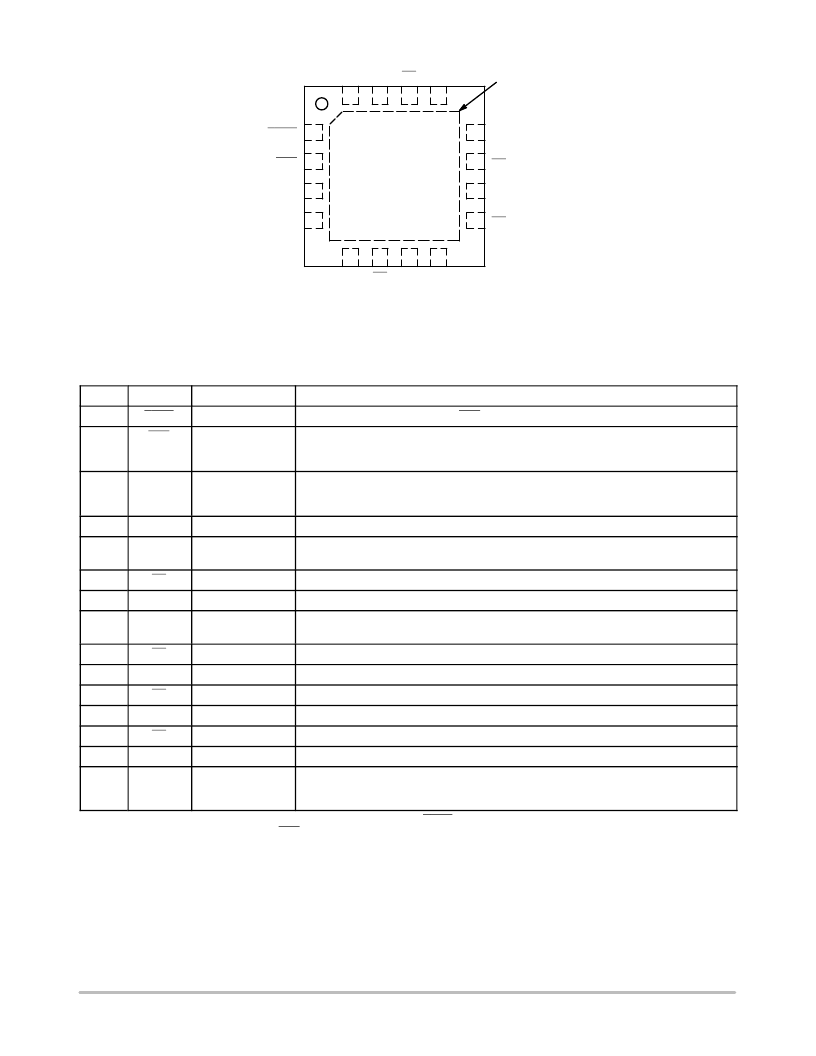

Figure 2. QFN
16 Pinout
(Top View)
Table 1. PIN DESCRIPTION
Pin
Name
I/O
Description
1
V
TCLK
Internal 50 Termination Pin for CLK.
2
CLK
LVPECL, CML,
LVCMOS, LVTTL,
LVDS
Inverted Differential Clock/Data Input. (Note 1)
3
CLK
LVPECL, CML,
LVCMOS, LVTTL,
LVDS
Non
inverted Differential Clock/Data Input. (Note 1)
4
V
TCLK
Internal 50 Termination Pin for CLK.
5,16
V
EE
Power Supply
Negative Supply Voltage. All V
EE
pins must be externally connected to a Power Supply to
guarantee proper operation.
6
Q3
CML Output
Inverted Differential Output 3 with Internal 50 Source Termination Resistor. (Note 2)
7
Q3
CML Output
Non
inverted Differential Output 3 with Internal 50 Source Termination Resistor. (Note 2)
8,13
V
CC
Power Supply
Positive Supply Voltage. All V
CC
pins must be externally connected to a Power Supply to
guarantee proper operation.
9
Q2
CML Output
Inverted Differential Output 2 with Internal 50 Source Termination Resistor. (Note 2)
10
Q2
CML Output
Non
inverted Differential Output 2 with Internal 50 Source Termination Resistor. (Note 2)
11
Q1
CML Output
Inverted Differential Output 1 with Internal 50 Source Termination Resistor. (Note 2)
12
Q1
CML Output
Non
inverted Differential Output 1 with Internal 50 Source Termination Resistor. (Note 2)
14
Q0
CML Output
Inverted Differential Output 0 with Internal 50 Source Termination Resistor. (Note 2)
15
Q0
CML Output
Non
inverted Differential Output 0 with Internal 50 Source Termination Resistor. (Note 2)
EP
Exposed Pad. Thermal pad on the package bottom must be attached to a heatsinking
conduit to improve heat transfer. It is recommended to connect the EP to the lower
potential (V
EE
).
1. In the differential configuration when the input termination pins (V
TCLK
, V
TCLK
) are connected to a common termination voltage or left open,
and if no signal is applied on CLK and CLK, then the device will be susceptible to self
oscillation.
2. CML outputs require 50 receiver termination resistors to V
CC
for proper operation.
