Preliminary Information
MT9122
8-31

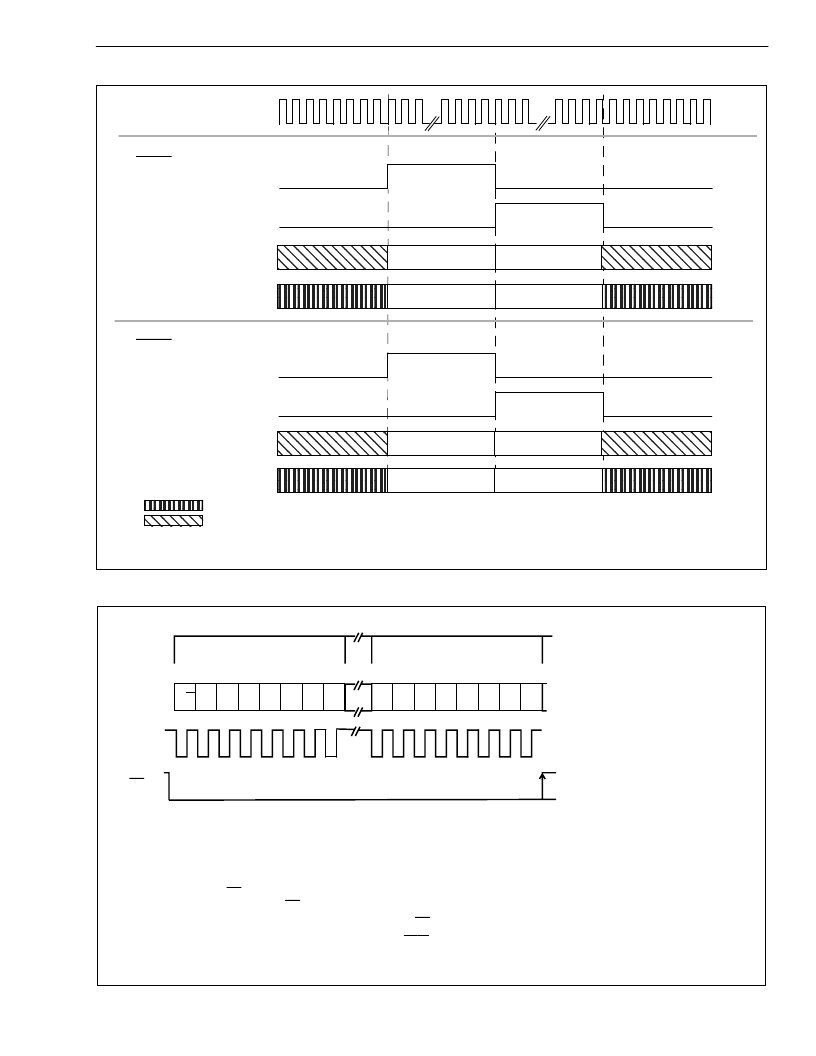

Figure 9 - SSI Operation
Figure 10 - Serial Microport Timing for Intel Mode 0
BCLK
ENA1
ENB1
Rin
Sout
ECA
ECB
8 or 16 bits
8 or 16 bits
8 or 16 bits
8 or 16 bits
PORT1
PORT2
ECA
ECB
8 or 16 bits
8 or 16 bits
8 or 16 bits
8 or 16 bits
ENA2
ENB2
Sin
Rout
Note that the two ports are independent so that, for example, PORT1 can operate with 8 bit enable strobes and PORT2
can operate with 16 bit enable strobes.
outputs=High impedance
inputs = don’t care
R/W
A
0
A
1
A
2
A
3
A
4
A
5
X
COMMAND/ADDRESS
DATA INPUT/OUTPUT
DATA 1
SCLK
CS
Delays due to internal processor timing which are transparent to the MT9122.
The MT9122:
outputs transmit data on the falling edge of SCLK
The falling edge of CS indicates that a COMMAND/ADDRESS byte will be transmitted from the microprocessor. The subsequent
byte is always data followed by CS returning high.
A new COMMAND/ADDRESS byte may be loaded only by CS cycling high then low again.
The COMMAND/ADDRESS byte contains:
1 bit - Read/Write
6 bits - Addressing Data
1 bit - Unused
D
0
D
1
D
2
D
3
D
4
D
5
D
6
D
7
latches receive data on the rising edge of SCLK
