Low-Power CMOS
Ionization Smoke Detector IC with
Interconnect and Temporal
Horn Driver
The MC145018, when used with an ionization chamber and a small number
of external components, will detect smoke. When smoke is sensed, an alarm is
sounded via an external piezoelectric transducer and internal drivers. This circuit
is designed to operate in smoke detector systems that comply with UL217 and
UL268 specifications.
Features
Ionization Type with On-Chip FET Input Comparator
Piezoelectric Horn Driver
Guard Outputs on Both Sides of Detect Input
Input-Protection Diodes on the Detect Input
Low-Battery Trip Point, Internally Set, can be Altered Via External Resistor
Detect Threshold, Internally Set, can be Altered Via External Resistor
Pulse Testing for Low Battery Uses LED for Battery Loading
Comparator Output for Detect
Internal Reverse Battery Protection
Strobe Output for External Trim Resistors
I/O Pin Allows Up to 40 Units to be Connected for Common Signaling
Supports NFPA 72, ANSi 53.41, and ISO 8201
Audible Emergency Evacuation Signals
Power-On Reset Places IC in Standby Mode
Pb-Free Packaging Designated by Suffix Code ED
ORDERING INFORMATION
Device
Case No.
Package
MC145018P
648-08
Plastic Dip
MC145018ED

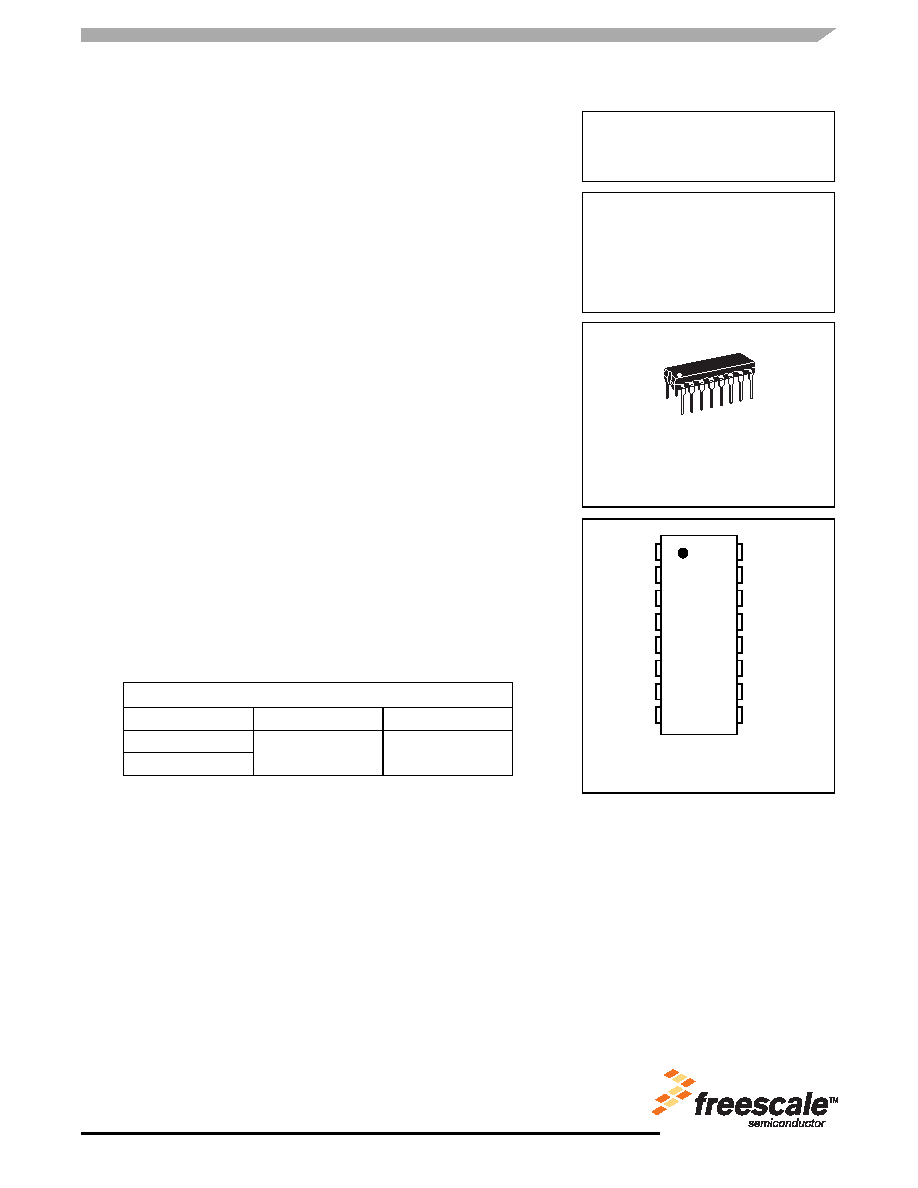

MC145018
IONIZATION SMOKE DETECTOR
IC WITH INTERCONNECT AND
TEMPORAL HORN DRIVER
P SUFFIX
ED SUFFIX (PB-FREE)
PLASTIC DIP
CASE 648-08
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
I/O
LED
VDD
GUARD LO-Z
SILVER
BRASS
VSS
DETECT
COMP. OUT
LOW V SET
STROBE
OUT
TIMING
RESISTOR
FEEDBACK
OSC CAPACITOR
SENSITIVITY SET
DETECT INPUT
GUARD HI-Z
Figure 1. Pin Assignment
