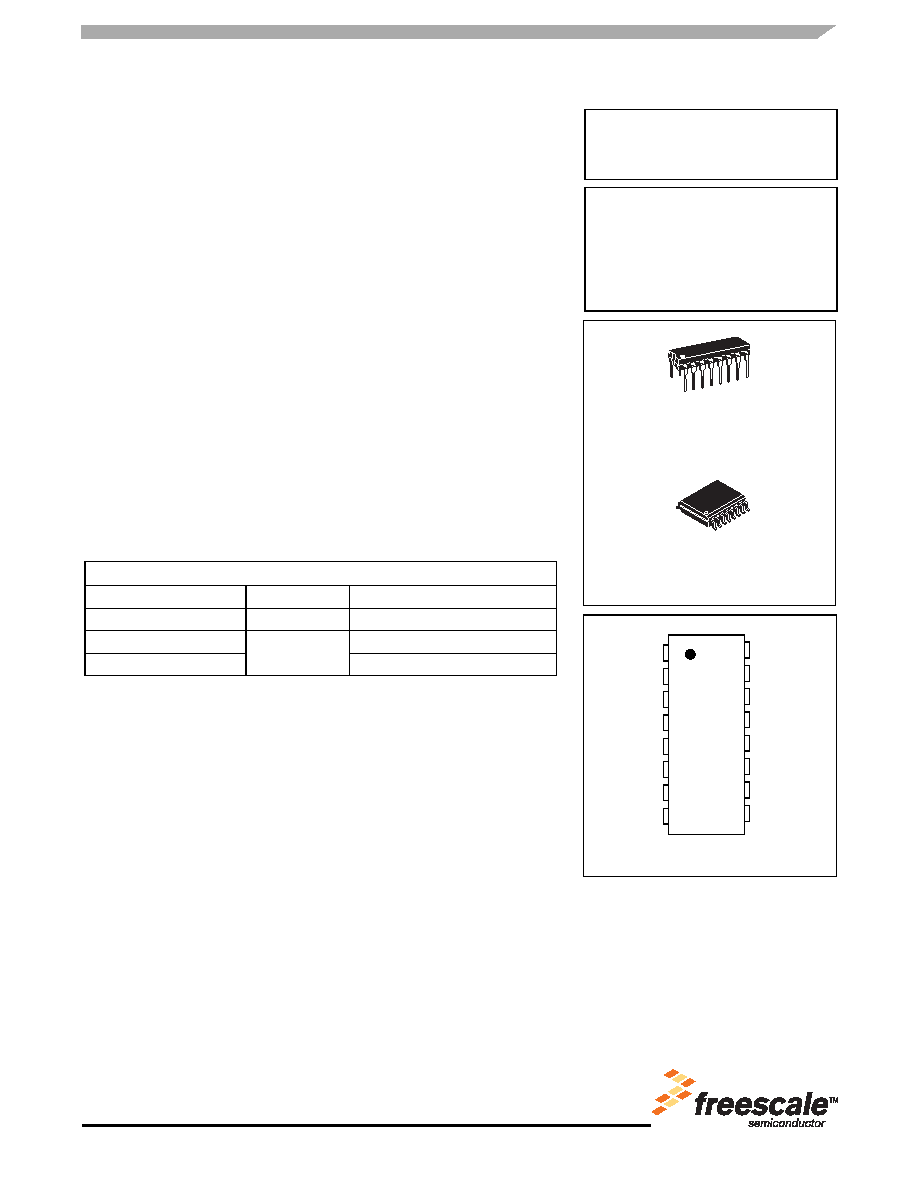

Freescale Semiconductor, Inc. reserves the right to change the detail specifications,
as may be required, to permit improvements in the design of its products.
Document Number: MC14600
Rev. 7.0, 6/2007
Freescale Semiconductor
Technical Data
Freescale Semiconductor, Inc., 2007. All rights reserved.
Archived by Freescale Semiconductor, Inc., 2009
Archive
Information
Archive
Information
Low-Power CMOS
ALARM IC with Horn Driver
The MC14600 Alarm IC is designed to simplify the process of interfacing an
alarm level voltage condition to a piezoelectric horn and/or LED. With an
extremely low average current requirement and an integrated low battery detect
feature, the part is ideally suited to battery operated applications. The MC14600
is easily configured with a minimum number of external components to serve a
wide range of applications and circuit configurations. Typical applications include
intrusion alarms, moisture or water ingress alarms, and personal safety devices.
Features
High Impedance, FET Input Comparator
Comparator Outputs for Low Battery and Alarm Detect
Alarm Detect Threshold Easily Established with 2 Resistors
Integrated Oscillator and Piezoelectric Horn Driver
Low Battery Trip Point Set Internally (Altered Externally)
Horn “Chirp'' During Low Battery Condition
Pulsed LED Drive Output
Reverse Battery Protection
Input Protection Diodes on the Detect Input
Average Supply Current: 9
μA
Pb-Free Packaging Designated by Suffix Codes ED and EG
ORDERING INFORMATION
Device
Case No.
Package
MC14600P
648-08
16 PDIP
MC14600DW/R2
751G-04
16 SOIC
MCZ14600EG/R2
16 SOIC (Pb-free)
14600
LOW-POWER CMOS
ALARM IC
WITH HORN DRIVER
P SUFFIX
ED SUFFIX (PB-FREE)
16-LEAD PLASTIC DIP
CASE 648-08
DW SUFFIX
EG SUFFIX (PB-FREE)
16-LEAD SOIC
CASE 751G-04
DETECT
COMP. OUT
N/C
LOW V SET
LOW V
COMP. OUT
LED
VDD
TIMING
RESISTOR
HORN
FEEDBACK
GUARD
ALARM
DETECT INPUT
N/C
ALARM
THRESHOLD
OSC CAPACITOR
HORN OUT 2
HORN OUT 1
VSS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Figure 1. Pin Connections
