| 型號： | MC100EPT23DTR2 |
| 廠商： | ON SEMICONDUCTOR |
| 元件分類： | 通用總線功能 |
| 英文描述： | Dual Differential LVPECL to LVTTL Translator |
| 中文描述： | DUAL PECL TO TTL TRANSLATOR, TRUE OUTPUT, PDSO8 |
| 封裝： | PLASTIC, TSSOP-8 |
| 文件頁數： | 1/8頁 |
| 文件大?。?/td> | 65K |
| 代理商： | MC100EPT23DTR2 |

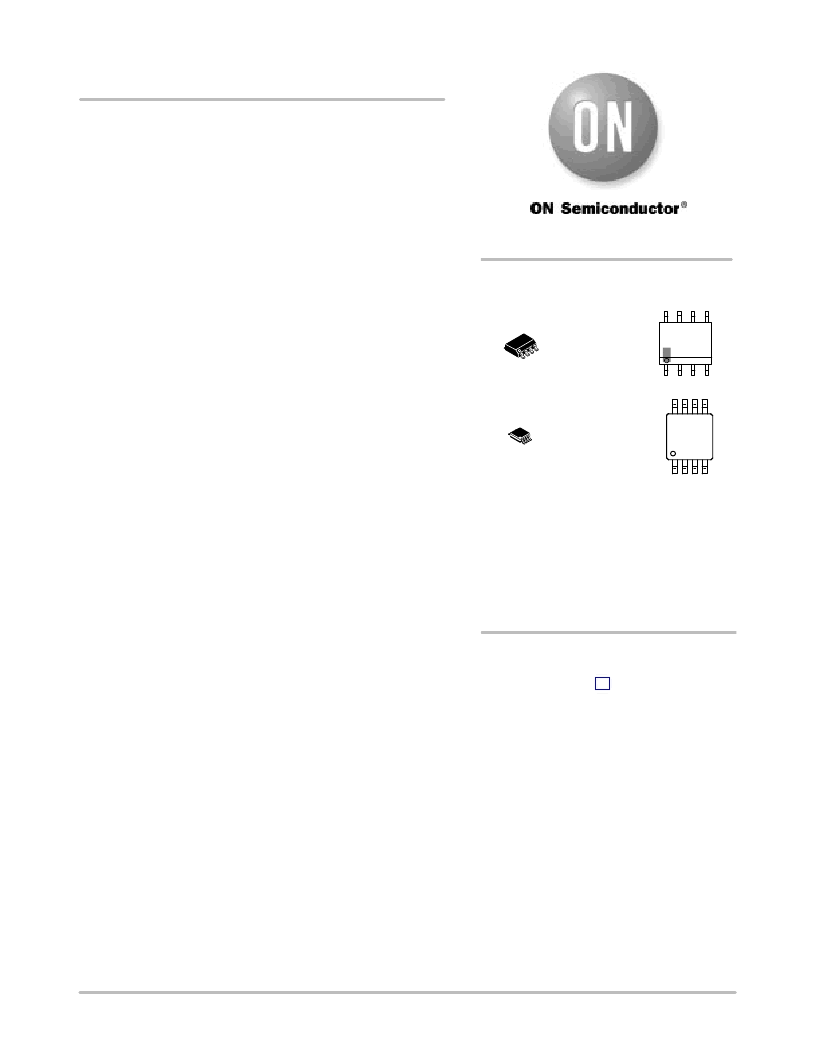

Semiconductor Components Industries, LLC, 2005
February, 2005 Rev. 11
1
Publication Order Number:
MC100EPT23/D
MC100EPT23
3.3VDual Differential
LVPECL/LVDS to LVTTL
Translator
The MC100EPT23 is a dual differential LVPECL/LVDS to LVTTL
translator. Because LVPECL (Positive ECL) or LVDS levels are used,
only +3.3 V and ground are required. The small outline 8-lead package
and the dual gate design of the EPT23 makes it ideal for applications
which require the translation of a clock and a data signal.
The EPT23 is available in only the ECL 100K standard. Since there
are no LVPECL outputs or an external V
BB
reference, the EPT23 does
not require both ECL standard versions. The LVPECL/LVDS inputs
are differential. Therefore, the MC100EPT23 can accept any standard
differential LVPECL/LVDS input referenced from a V
CC
of +3.3 V.
1.5 ns Typical Propagation Delay
Maximum Operating Frequency > 275 MHz
24 mA LVTTL Outputs
Operating Range: V
CC
=
3.0 V to 3.6 V with GND = 0 V
PbFree Packages are Available
*For additional marking information, refer to
Application Note AND8002/D.
MARKING
DIAGRAMS*
A = Assembly Location
L = Wafer Lot
Y = Year
W = Work Week
ALYW
KA23
SOIC8
D SUFFIX
CASE 751
1
8
TSSOP8
DT SUFFIX
CASE 948R
1
8
1
8
See detailed ordering and shipping information in the package
dimensions section on page 5 of this data sheet.
ORDERING INFORMATION
http://onsemi.com
KPT23
ALYW
1
8
