| 型號： | MAX9374AEKA+T |
| 廠商： | Maxim Integrated Products |
| 文件頁數： | 5/9頁 |
| 文件大小： | 0K |
| 描述： | IC TRANSLATOR DIFF SOT23-8 |
| 產品培訓模塊： | Lead (SnPb) Finish for COTS Obsolescence Mitigation Program |
| 標準包裝： | 2,500 |
| 邏輯功能： | 變換器 |
| 位數： | 1 |
| 輸入類型： | LVPECL |
| 輸出類型： | LVDS |
| 通道數： | 1 |
| 輸出/通道數目： | 1 |
| 差分 - 輸入:輸出： | 是/是 |
| 傳輸延遲（最大）： | 0.091ns |
| 電源電壓： | 3 V ~ 3.6 V |
| 工作溫度： | -40°C ~ 85°C |
| 封裝/外殼： | SOT-23-8 |
| 供應商設備封裝： | SOT-23-8 |
| 包裝： | 帶卷 (TR) |
MAX9374/MAX9374A
Differential LVPECL-to-LVDS Translators
_______________________________________________________________________________________
5

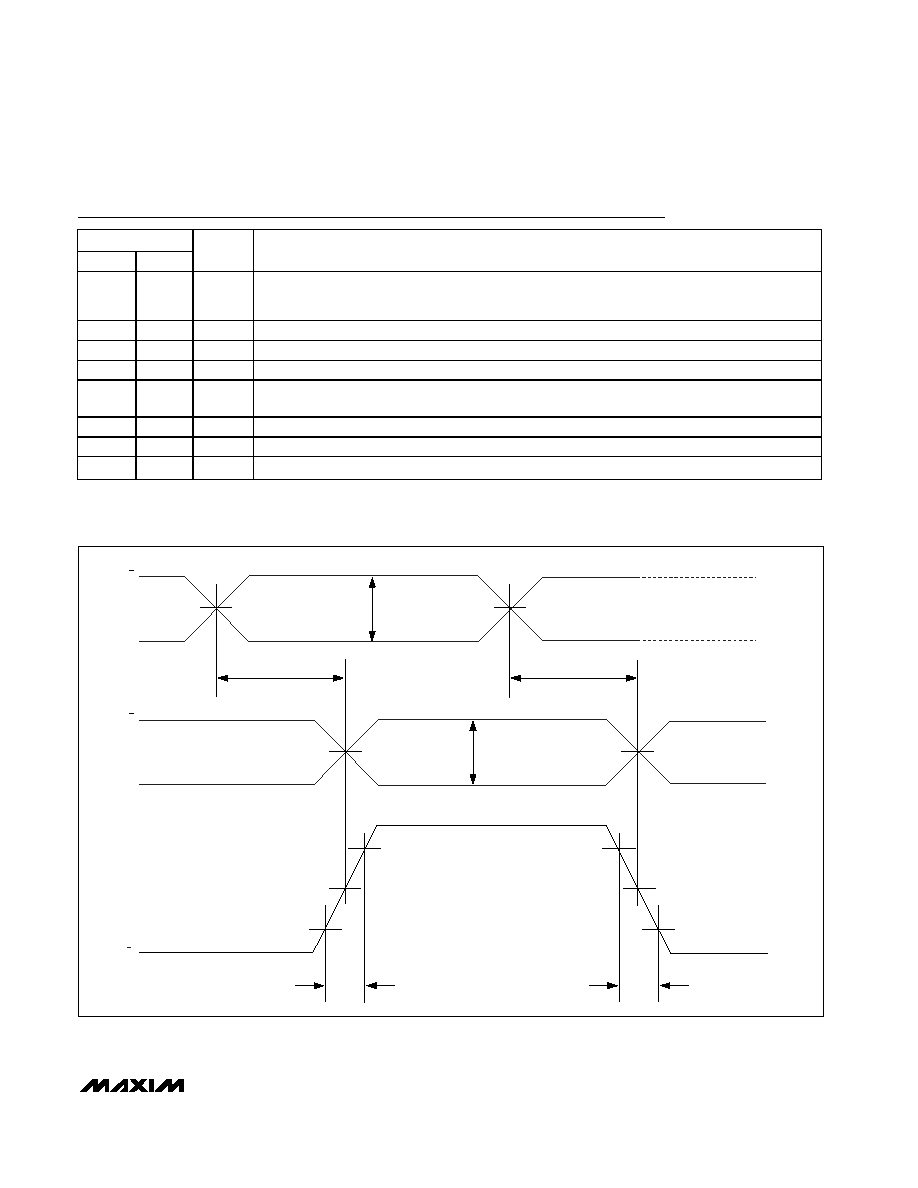

Pin Description
PIN
SOT23
SO
NAME
FUNCTION
14
VBB
Reference Output Voltage. Connect to the inverting or noninverting data input to provide a reference
for single-ended operation. When used, bypass with a 0.01F ceramic capacitor to VCC; otherwise,
leave it open.
2
5
GND
Ground. Provide a low-impedance connection to the ground plane.
33
D
Inverted LVPECL Data Input. 36.5k
pullup to VCC and 75k pulldown to GND.
4
2
D
Noninverted LVPECL Data Input. 75k
pullup to VCC and 75k pulldown to GND.
58
VCC
Positive Supply Voltage. Bypass VCC to GND with 0.1F and 0.01F ceramic capacitors. Place the
capacitors as close to the device as possible with the smaller value capacitor closest to the device.
6
7
Q
Noninverted LVDS Output. Typically terminate with 100
to Q.
76
Q
Inverted LVDS Output. Typically terminate with 100
to Q.
8
1
N.C.
No Connection. Not internally connected.
VIHD - VILD
D
VIHD
VILD
VOD
VOS
Q
VOH
VOL
tPLH_
tPHL_
tR
(Q) - (Q)
20%
80%
tF
80%
20%
0 (DIFFERENTIAL)
Figure 1. MAX9374/MAX9374A Timing Diagram
