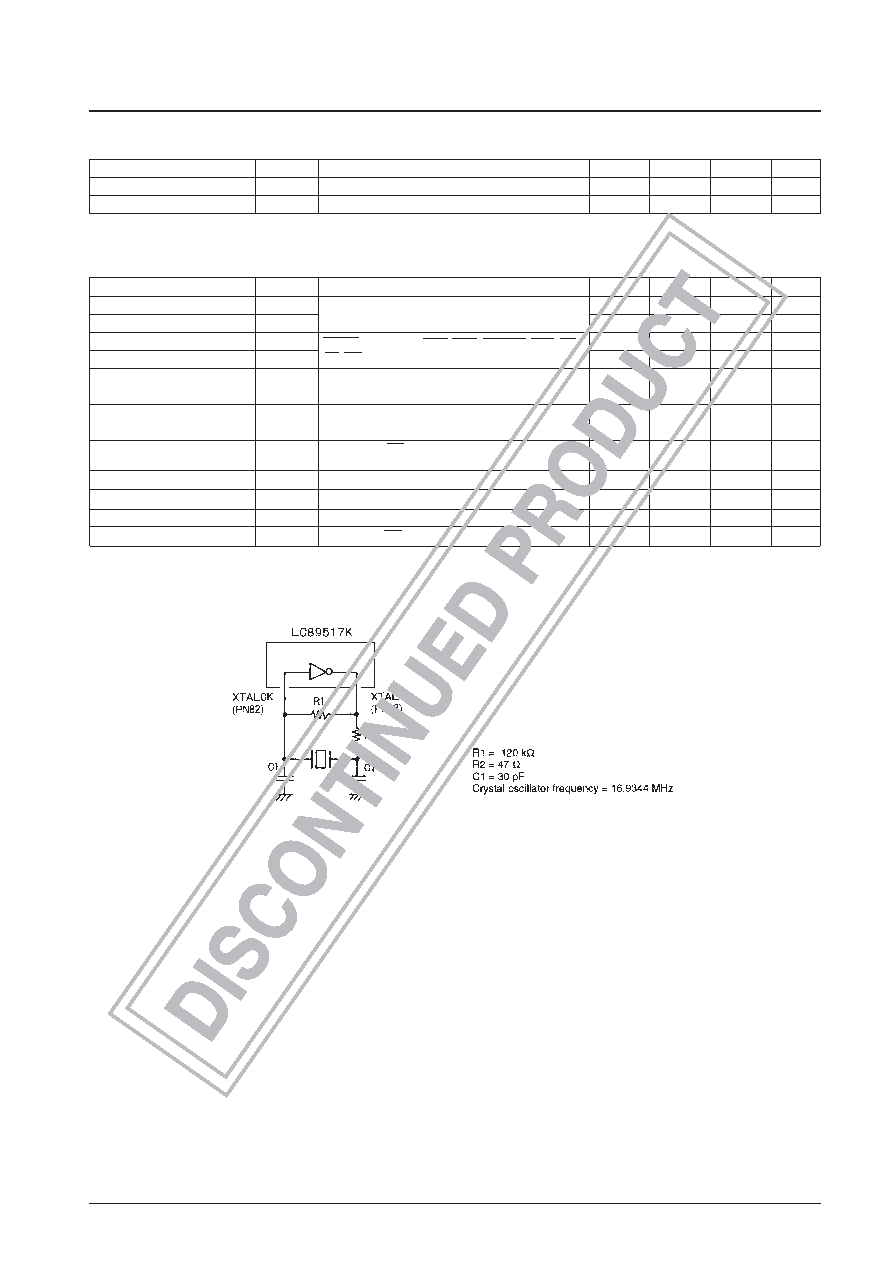

Allowable Operating Ranges at Ta = –30 to +70°C, VSS = 0 V
DC Characteristics at Ta = –30 to +70°C, VSS = 0 V, VDD = 3.5 to 5.5 V
Sample Recommended Oscillator Circuit
No. 4854-2/6
LC89517K
Parameter
Symbol
Conditions
min
typ
max
Unit
Supply voltage
VDD
3.5
5.0
5.5
V
Input voltage range
VIN
0VDD
V
Parameter
Symbol
Conditions
min
typ
max
Unit
Input high level voltage
VIH1
All input pins other than (1) and XTALCK
2.2
V
Input low level voltage
VIL1
0.8
V
Input high level voltage
VIH2
RESET, all bus pins (HRD, HWR, ENABLE, CMD, RD,
2.5
V
Input low level voltage
VIL2
CS, WR, WFCK, SBSO, SCOR) (1)
0.6
V
Output high level voltage
VOH1
IOH1 = –2 mA: All output pins (including bus pins)
2.4
V
other than (2) and XTALCK
Output low level voltage
VOL1
IOL1 = 2 mA: All output pins (including bus pins)
0.4
V
other than (2) and XTALCK
Output low level voltage
VOL2
IOL2 = 2 mA: INT (open drain circuit with
0.4
V
pull-up resistor) (2)
Output high level voltage
VOH3
IOH3 = –6 mA: HD0 to HD7
2.4
V
Output low level voltage
VOL3
IOL3 = 6 mA: HD0 to HD7
0.4
V
Input leakage current
IL
VI = VSS, VDD: All input pins
–25
+25
μA
Pull-up resistance
RUP
All bus pins, INT
10
20
40
kΩ
