L6591
Application information
Doc ID 14821 Rev 4
15/32

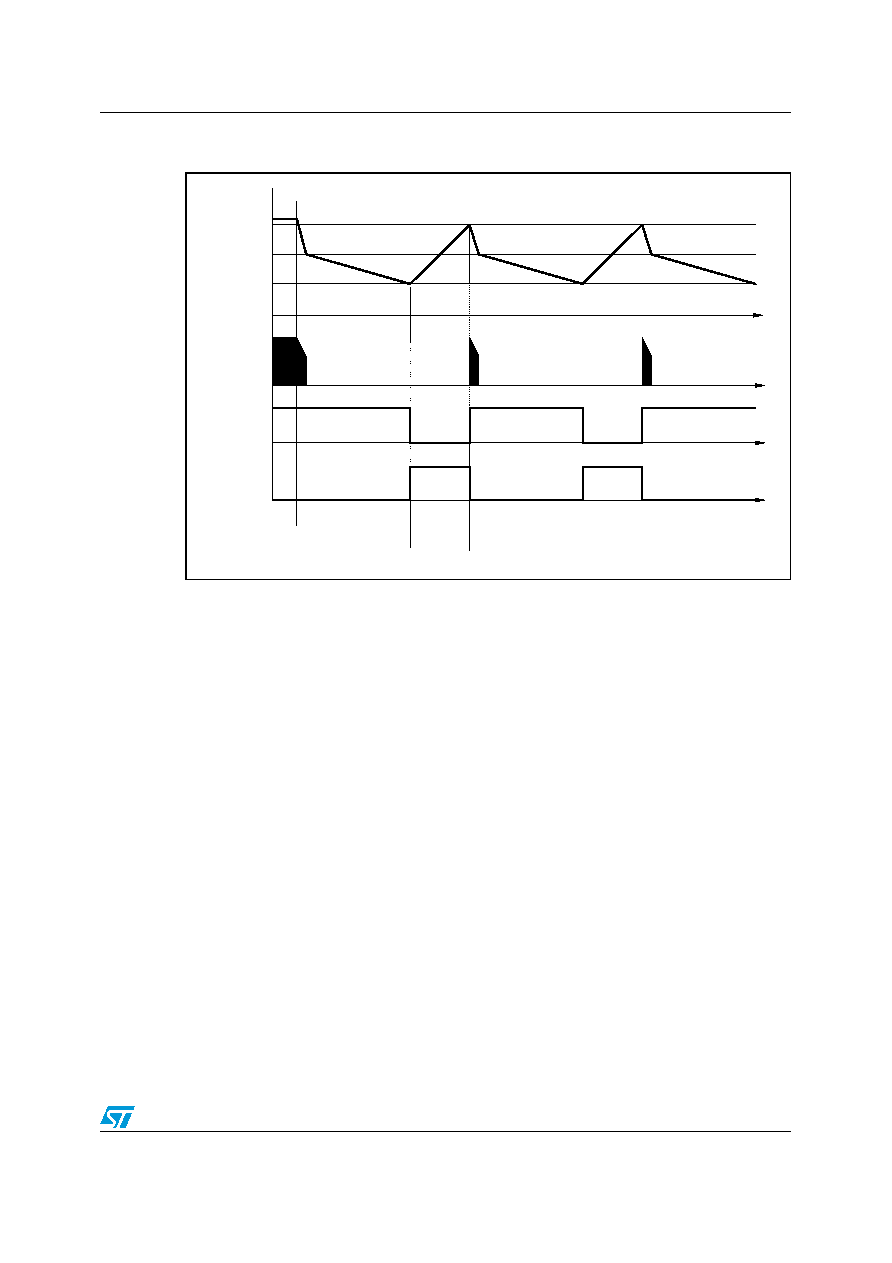

Figure 7.
Timing diagram showing short-circuit behavior
(SS pin clamped below 5 V)
5.2
Operation at no load or very light load
When the PWM control voltage at pin COMP falls below a threshold located at 1.75 V, the IC
is disabled with both the high-side and the low-side MOSFET kept in OFF-state, the
oscillator stopped and the quiescent consumption very much reduced to minimize Vcc
capacitor discharge.
The control voltage now will increase as a result of the feedback reaction to the energy
delivery stop and, as it exceeds 1.82 V, the IC will restart switching. After a while, the control
voltage will go down again in response to the energy burst and stop the IC. In this way the
converter will work in a burst-mode fashion with a nearly constant peak current. A further
load decrease will then cause a frequency reduction, which can go down even to few
hundred hertz, thus minimizing all frequency-related losses and making it easier to comply
with energy saving regulations. The timing diagram of Figure 8 illustrates this kind of
operation, showing the most significant signals.
If it is necessary to decrease the intervention threshold of the burst-mode operation, this can
be done by adding a small DC offset on the current sense pin as shown in Figure 9.
Note: The offset reduces the available dynamics of the current signal; thereby, the value of
the sense resistor must be determined taking this offset into account.
Vcc
LVG,HVG
Vcc_OK
