Application information
L6563H
34/48
Doc ID 16047 Rev 2

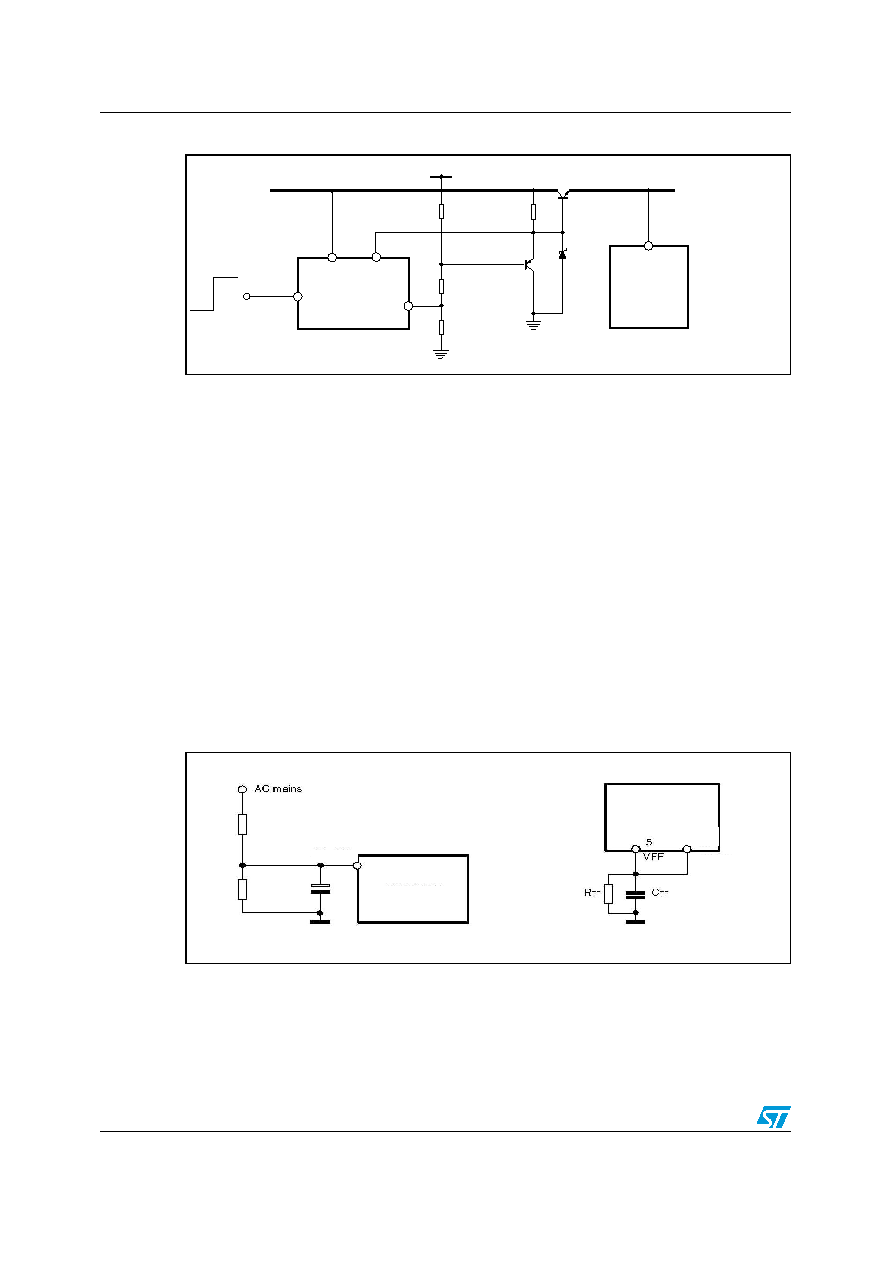

Figure 49.
Interface circuits for actual power-up sequencing (master PFC)
Another possible use of the RUN and PWM_STOP pins (again, in systems where the PFC
stage is the master) is the brownout protection, thanks to the hysteresis provided.
The brownout protection is basically a not-latched device shutdown function that is activated
when a condition of mains undervoltage is detected. This condition may cause overheating
of the primary power section due to an excess of RMS current. Brownout can also cause the
PFC pre-regulator to work open loop and this could be dangerous to the PFC stage itself
and the downstream converter, should the input voltage return abruptly to its rated value.
Another problem is the spurious restarts that may occur during converter power down and
that cause the output voltage of the converter not to decay to zero monotonically. For these
reasons it is usually preferable to shutdown the unit in case of brownout.
IC shutdown upon brownout can be easily realized as shown in Figure 50. The scheme on
the left is of general use, that one on the right can be used if the bias levels of the multiplier
and the RFFCFF time constant are compatible with the specified brownout level and with the
specified holdup time respectively. In this latest case, an additional resistor voltage divider
and one capacitor are not needed.
In table 1 it is possible to find a summary of all of the above mentioned working conditions
that cause the device to stop operating.
Figure 50.
Brownout protection (master PFC)
RUN
L6563H
12
RUN
L6563H
12
