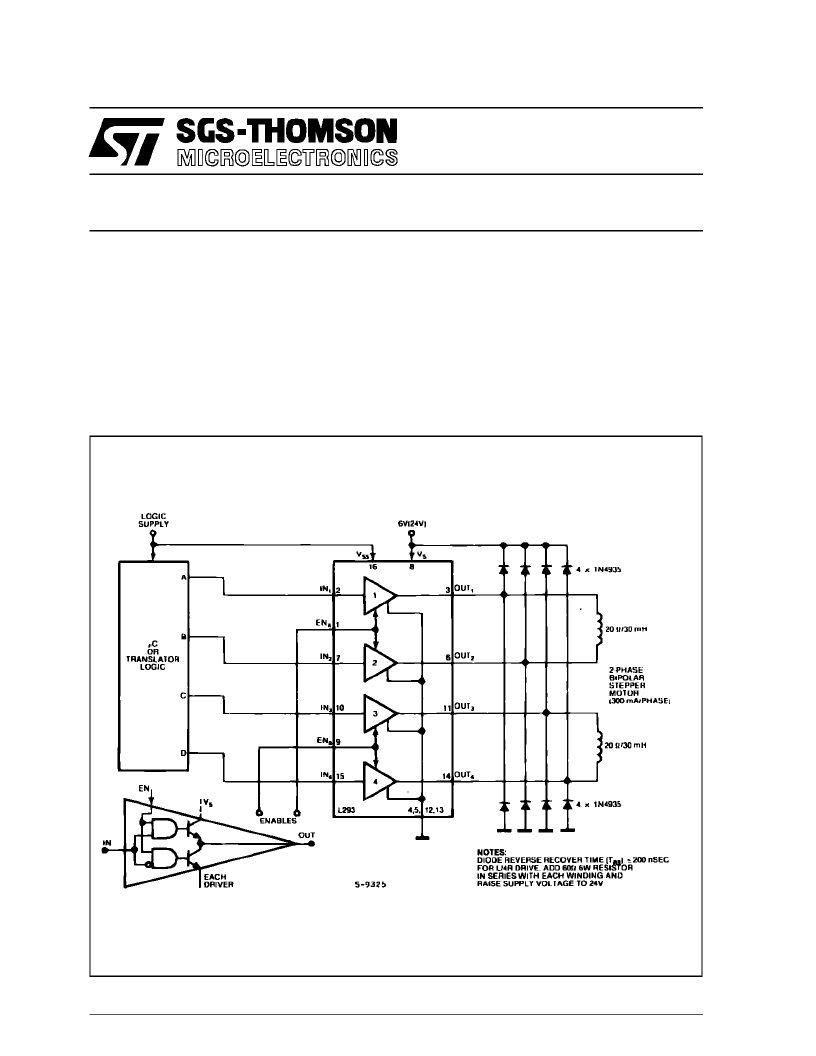

APPLICATION NOTE
AN238/0488
EASE STEPPER-MOTOR-DRIVE DESIGN
HIGH-POWER, DUAL-BRIDGE ICs
In addition to simplifying design problems, a familyof dedicatedchipsimproves stepper-motordrive-circuit
reliability by significantly reducing the componentcount.
Figure 1 :
The Simplest Stepper-motorDrive Technique isthe Basic L/RConfiguration. AddingSeries Re-
sistors andRaising the Supplyto Make an L/4RDrive ImprovesTorque at High Stepsrates but
ReducesEfficiency.
The L293, L293E and L298N dual-bridgeICs (see
box
, ”insidethe dual-bridgeICs”) significantlyredu-
ce the problemsencounteredinthe design of step-
per-motor drive circuitry. They can, for example,
simplify the design and increase the efficiency of
constant-current choppers. And with a single chip
replacing the transistors and predriver stages, cir-
cuitperformanceimproves. Bestof all, the devices
haveapplicationsincomplex as well asbasicdriver
networks.
1/8
