Vicor Corporation
Tel: 800-735-6200
vicorpower.com
Power Factor Module
F3D480T20A
Rev. 1.0
Page 8 of 14
PRELIMINARY

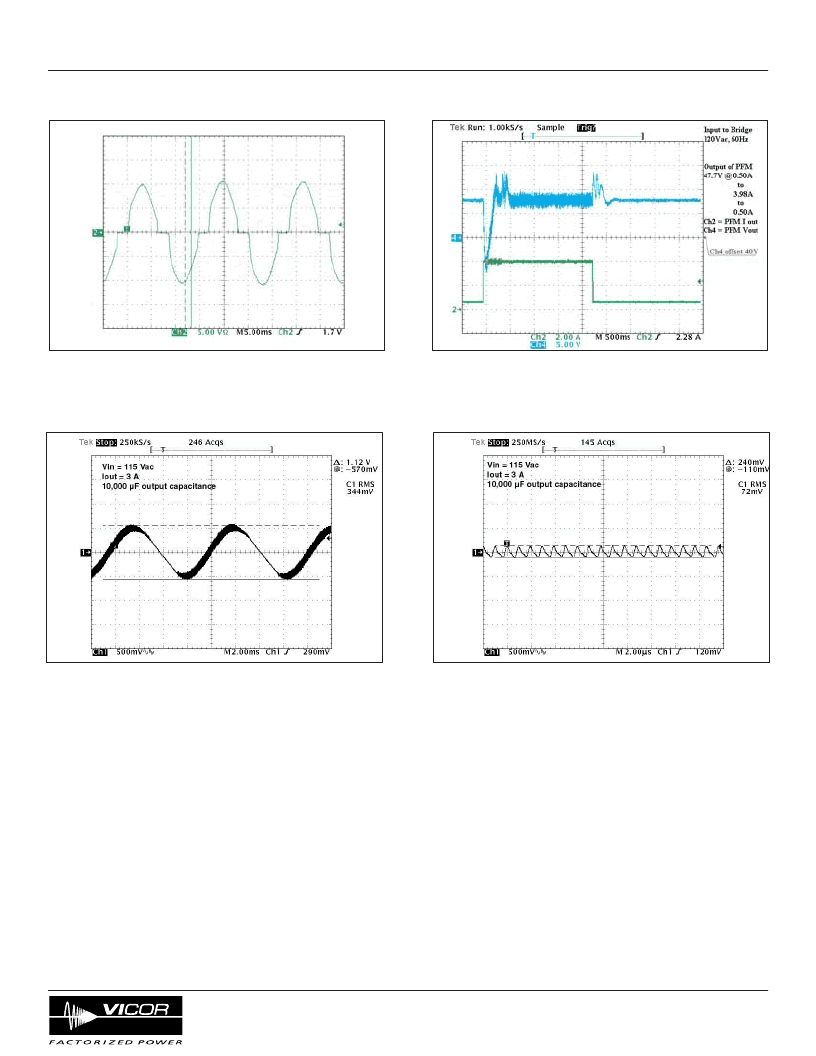

Figure 14
— Transient Response Input:120 Vac, 60 Hz
Output step load: 10% to 90% to 10%
Figure 13
— Typical Input Current (230 Vrms 200 W Out)
Electrical (cont.)
Figure 15
— Output Ripple (Line frequency)
Figure 16
— Output Ripple (Switching frequency)
