Rev. 1.1 (April 2012)
3
DLP Design, Inc.

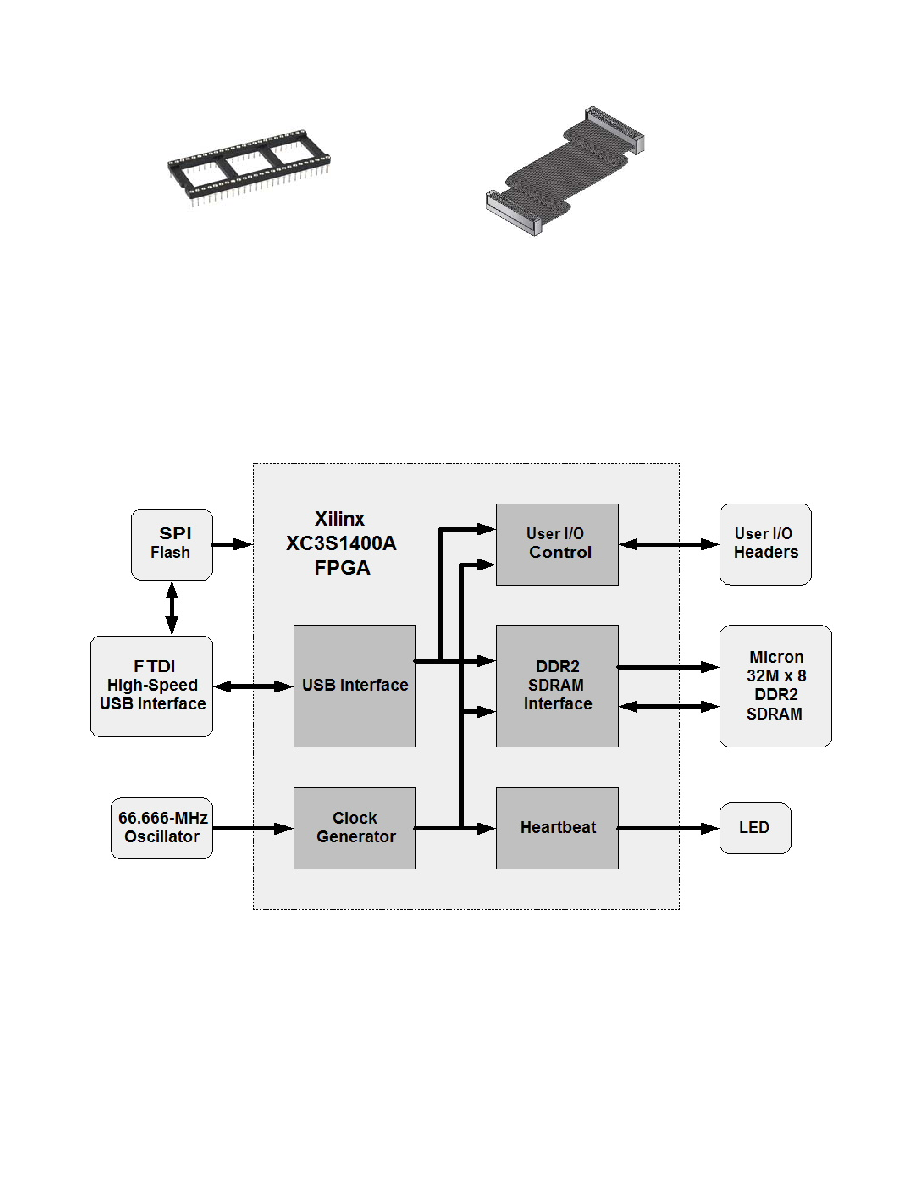

DIP Socket
Ribbon Cable
Other on-board features include a 32M x 8 DDR2 SDRAM memory IC for user projects and both
JTAG and SPI Flash interface ports for connection to Xilinx programming tools.
2.0 REFERENCE DESIGN
A 10,000-line reference design is available for the Spartan 3A FPGA on the DLP-HS-FPGA3 to
those who purchase the module. The design was written in VHDL and built using the free Xilinx
ISE WebPACK tools. The reference design consists of the following blocks:
It contains a USB Interface Block, a User I/0 Block, a DDR2 SDRAM interface, a Heartbeat Pulse
Generator and a Clock Generator. The SPI Flash is used to store the design’s FPGA configuration
file.
The USB interface captures, interprets and returns command and data information sent from the host
PC through the FTDI USB interface to the FPGA. Commands include Ping, Return Status, Loopback
Data, Set a User I/O Pin High or Low, Read a User I/O Pin, Initialize the DDR2 SDRAM Memory and
Read (from) or Write (to) the DDR2 SDRAM Memory. (Section 11 explains these in detail.)
