Philips Semiconductors
Product specification
Silicon Diffused Power Transistor
BUW14

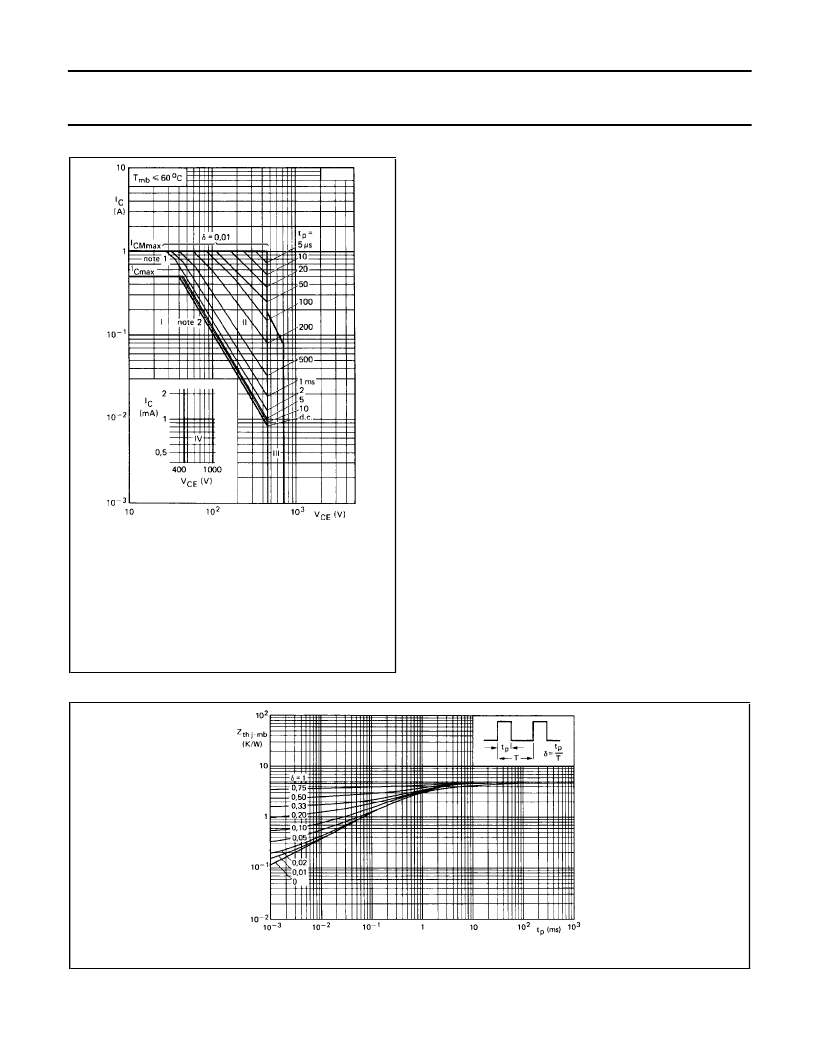

Fig.9. Forward bias safe operating area.
(1) P
max line.
(2) Second-breakdown limits.
I Region of permissible DC operation.
II Permissible extension for repetitive pulse
operation.
III Area of permissible operation during turn-on
in single transistor converters, provided
R
≤
100
and tp
≤
0.6
μ
s.
IV Repetitive pulse operation in this region is
permissible provided V
BE
≤
0 and tp
≤
2 ms.
Fig.10. Transient thermal impedance.
Z
th j-mb
= f(t); parameter
δ
= duty cycle.
March 1992
4
Rev 1.000
