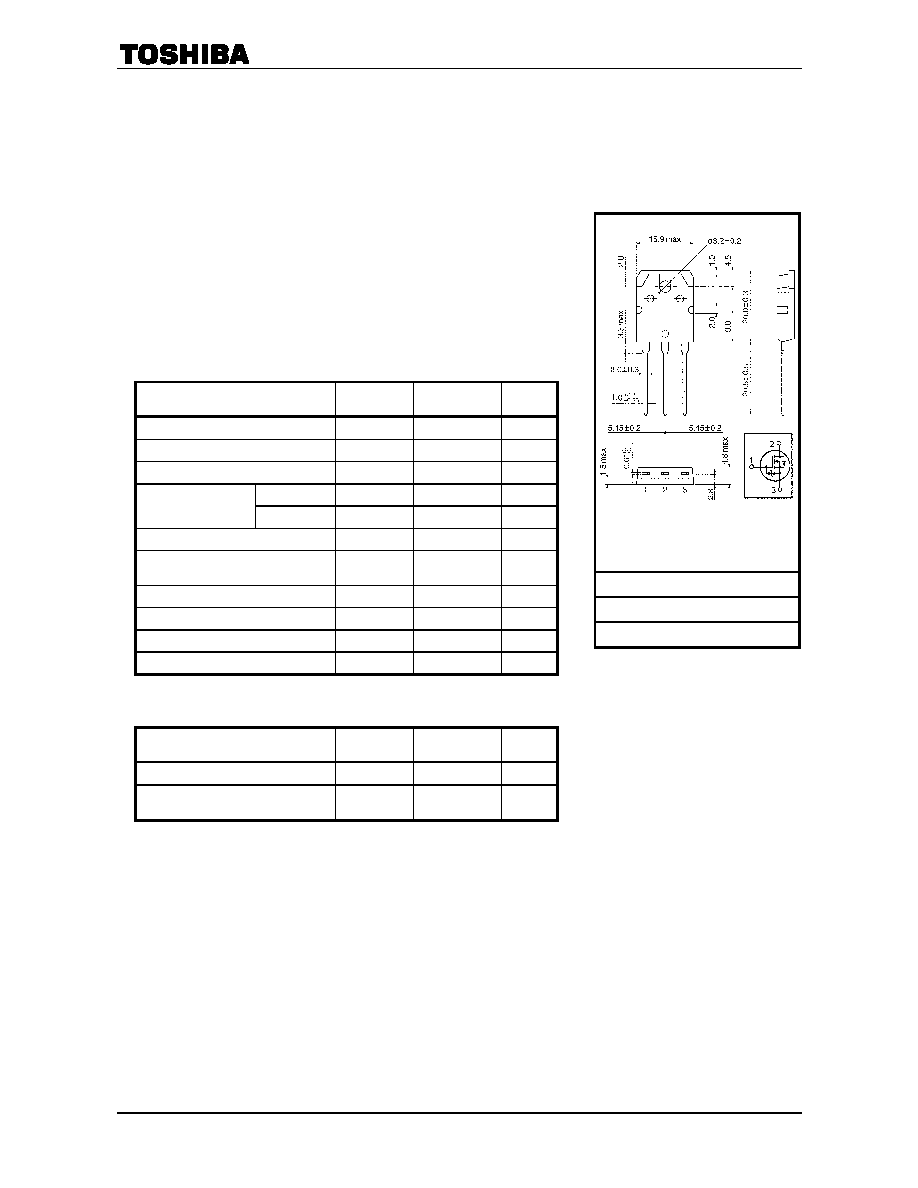

2SK2698
2004-07-06
1
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (πMOSV)
2SK2698
DCDC Converter, Relay Drive and Motor Drive
Applications
Low drainsource ON resistance
: RDS (ON) = 0.35 (typ.)
High forward transfer admittance
: |Yfs| = 11 S (typ.)
Low leakage current
: IDSS = 100 A (max) (VDS = 500 V)
Enhancement mode
: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA)
Maximum Ratings (Ta = 25°C)
Characteristics
Symbol
Rating
Unit
Drainsource voltage
VDSS
500
V
Draingate voltage (RGS = 20 k)
VDGR
500
V
Gatesource voltage
VGSS
±30
V
DC
(Note 1)
ID
15
A
Drain current
Pulse (Note 1)
IDP
60
A
Drain power dissipation (Tc = 25°C)
PD
150
W
Single pulse avalanche energy
(Note 2)
EAS
630
mJ
Avalanche current
IAR
15
A
Repetitive avalanche energy (Note 3)
EAR
15
mJ
Channel temperature
Tch
150
°C
Storage temperature range
Tstg
55~150
°C
Thermal Characteristics
Characteristics
Symbol
Max
Unit
Thermal resistance, channel to case
Rth (chc)
0.833
°C / W
Thermal resistance, channel to
ambient
Rth (cha)
50
°C / W
Note 1: Ensure that the channel temperature does not exceed 150°C.
Note 2: VDD = 90 V, Tch = 25°C (initial), L = 4.76 mH, RG = 25 , IAR = 15 A
Note 3: Repetitive rating: pulse width limited by maximum channel temperature
This transistor is an electrostatic-sensitive device.
Please handle with caution.
Unit: mm
1. GATE
2. DRAIN (HEAT SINK)
3. SOURCE
JEDEC
―
JEITA
―
TOSHIBA
2-16C1B
Weight: 4.6 g (typ.)
