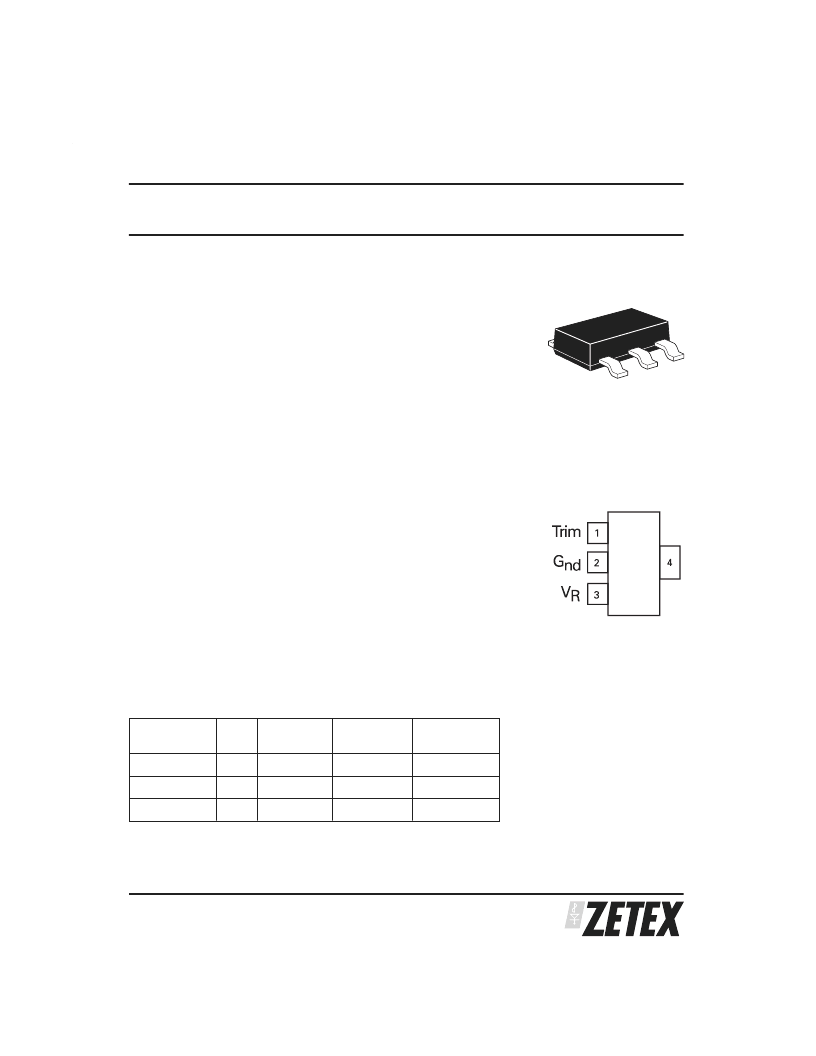

1
S E M IC O N D U C T O R S
DESCRIPTION
The ZRT100 is a monolithic integrated circuitproviding
a precise stable reference voltage of 9.8V at 500
μ
A.
The circuit features a knee current of 150
μ
A and
operation over a wide range of temperatures and
currents.
The ZRT100 is available in a SOT223 package for
surface mount applications. This device offers a trim
facility whereby the output voltage can be adjusted as
shown in Fig.1. This facility is used when
compensating for system errors or setting the
reference output to a particular value. When the trim
facility is notused,thepin shouldbeleftopencircuit.
FEATURES
Trimmable output
Excellent temperature stability
Low output noise figure
Available in two temperature ranges
1 and 2% initial voltage tolerance versions
available
No external stabilising capacitor required in most
cases
Low slope resistance
SOT223 small outline package
ZRT100
ISSUE 3 - DECEMBER 2003
9.8V LOW POWER PRECISION REFERENCE SOURCE
DEV ICE
TOL%
OPERATING
TEMP.
PACKAGE
PARTMARK
ZRT100GC2
2
-40 to 85°C
SOT223
ZRT100C2
ZRT100GC1
1
-40 to 85°C
SOT223
ZRT100C1
ZRT100GA1
1
-55 to 125°C
SOT223
ZRT100A1
ORDERING INFORMATION
A grade
C grade
-55°C to 125°C
-40°C to 85°C
SOT223
Package suffix G
Top view (pin 4 floating or
connected to pin 2)
SOT223
