January 2000 TOKO, Inc.
Page 3
TK15404

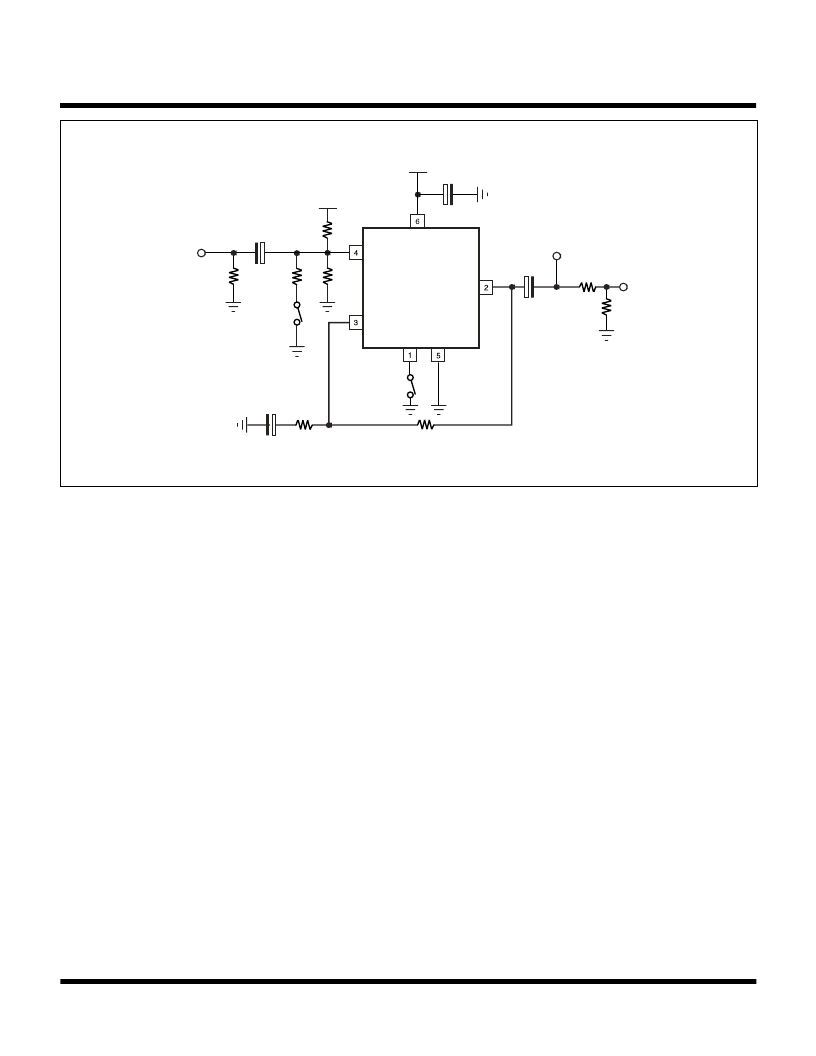

TEST CIRCUIT
75
+
33 μF
10 k
10 k
20 k
SW1
2 k
47 μF
75
SW1 is turned on
only when DG and
DP are measured.
VCC
+
VCC = 5.0 V
VCC
4.7 μF
+
75
Standby
GND
2 k
47 μF
+
-Input
+Input
Output
VOUT = 2.0 VP-P
TP1
TP2
TP3
MEASUREMENT METHOD
1. Supply Current (I
)
The Pin 6 current is measured with no input signal and the Standby Pin (Pin 1) open.
2. Standby Supply Current (I
)
The Pin 6 current is measured when the Standby Pin (Pin 1) is connected to ground.
3. Standby Terminal Current (I
)
The Pin 1 current is measured when Pin 1 is connected to ground.
4. Threshold Voltage (High to Low) (V
)
The Pin 1 voltage is measured at the point which changes the device from operating mode into standby mode.
5. Threshold Voltage (Low to High) (V
)
The Pin 1 voltage is measured at the point which changes the device from standby mode into operating mode.
6. Voltage Gain (GVA)
The voltage gain equation is as follows:
GVA = 20 log
V2/V1
Where V1 is the input voltage at TP1 and V2 is the measured output voltage at TP2.
7. Frequency Response (fr)
The frequency response equation is as follows:
fr = 20 log
V2/V1
Where V1 is the measured TP3 voltage when the TP1 input frequency is set to 1 MHz and V2 is the measured TP3 voltage
when the TP1 input frequency is set to 5 MHz. Furthermore, V1 is the measured TP3 voltage when the TP1 input frequency
is set to 1 MHz and V2 is the measured TP3 voltage when the TP1 input frequency is set to 10 MHz.
