June 1999 TOKO, Inc.
Page 7
TK15322

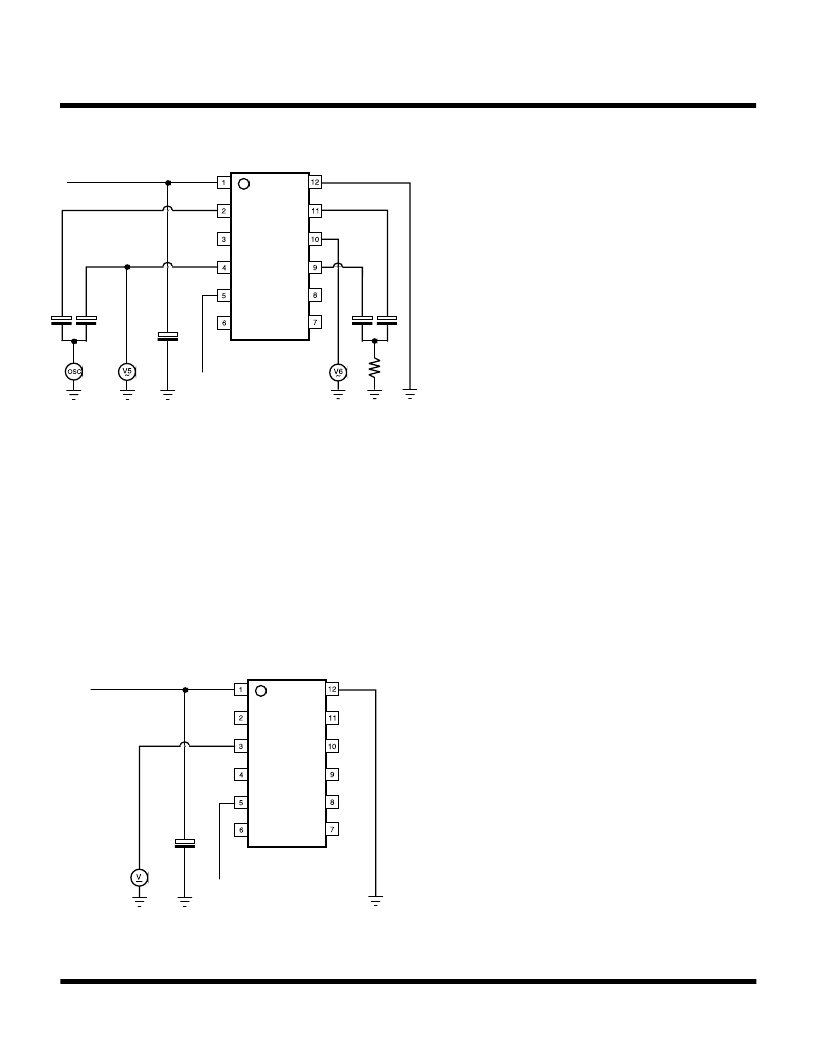

TEST CIRCUITS AND METHODS (CONT.)
OUTPUT TERMINAL DIFFERENCE
This is the DC output voltage difference between Ach and
Bch. This is calculated by using values measured at the
I/O Terminal Voltage.
Vcent = | (1 - Ach value) - (1 - Bch value) |
This value is the voltage difference of 1ch.
VCC
Cont.
+
+
+
10 K
+
+
VCC
Cont.
+
Figure 10
Figure 9
I/O TERMINAL VOLTAGE (FIGURE 10)
This is the DC voltage of input and output.
Because the input and the output are nearly equal, only the
output is measured.
1) Pin 5 is in the open condition, or low level.
2) Connect a DC volt meter to Pin 3 and measure.
This value is the terminal voltage of 1-Ach.
3) Next, connect Pin 5 to the V
CC
, or high level.
4) Measure in the same way.
This value is the terminal voltage of 1-Bch.
