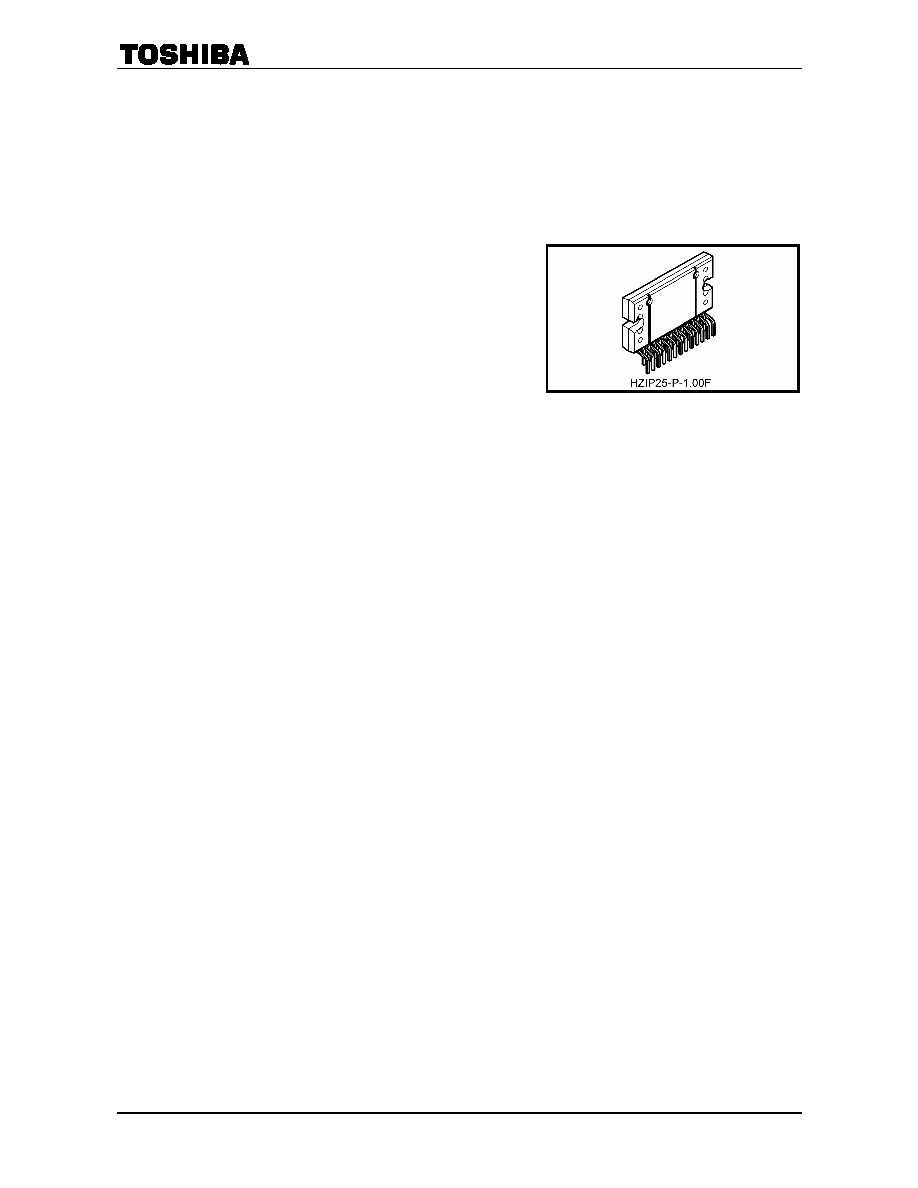

| 封裝： | 1 MM PITCH, PLASTIC, HZIP-25 |
| 文件頁數： | 1/40頁 |
| 文件大?。?/td> | 579K |
| 代理商： | TB2902HQ |
當前第1頁第2頁第3頁第4頁第5頁第6頁第7頁第8頁第9頁第10頁第11頁第12頁第13頁第14頁第15頁第16頁第17頁第18頁第19頁第20頁第21頁第22頁第23頁第24頁第25頁第26頁第27頁第28頁第29頁第30頁第31頁第32頁第33頁第34頁第35頁第36頁第37頁第38頁第39頁第40頁
TB2902HQ
2006-04-28
1
TOSHIBA Bi-CMOS Digital Integrated Circuit
Silicon Monolithic
TB2902HQ
Maximum Power 41 W BTL
× 4-ch Audio Power IC
The TB2902HQ is 4ch audio amplifier for car audio application.
This IC can generate high power, high quality sound output,
POUT MAX = 41 W, using a pure complementary P-ch and N-ch
DMOS output stage.
The built-in self diagnosis function which is included can be
controlled via I2C BUS.
In addition, mute function, and various Protection feature are
included.
Features
High power output
: POUT MAX (1) = 41 W (typ.)
(VCC = 14.4 V, f = 1 kHz, JEITA max, RL = 4 )
: POUT MAX (2) = 37 W (typ.)
(VCC = 13.7 V, f = 1 kHz, JEITA max, RL = 4 )
: POUT MAX (3) = 70 W (typ.)
(VCC = 14.4 V, f = 1 kHz, JEITA max, RL = 2 )
: POUT (1) = 27 W (typ.)
(VCC = 14.4 V, f = 1 kHz, THD = 10%, RL = 4 )
: POUT (2) = 23 W (typ.)
(VCC = 13.2 V, f = 1 kHz, THD = 10%, RL = 4 )
: POUT (3) = 45 W (typ.)
(VCC = 14.4 V, f = 1 kHz, THD = 10%, RL = 2 )
Low distortion ratio: THD = 0.015% (typ.)
(VCC = 13.2 V, f = 1 kHz, POUT = 5 W, RL = 4 )
Low noise: VNO = 90 Vrms (typ.)
(VCC = 13.2 V, Rg = 0 , BW = 20 Hz to 20 kHz, RL = 4 )
Built in stand by & muting function: controlled via I2C Bus (pin 16)
Built in clipping detection (pin 4)
Built in I2C Bus for stand-by, mute, voltage gain control, self diagnosis: Output short detection, offset detection,
tweeter or speaker open detection (pin 22 and 25)
Built-in various protection circuits (Note 1, Note 2)
Thermal shut down, over-voltage, out to GND, out to VCC, out to out short circuit
Operating supply voltage: VCC (opr) = 9 to 18 V (RL = 4 )
VCC (opr) = 9 to 16 V (RL = 2 )
Note 1: Install the product correctly. Otherwise, it may result in break down, damage and/or degradation to the
product or equipment.
Note 2: These protection functions are intended to avoid some output short circuits or other abnormal conditions
temporarily. These protect functions do not warrant to prevent the IC from being damaged.
- In case of the product would be operated with exceeded guaranteed operating ranges, these protection
features may not operate and some output short circuits may result in the IC being damaged.
Weight: 7.7 g (typ.)
