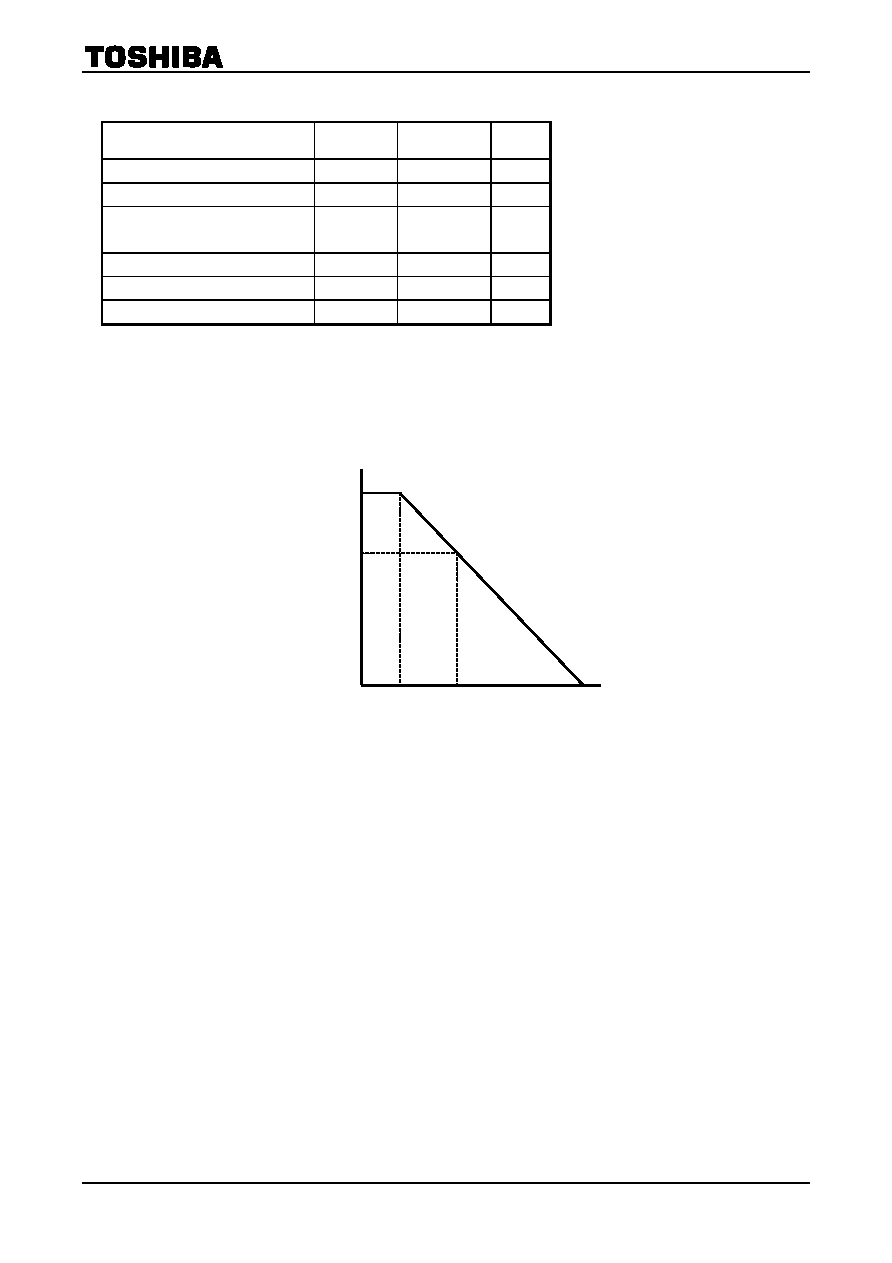

TA1276AFG
2002-04-01
22
Maximum Ratings (Ta
==== 25°C)
Characteristics
Symbol
Rating
Unit
Supply voltage
VCCmax
12
V
Input terminal voltage
einmax
9
Vp-p
Power dissipation
PD
(Note 3)
2500
mW
Power dissipation reduction rate
1/
θja
20.0
mW/°C
Operating temperature
Topr
20 to 70
°C
Storage temperature
Tstg
55 to 150
°C
Note 3: Refer to the figure below. (with device mounted on a PCB whose dimensions are 114.3 mm
76.2 mm
× 1.6 mm and whose surface is 20% copper.
mount the device on a PCB of at least these dimensions and whose surface is at
least 20% copper.)
Note 4: Short pins 9 and 10 together on the PCB.
Figure 1
Power Dissipation Reduction Against Higher Temperature
2500
150
25
70
1600
P
o
wer
dissi
pati
on
P
D
(mW
)
Ambient temperature
Ta
(°C)
