參數資料
型號： SCH500-6
廠商： PANDUIT CORP
元件分類： 終端
英文描述： COPPER ALLOY, WIRE TERMINAL
文件頁數： 1/1頁
文件大?。?/td> 964K
代理商： SCH500-6

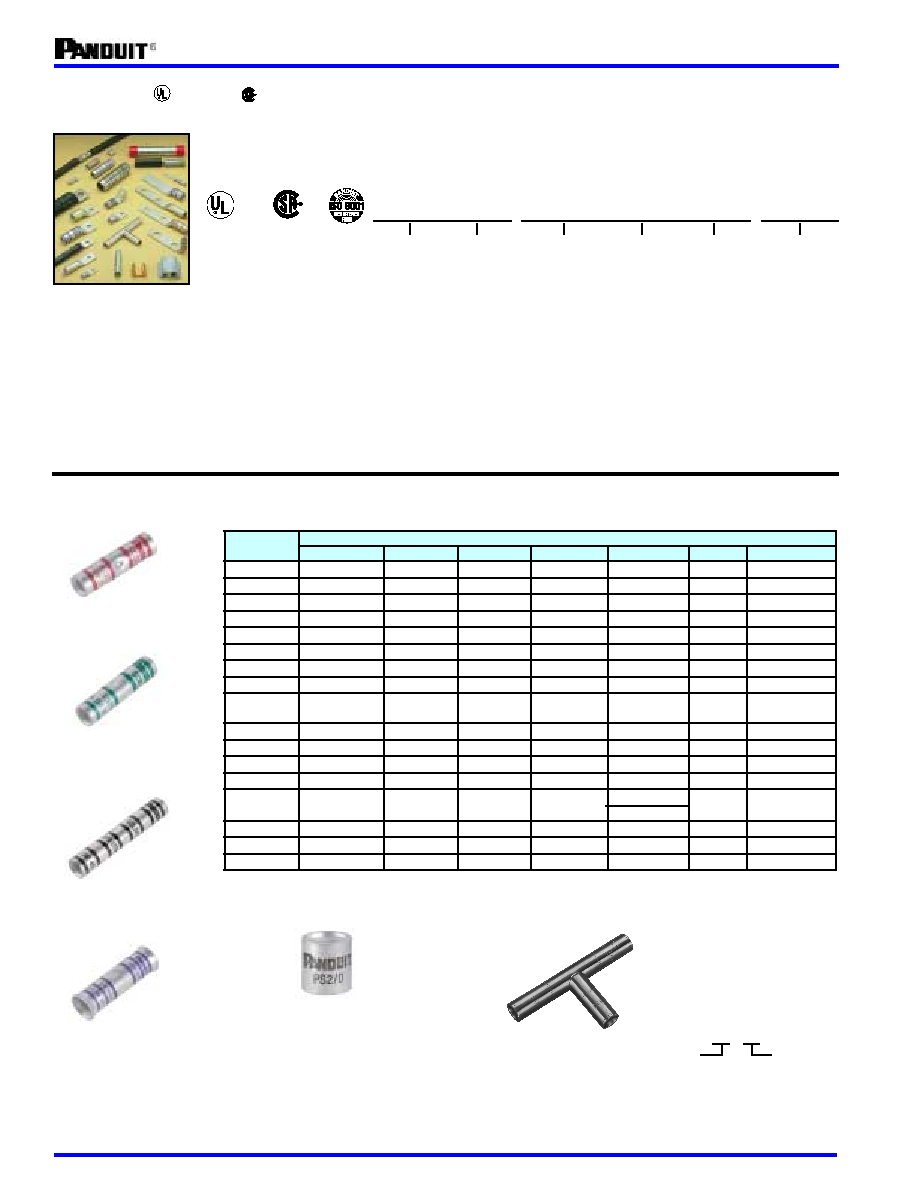

40
Power Connectors
Permanent compression crimp
Generous beveled wire entry
Color coded
Eliminates need for periodic
inspection or maintenance as
found in mechanical connectors
Quick easy wire insertion
Easy identification of proper die
and number of crimps
UL listed per 486A up to 35KV*
COMPRESSION CONNECTORS
F
P
O
CERTIFIED
LISTED
Part Number System (Example) For Compression Connectors
LCD
2/0
–
38
D
F
–
X
Part
Designation
Conductor
Size
Bolt Hole Size
Designation
2 Bolt Hole
Spacing*
Tongue
Shape
Std.Pkg.Siz e
Designation
10 = #10
14 = 1/ 4"
56 = 5/16"
38 = 3/ 8"
12 = 1/ 2"
58 = 5/ 8"
34 = 3/ 4"
78 = 7/ 8"
1 = 1"
00 = Blank
Tongue*
A = .625"
B = .750"
C = . 875"
D = 1.00"
E = 1.25"
No Letter =
1. 75"
H = 45
o
Angle
F = 90
o
Angle
No Letter =
Straight
1 = 1
2 = 2
3 = 3
5 = 5
6 = 6
X = 10
E = 20
Q = 25
L = 50
*Consult cable manufacturer for voltage stress
relief instr uctions for applications gr eater than
2000 volts.
Short Barrel Butt Splice –
Type SCSS
Standard Barrel
Butt Splice –
Type SCS
Long Barrel Butt Splice –
Type SCL
(Type SCH Corona Relief)
Parallel Splice –
Type PS
Designed to accept mult iple
conductors
Can be used for pigt ailing
For Installation On Copper Conductors
Internal wire stops to prevent over insertion of cable
Conductor
Size
Type
SCSS
SCS
SCL
SCH
SCSF*
PS
SCT
#8 AWG
SCSS8-L
SCS8-L
SCL8-L
—
SCSF8-L
PS8-L
—
#6 AWG
SCSS6-L
SCS6-L
SCL6-L
SCH6-L
SCSF6-L
PS6-L
—
#4 AWG
SCSS4-L
SCS4-L
SCL4-L
SCH4-L
SCSF4-L
PS4-L
—
#2 AWG
SCSS2-Q
SCS2-Q
SCL2-Q
SCH2-Q
SCSF2-E
PS2-Q
SCT2-2
#1 AWG
SCSS1-Q
SCS1-E
SCL1-E
SCH1-E
SCSF1-X
PS1-E
—
#1/0 AWG
SCSS1/0-X
SCS1/0-X
SCL1/0-X
SCH1/0-X
SCSF1/0-X PS1/0-X SCT1/0-1/0
#2/0 AWG
SCSS2/0-X
SCS2/0-X
SCL2/0-X
SCH2/0-X
SCSF2/0-X PS2/0-X SCT2/0-2/0
#3/0 AWG
SCSS3/0-X
SCS3/0-X
SCL3/0-X
SCH3/0-X
SCSF3/0-X PS3/0-X
—
#4/0 AWG
SCSS4/0-X
SCS4/0-X
SCL4/0-X
SCH4/0-X
SCSF4/0-X PS4/0-X SCT4/0-1/0
SCT4/0-4/0
250 MCM
SCSS250-X SCS250-X SCL250-X SCH250-X SCSF250-X
—
SCT250-250
300 MCM
—
SCS300-X SCL300-X SCH300-X SCSF300-X
—
SCT300-300
350 MCM
—
SCS350-X SCL350-X SCH350-X SCSF350-X
—
SCT350-350
400 MCM
—
SCS400-6 SCL400-6
——
—
500 MCM
—
SCS500-6 SCL500-6 SCH500-6
—
SCT500-4/0
SCT500-500
—
600 MCM
—
SCS600-6 SCL600-6
——
—
750 MCM
—
SCS750-6 SCL750-6 SCH750-6
——
—
1000 MCM
—
SCS1000-3 SCL1000-3 SCH1000-3
——
—
* Class K&M and Locomot ive Flex Cable; K&M cable size not available for #8 AWG
Note:
(EX.) SCT4/0 - 1/0
Run
Tap
PKG Qty: 1
“T” Splice – Type SCT
When installed with
PANDUIT or industry-
standard tools.
Provides a means of
connecting to the run
conductor and
creating a
perpendicular tap
Flared Barrel Copper
Butt Splice –
Type SCSF
PAN DUIT offers the permanence and total reliability of compression connectors or the versatility and reusability of mechanical
connectors with
Listed and
Certified products. Designs to meet ever y application in sizes #14AWG thr u 1000 MCM. All
PAN DUIT connectors have design and constr uction features which provide maximum dependability and lowest total installed cost.
COPPER BUTT SPLICES
Ex: LCD Lug. Copper ,
Two Hole Standar d Barr el
