1/3
LASER DIODES
electronic components
OL5200N
OL5200N
1.55
m
m Laser-Diode DIP Module
GENERAL DESCRIPTION
The OL5200N is a 1.55
μ
m, InGaAsP/InP laser-diode DIP module with a single-mode fiber
pigtail. This module is an optimal light source for high-capacity long-haul optical transmission
systems.
FEATURES
High output power
Single-mode fiber
Hermetically-sealed,14-pin Dual-In-line Package (DIP)
Includes thermoelectric cooler and monitor photodiode for temperature and power control
APPLICATIONS
Line transmission systems
Subscriber loops
Optical measuring instruments

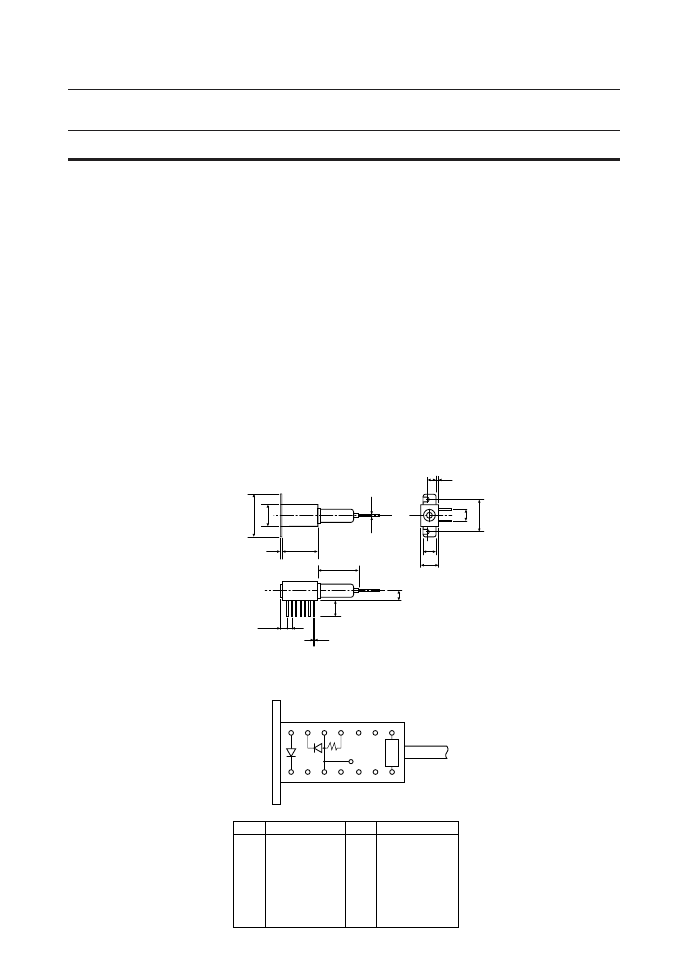

PACKAGE DIMENSIONS (Unit: mm)
OL5200N
E2V0018-37-X1
#8
#14
(–)
#7
#1
C
CASE
THERMISTOR
LD
PD
FIBER
TERMINAL CONNECTION
(BOTTOM VIEW)
(+)
PIN No.
1
2
3
4
5
FUNCTION
COOLER ANODE
NC
NC
NC
LD ANODE,
CASE GROUND
and THERMISTOR
NC
PD CATHODE
PIN No.
8
9
10
FUNCTION
PD ANODE
LD CATHODE
LD ANODE,
CASE GROUND
and THERMISTOR
THERMISTOR
NC
NC
COOLER CATHODE
6
7
11
12
13
14
2
1
1.0
20.8
f
0
24
5
3.8
2.54
7.1
9
7
1
5
1
f
0.45
6
