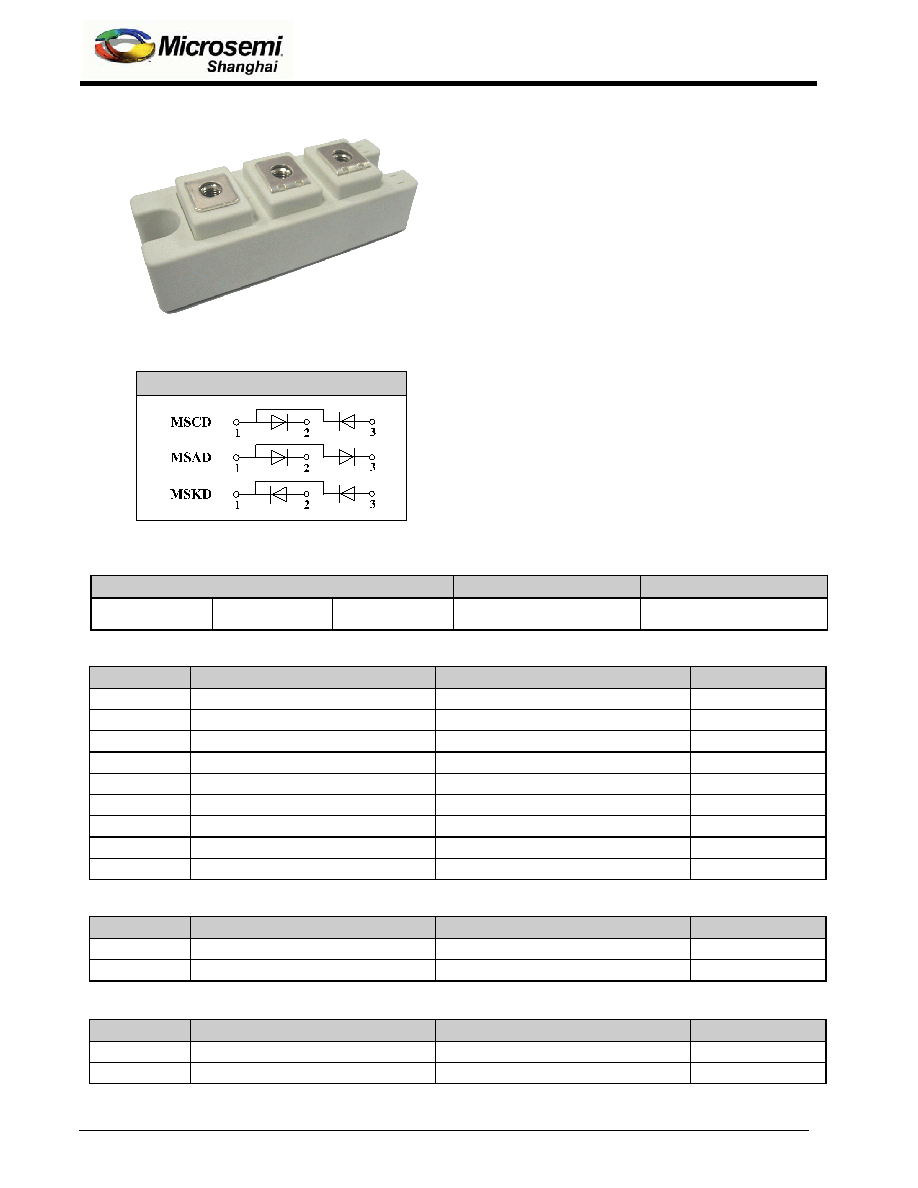

MSKD200_MSAD200_MSCD200-16-Rev 0
www.microsemi.com
May, 2009
1/3
MSKD200-16 MSAD200-16
MSCD200-16
Module Type
TYPE
VRRM
VRSM
MSCD200-16
MSAD200-16
MSKD200-16
1600V
1700V
Maximum Ratings
Symbol
Conditions
Values
Units
IFAV
Tc=100
℃
200
A
IFSM
t=10mS Tvj =45
℃
6800
A
i2t
t=10mS Tvj =45
℃
231200
A2s
Visol
a.c.50Hz;r.m.s.;1min
3000
V
Tvj
-40 to 150
℃
Tstg
-40 to 125
℃
Mt
To terminals(M6)
5±15%
Nm
Ms
To heatsink(M6)
5±15%
Nm
Weight
Module
160
g
Thermal Characteristics
Symbol
Conditions
Values
Units
Rth(j-c)
Per diode
0.21
℃/W
Rth(c-s)
Module
0.05
℃/W
Electrical Characteristics
Circuit
Applications
Non-controllable rectifiers for AC/AC
converters
Line rectifiers for transistorized AC motor
controllers
Field supply for DC motors
Features
Blocking voltage: 1600V
Heat transfer through aluminum oxide ceramic
isolated metal baseplate
Glass passivated chip
Glass Passivated Rectifier
Diode Modules
VRRM 1600V
IFAV
200 Amp
Symbol
Conditions
Values
Units
VFM
T=25
℃ IFM =300A
1.3
V
IRD
Tvj=TvjM VRD=VRRM
≤9
mA
