型號： MS3476L8-33P
廠商： AMPHENOL CORP
元件分類： MIL系列連接器
英文描述： 3 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, CRIMP, PLUG
文件頁數： 1/1頁
文件大?。?/td> 38K
代理商： MS3476L8-33P
7
A Max. Typ.
Master Keyway
B
K Max.
Typ.
.290 Min. Full Thread
.190
.130
Grommet Extension
C
Dia.
1.405 Max
Shell 8 Thru 18
1.465 Max.
Shell 20, 22, & 24
E
F
H Accessory
Thread
3 Teeth Equally
Spaced 120 Apart
D Dia. Max.
Grommet
Blue Color Band
J Mounting Thread
Lockwire Hole 3-Places
Equally Spaced
Receptacle Shell, Jam Nut Mount,
Bayonet Coupling
Military No. MS3474
Amphenol/Matrix No. MB14
To complete order number see how to order, page 14.
Shell
Size
A
Max.
B
±.005
C Dia.
±.003
D Dia.
Max.
E
F
H
Accessory Thread
Class 2A
J
Mounting Thread
Class 2A
K
Max.
8
.954
.525
.471
.305
.707/.658
.113/.086
.5000-20 UNF
.5625-24 UNEF
.767
10
1.078
.650
.588
.405
.707/.658
.113/.086
.6250-24 UNF
.6875-24 UNEF
.892
12
1.266
.813
.748
.531
.707/.658
.113/.086
.7500-20 UNEF
.8750-20 UNEF
1.079
14
1.391
.937
.873
.665
.707/.658
.113/.086
.8750-20 UNEF
1.0000-20 UNEF
1.205
16
1.516
1.061
.998
.790
.707/.658
.113/.086
1.0000-20 UNEF
1.1250-18 UNEF
1.329
18
1.641
1.186
1.123
.869
.707/.658
.113/.086
1.0625-18 UNEF
1.2500-18 UNEF
1.455
20
1.828
1.311
1.248
.994
.772/.721
.148/.096
1.1875-18 UNEF
1.3750-18 UNEF
1.579
22
1.954
1.436
1.373
1.119
.772/.721
.148/.096
1.3125-18 UNEF
1.5000-18 UNEF
1.705
24
2.078
1.561
1.498
1.244
.772/.721
.148/.096
1.4375-18 UNEF
1.6250-18 UNEF
1.829

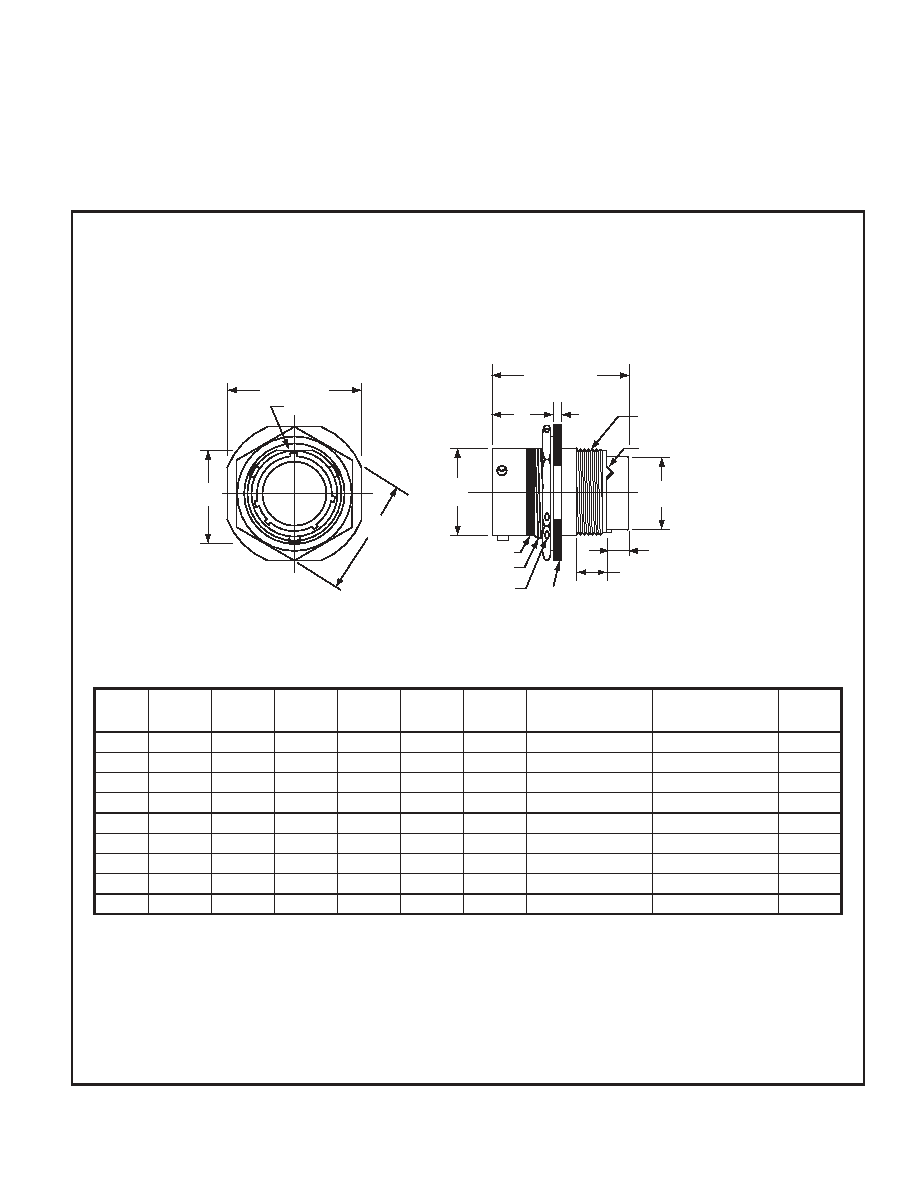

Miniature Cylindrical MIL-C-26482, Series 2
MS3474
jam nut receptacle
