參數資料
| 型號： | MM1567 |
| 廠商： | MITSUMI ELECTRIC CO LTD |
| 元件分類： | 消費家電 |
| 英文描述： | Video Signal Driver for DVD Players Monolithic IC |
| 中文描述： | SPECIALTY CONSUMER CIRCUIT, PDSO34 |
| 封裝： | SSOP-34 |
| 文件頁數： | 6/13頁 |
| 文件大?。?/td> | 133K |
| 代理商： | MM1567 |

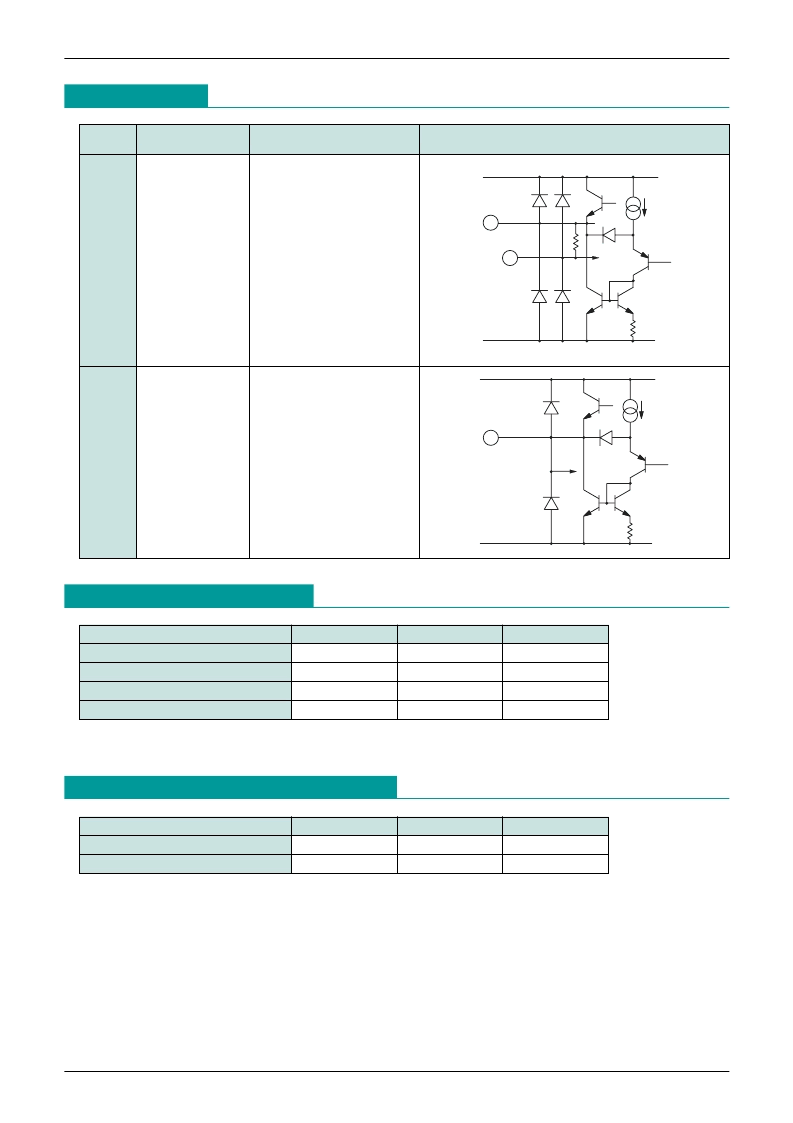

MITSUMI
Video Signal Driver for DVD Players MM1567
Pin Description
Pin No.
Pin name
Function
Internal equivalent circuit diagram
18
21
24
27
30
Cr
OUT
Cb
OUT
CY
OUT
Y
OUT
V
OUT
Signal output
19
22
25
28
31
33
CrSAG
CbSAG
CYSAG
YSAG
VSAG
C
OUT
SAG correction
GND
V
CC
2
18
21
24
27
30
19
22
25
28
31
Croma output
GND
V
CC
33
Recommended Operating Conditions
Absolute Maximam Ratings
(Ta=25°C)
Item
Symbol
T
STG
T
OPR
V
CC
max.
Pd
Rating
–65 ~ +150
–40 ~ +85
7
1.4
Unit
°C
°C
V
W
Storage temparature
Operating temparature
Supply Voltage
Power dissipation *1
note *1 Board mounting power dissipation. Board size 100mmX100mmX1.6mm
Item
Symbol
T
OPR
V
CCOP
Rating
–40 ~ +85
4.5 ~ 5.5
Unit
°C
V
Operating temparature
Operating Voltage
