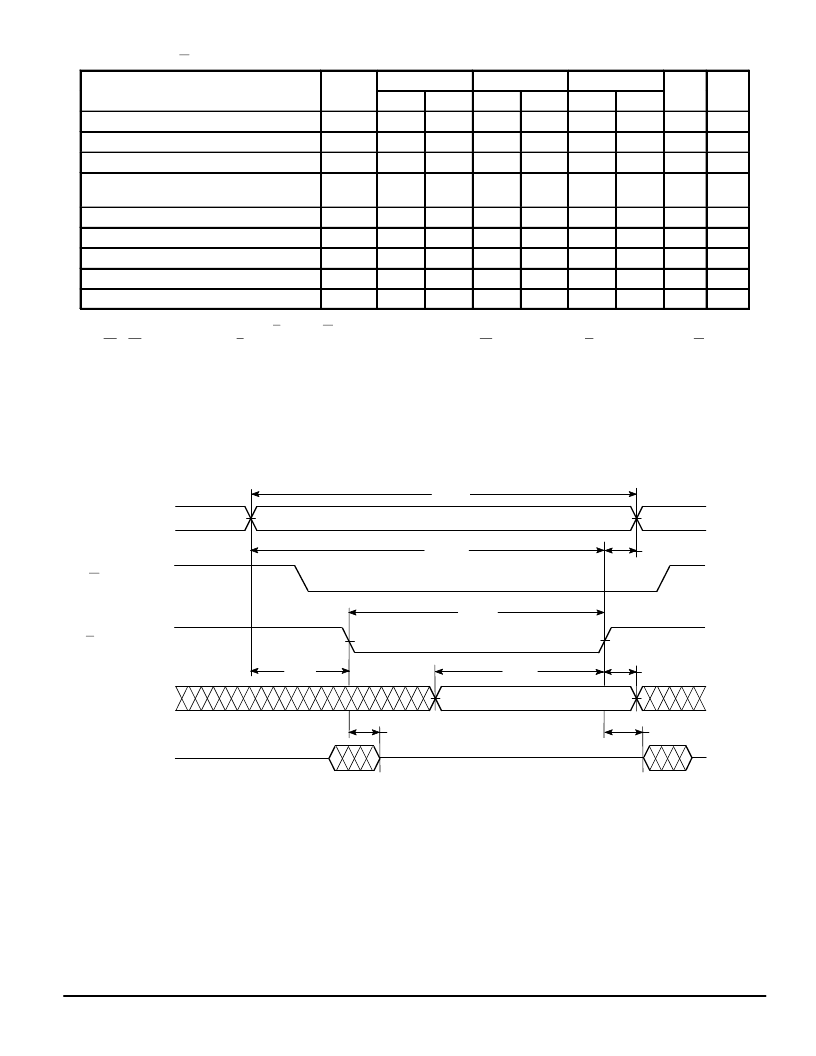

MCM32257B
6–6
MOTOROLA FAST SRAM
WRITE CYCLE 1
(W Controlled, See Notes 1 and 2)
MCM32257B–15
MCM32257B–20
MCM32257B–25
Parameter
Symbol
Min
Max
Min
Max
Min
Max
Unit
Notes
Write Cycle Time
tAVAV
tAVWL
tAVWH
tWLWH,
tWLEH
15
—
20
—
25
—
ns
3
Address Setup Time
0
—
0
—
0
—
ns
Address Valid to End of Write
12
—
15
—
17
—
ns
Write Pulse Width
12
—
15
—
17
—
ns
Data Valid to End of Write
tDVWH
tWHDX
tWLQZ
tWHQX
tWHAX
7
—
8
—
10
—
ns
Data Hold Time
0
—
0
—
0
—
ns
Write Low to Data High–Z
0
6
0
7
0
8
ns
4,5,6
Write High to Output Active
5
—
5
—
5
—
ns
4,5,6
Write Recovery Time
0
—
0
—
0
—
ns
NOTES:
1. A write occurs during the overlap of E low and W low.
2. E1 – E4 are represented by E in these timing specifications, any combination of Exs may be asserted. G is a don‘t care when W is low.
3. All write cycle timing is referenced from the last valid address to the first transitioning address.
4. Transition is measured
±
500 mV from steady–state voltage with load of Figure 1B.
5. This parameter is sampled and not 100% tested.
6. At any given voltage and temperature, tWLQZ max is less than tWHQX min both for a given device and from device to device.
WRITE CYCLE 1
DATA VALID
HIGH–Z
HIGH–Z
tAVAV
tAVWH
tWHAX
tWHDX
tWHQX
tWLWH
tAVWL
tDVWH
tWLQZ
A (ADDRESS)
Ex (BYTE ENABLE)
W (WRITE ENABLE)
D (DATA IN)
Q (DATA OUT)
