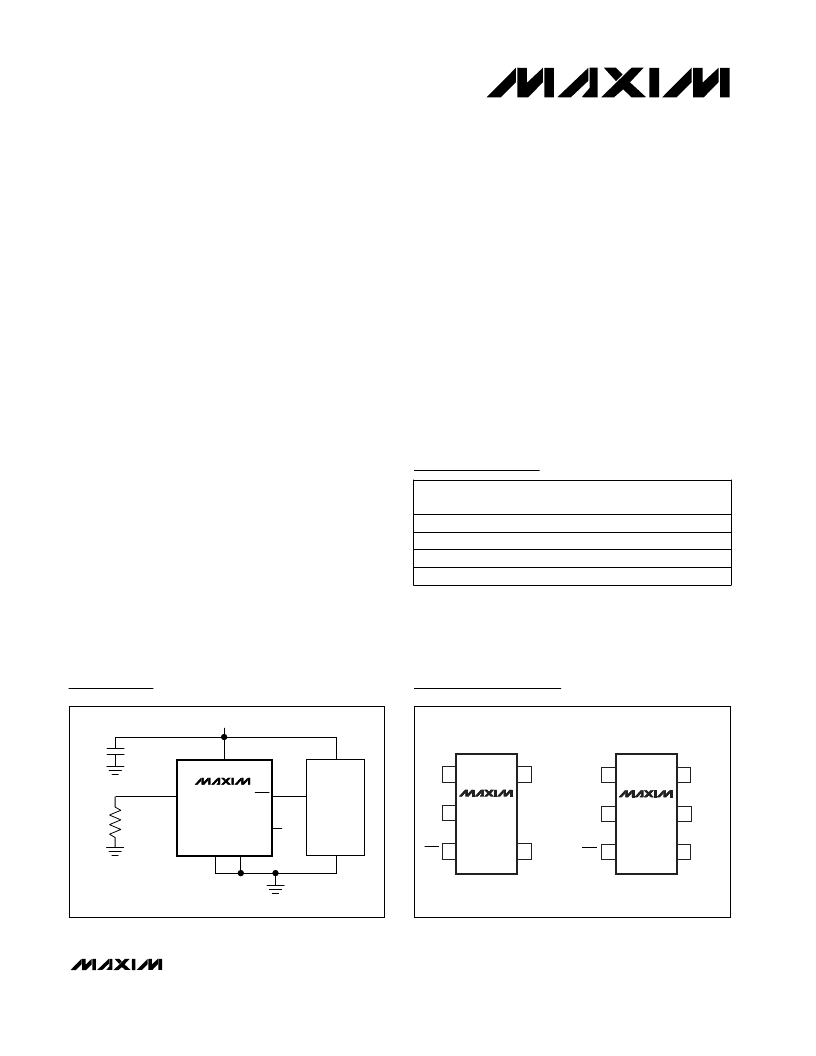

M
Resistor-Programmable
SOT Temperature Switches
________________________________________________________________
Maxim Integrated Products
1
19-1617; Rev 0; 1/00
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800.
For small orders, phone 1-800-835-8769.
________________General Description
The MAX6509/MAX6510 are fully integrated, resistor-
programmable temperature switches with thresholds
set by an external resistor. They require only one exter-
nal resistor to set the temperature threshold within a
wide -40°C to +125°C temperature range. The MAX6509
provides an open-drain output. The MAX6510 features
three selectable output options: active-low, active-high,
and open drain with an internal pull-up resistor.
These switches operate with a +2.7V to +5.5V single
supply while providing a temperature threshold accura-
cy of ±0.5°C (typ) or ±4.0°C (max). They typically con-
sume 32μA supply current. Hysteresis is pin selectable
to 2°C or 10°C.
The MAX6509/MAX6510 are available in 5-pin and 6-pin
SOT23 packages, respectively.
________________________Applications
μP Temperature Monitoring in High-Speed
Computers
Temperature Control
Temperature Alarms
Fan Control
Automotive Applications
____________________________Features
o
±0.5°C Threshold Accuracy
o
±4.0°C (max) Threshold Accuracy (-40°C to +125°C)
o
Temperature Threshold Set by a 1% External
Resistor
o
Set-Hot or Set-Cold Option
o
Low 32μA Supply Current
o
Open-Drain, Push-Pull Outputs;
Open-Drain with Internal Pull-Up Resistor
o
Pin-Selectable 2°C or 10°C Hysteresis
o
SOT23 Packages
Ordering Information
Pin Configurations
Typical Operating Circuit
Note:
A 2500 pc. minimum is required for SOT packages.
*
See Table 1 for selectable output options.
GND
V
CC
OUT
1
5
SET
MAX6509
SOT23-5
TOP VIEW
2
3
4
GND
HYST
OUT, OUT
HYST
1
6
V
CC
OUTSET
SET
MAX6510
SOT23-6
2
3
4
5
GND
( ) ARE FOR MAX6510.
+2.7V TO +5.5V
HYST
GND
(OUTSET)
INT
GND
μ
P
0.1
μ
F
V
CC
V
CC
SET
R
SET
OUT
(OUT)
MAX6509
MAX6510
TOP
MARK
ADNT
ADNU
AAHA
AAHB
6 SOT23-6
-40°C to +125°C
MAX6510CAUT-T*
5 SOT23-5
6 SOT23-6
-40°C to +125°C
-40°C to +125°C
MAX6509CAUK-T
MAX6510
HAUT-T*
5 SOT23-5
PIN-
PACKAGE
TEMP. RANGE
-40°C to +125°C
MAX6509
HAUK-T
PART
