M87C257
Device operation

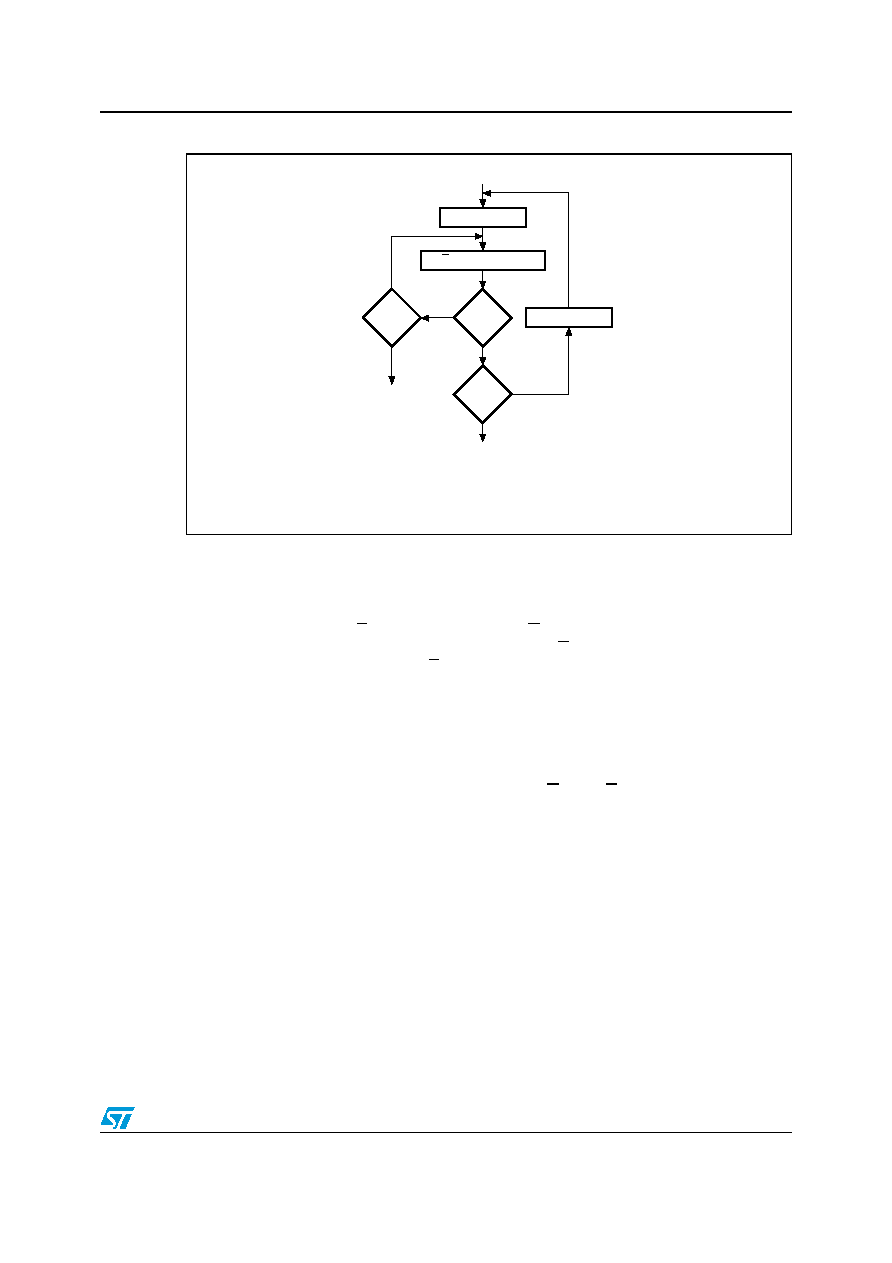

Figure 4.
Programming flowchart
2.7
Program Inhibit
Programming of multiple M87C257s in parallel with different data is also easily
accomplished. Except for E, all like inputs including G of the parallel M87C257 may be
common. A TTL low level pulse applied to a M87C257's E input, with VPP at 12.75V, will
program that M87C257. A high level E input inhibits the other M87C257s from being
programmed.
2.8
Program Verify
A verify (read) should be performed on the programmed bits to determine that they were
correctly programmed. The verify is accomplished with G at VIL, E at VIH, VPP at 12.75V and
VCC at 6.25V.
AI00760B
n = 0
Last
Addr
VERIFY
E = 100
s Pulse
++n
= 25
++ Addr
VCC = 6.25V, VPP = 12.75V
FAIL
CHECK ALL BYTES
1st: VCC = 6V
2nd: VCC = 4.2V
YES
NO
YES
NO
YES
NO
