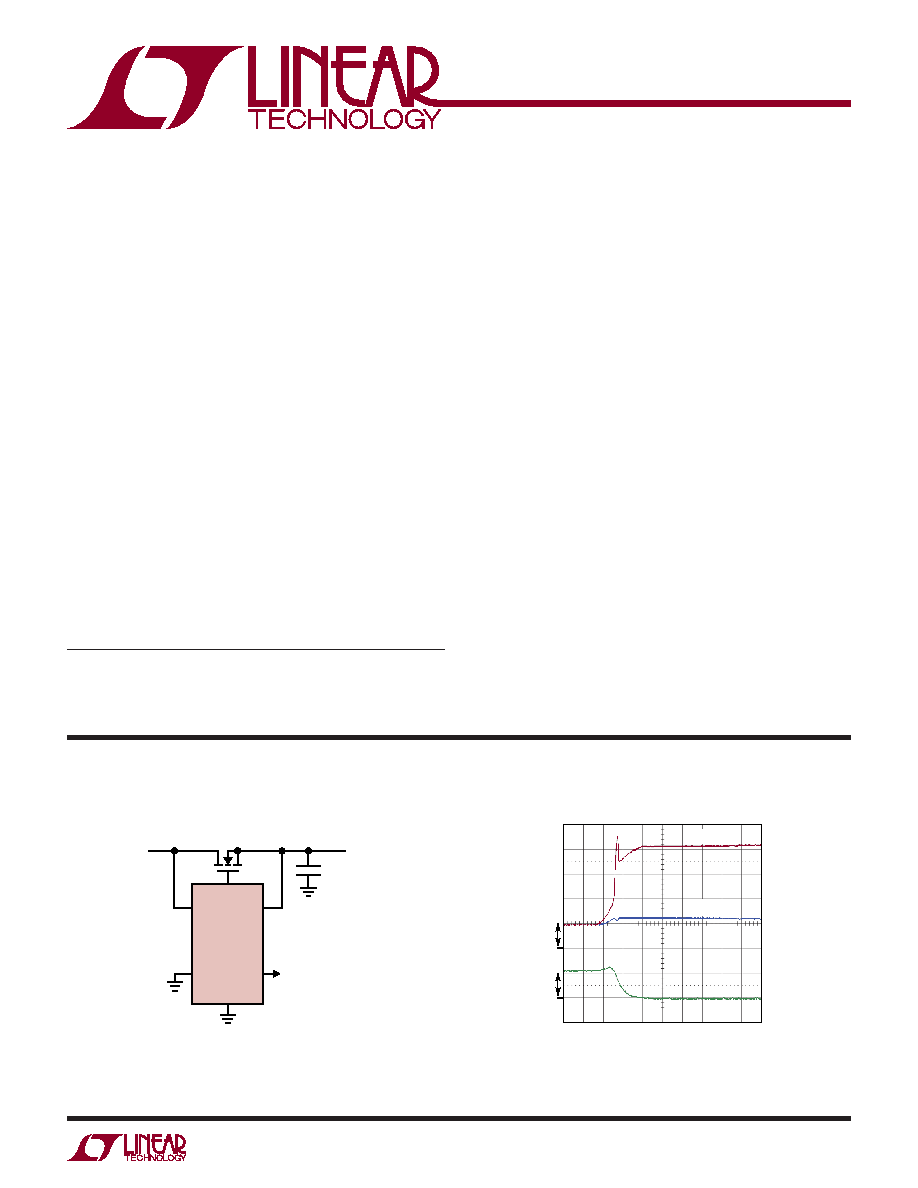

LTC4360-1/LTC4360-2
1
436012fa
TYPICAL APPLICATION
DESCRIPTION
Overvoltage Protection
Controller
TheLTC4360overvoltageprotectioncontrollersafeguards
2.5V to 5.5V systems from power supply overvoltage. It is
designed for portable devices with multiple power supply
options including wall adaptors, car battery adaptors and
USB ports.
The LTC4360 controls an external N-channel MOSFET in
series with the input power supply. During overvoltage
transients, the LTC4360 turns off the MOSFET within 1s,
isolating downstream components from the input supply.
Inductive cable transients are absorbed by the MOSFET
and load capacitance. In most applications, the LTC4360
provides protection from transients up to 80V without
requiring transient voltage suppressors or other external
components.
TheLTC4360hasadelayedstart-upandanadjustabledV/dt
ramp-upforinrushcurrentlimiting.APWRGDpinprovides
power good monitoring for VIN. Following an overvolt-
age condition, the LTC4360 automatically restarts with a
start-up delay. The LTC4360-1 features a soft shutdown
controlled by the ON pin, while the LTC4360-2 controls an
optional external P-channel MOSFET for negative voltage
protection.
Output Protected from Overvoltage at Input
FEATURES
APPLICATIONS
n
2.5V to 5.5V Operation
n
Overvoltage Protection Up to 80V
n
No Input Capacitor or TVS Required for Most
Applications
n
2% Accurate 5.8V Overvoltage Threshold
n
<1s Overvoltage Turn-Off, Gentle Shutdown
n
Controls N-Channel MOSFET
n
Adjustable Power-Up dV/dt Limits Inrush
n
Reverse Voltage Protection (LTC4360-2)
n
Power Good Output
n
Low Current Shutdown (LTC4360-1)
n
Available in a Tiny 8-Lead SC70 Package
n
USB Protection
n
Handheld Computers
n
Cell/Smart Phones
n
MP3/MP4 Players
n
Digital Cameras
GATE
Si1470DH
IN
436012 TA01a
VOUT
5V
1.5A
VIN
5V
LTC4360-1
ON
OUT
PWRGD
GND
COUT
Protection from Overvoltage
VGATE
10V/DIV
VIN, VOUT
5V/DIV
0.5s/DIV
436012 TA01b
Si1470DH
COUT = 10F
VOUT
VIN
L
, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
ThinSOT, PowerPath, How Swap and No RSENSE are trademarks of Linear Technology
Corporation. All other trademarks are the property of their respective owners.
