LTC3869/LTC3869-2
19
3869f
APPLICATIONS INFORMATION
Output Voltage Tracking
The LTC3869 allows the user to program how its output
ramps up and down by means of the TK/SS pins. Through
these pins, the output can be set up to either coincidentally
or ratiometrically track another supply’s output, as shown
in Figure 5. In the following discussions, VOUT1 refers to
the LTC3869’s output 1 as a master channel and VOUT2
refers to the LTC3869’s output 2 as a slave channel. In
practice, though, either phase can be used as the master.
To implement the coincident tracking in Figure 5a, con-
nect an additional resistive divider to VOUT1 and connect
its midpoint to the TK/SS pin of the slave channel. The
ratio of this divider should be the same as that of the
slave channel’s feedback divider shown in Figure 6a. In
this tracking mode, VOUT1 must be set higher than VOUT2.
To implement the ratiometric tracking in Figure 6b, the
ratio of the VOUT2 divider should be exactly the same as
the master channel’s feedback divider shown in Figure 6b.
By selecting different resistors, the LTC3869 can achieve
different modes of tracking including the two in Figure 5.
So which mode should be programmed? While either
mode in Figure 5 satisfies most practical applications,
some tradeoffs exist. The ratiometric mode saves a pair
of resistors, but the coincident mode offers better output
regulation.
When the master channel’s output experiences dynamic
excursion (under load transient, for example), the slave
channel output will be affected as well. For better output
regulation, use the coincident tracking mode instead of
ratiometric.

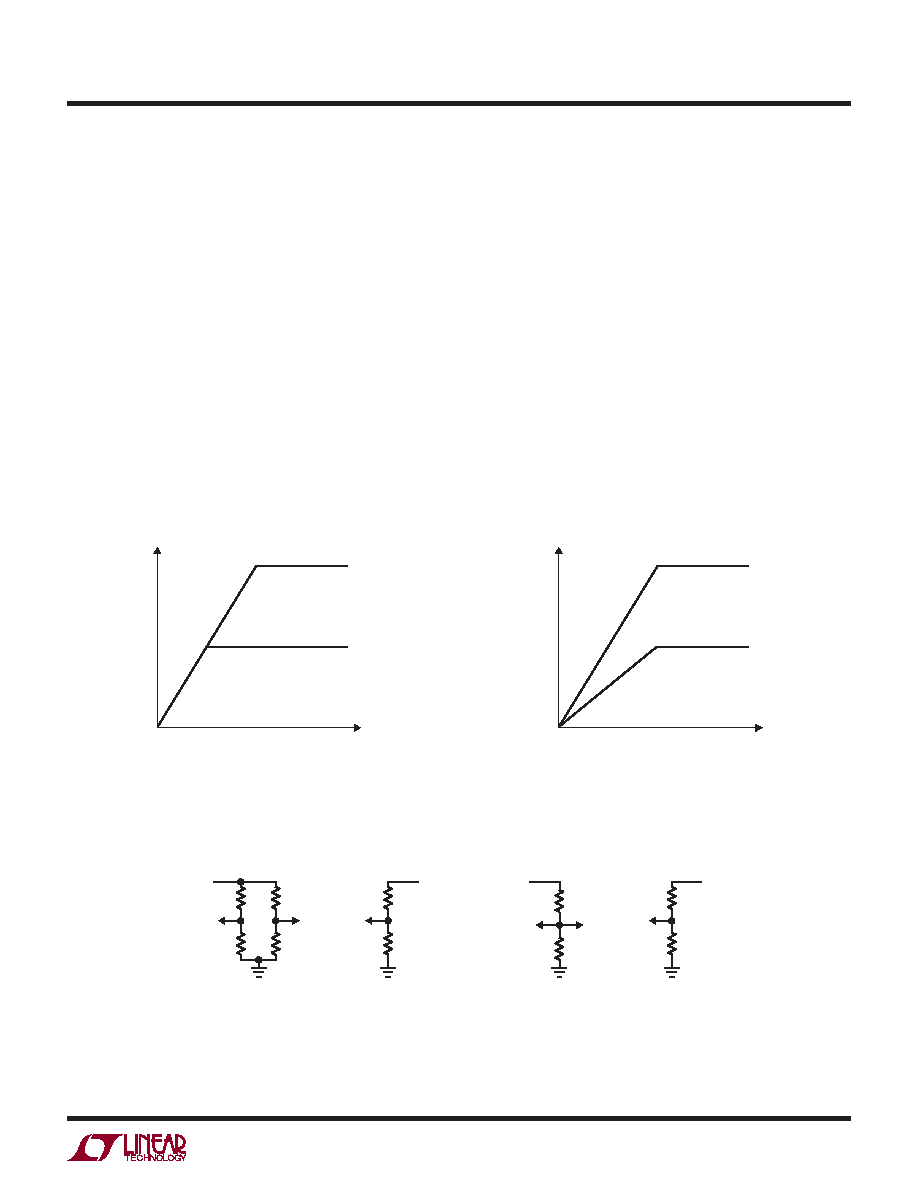

Figure 5. Two Different Modes of Output Voltage Tracking
Figure 6. Setup for Coincident and Ratiometric Tracking
TIME
(5a) Coincident Tracking
VOUT1
VOUT2
OUTPUT
VOLTAGE
3869 F05a
VOUT1
VOUT2
TIME
3869 F08b
(5b) Ratiometric Tracking
OUTPUT
VOLTAGE
R3
R1
R4
R2
R3
VOUT2
R4
(6a) Coincident Tracking Setup
TO
VFB1
PIN
TO
TK/SS2
PIN
TO
VFB2
PIN
VOUT1
R1
R2
R3
VOUT2
R4
3869 F09
(6b) Ratiometric Tracking Setup
TO
VFB1
PIN
TO
TK/SS2
PIN
TO
VFB2
PIN
VOUT1
